I/O section (far right)
The primary system I/O panel has three slots (shown below) for fitting standard 8-way
cards as used on the DL451 Modular I/O and DL351 Modular I/O units. This gives a
maximum of 24 inputs and 24 outputs, provided the appropriate cards are fitted.

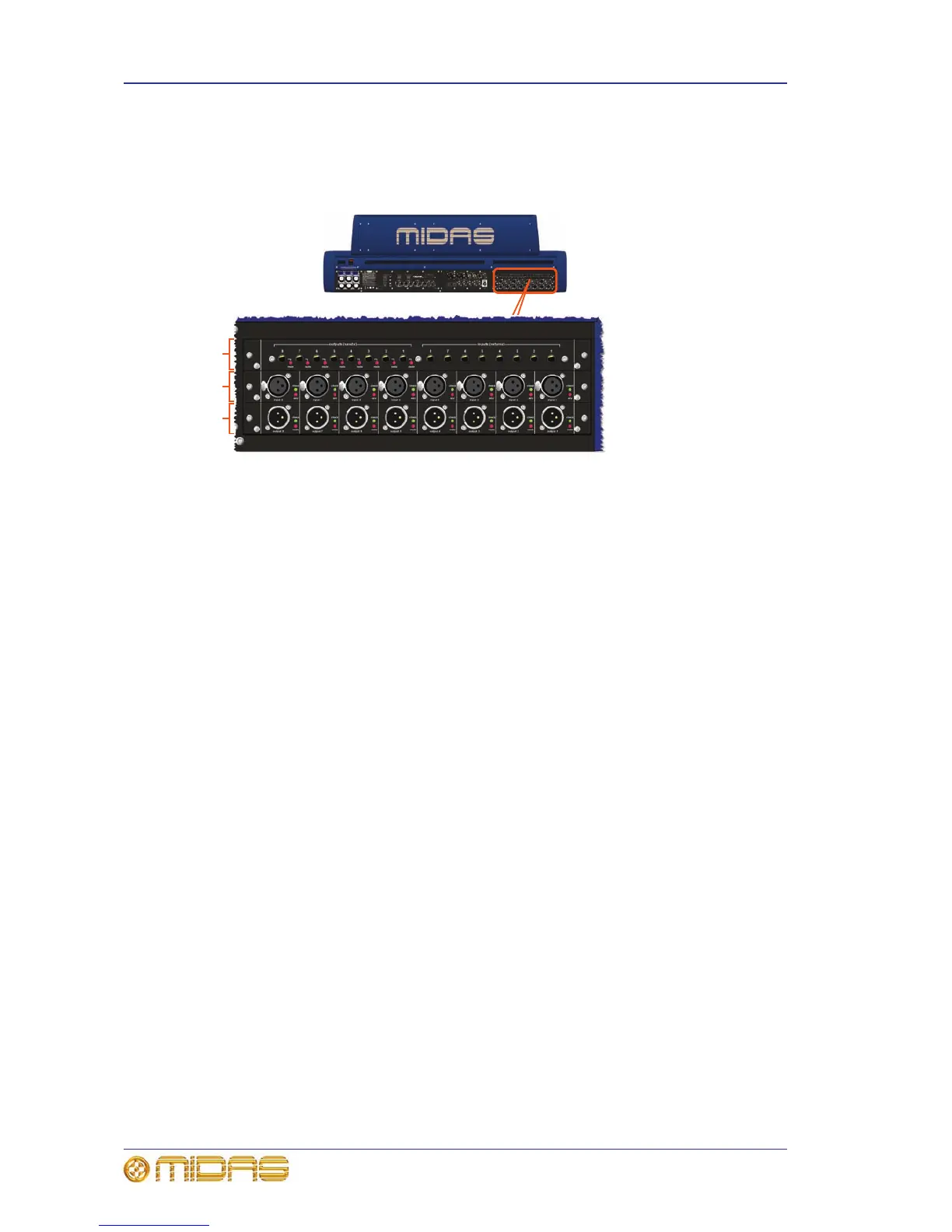

Typical modular I/O section on the rear panel of a PRO Series Control Centre
For information on the I/O modules, see Appendix E "I/O Modules" on page 379.
