Midas PRO SERIES User Manual

Rear panel connections 275
PRO Series Live Audio Systems
Owner’s Manual
snake X and snake Y sections
This section houses the ‘snake’ ports that connect the PRO Series Control Centre to the
stage. (The snakes supplied are dependent on PRO Series type.)

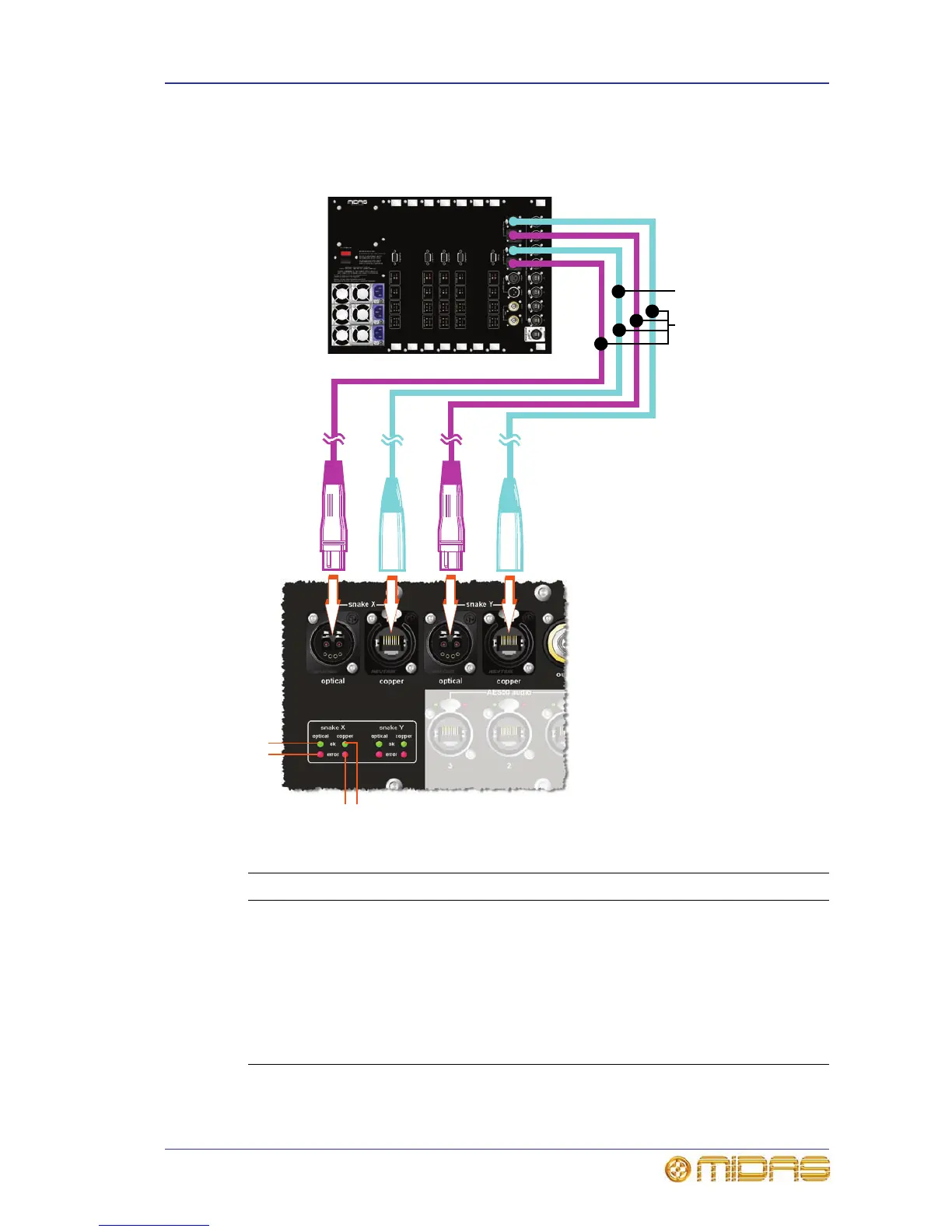

Snake interconnections for the PRO Series Control Centres
Item Description
1 Fibre optic ‘snake’ (cable) connectors, with OpticalCon® sockets. These are
HyperMac, 192-wide, bi-directional digital audio ports.
2 Copper ‘snake’ (cable), with EtherCon® connectors. These are Gigabit,
HyperMac, 192-wide, bi-directional digital audio ports.
3 ok LED (green) for both the optical/copper X and Y snakes. Pulsates when
the link is synchronised between the router and end point.
4 error LED (red) for both the optical/copper X and Y snakes. Illuminates
when either no communications or a fault are detected.
Rear of DL371 DSP unit
Rear panel of PRO Series Control Centre
3
4
4
3
11
22
PRO3
PRO6 and PRO9

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
