The following four sections in the Monitors screen allow you to patch the solo system
signals.
• talkback input
• pfl direct input
• afl direct input left
• afl direct input right
For routing details, see Table 25 “Navigating to the Patching screen” on page 418.
Signal generator
The signal generator section can output to pink noise (pink noise generator) or sine
wave tone (sinusoidal oscillator), and connect to the internal and external talk buses.

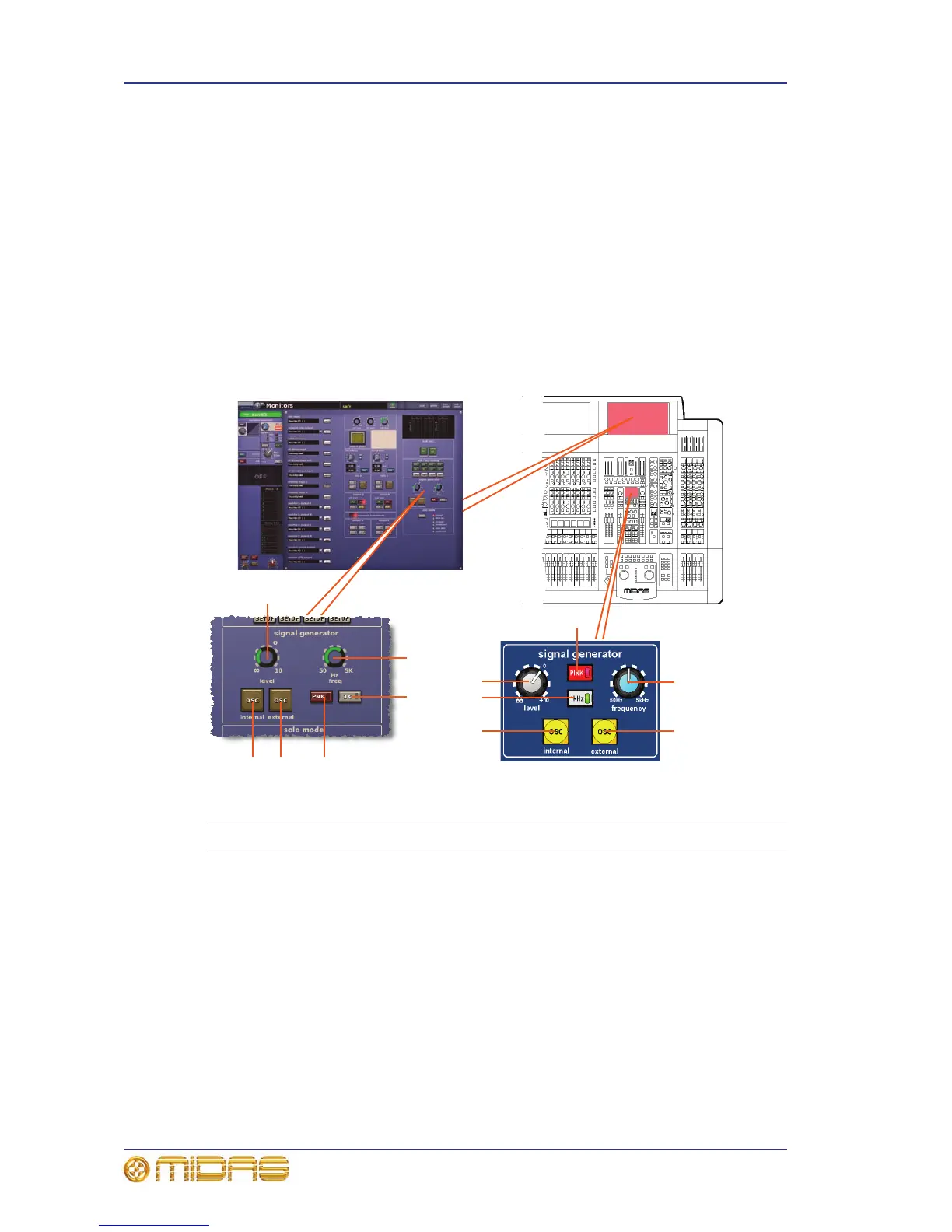

Signal generator controls on the control surface and GUI
Item Element Description
1 frequency/[freq]
control knob
Gives continuous adjustment of the sinusoidal
oscillator frequency from 50Hz to 5kHz.
2 1kHz/[1K] switch Overrides the swept frequency control (item 1) and
provides a fixed 1kHz tone.
3 PINK switch Overrides the sinusoidal oscillator and converts
output signal to pink noise.
4 OSC switch This OSC external switch connects signal generator
output to talk external output XLR.
1
2
345
6
1
45
2
6
3
