Common device elements

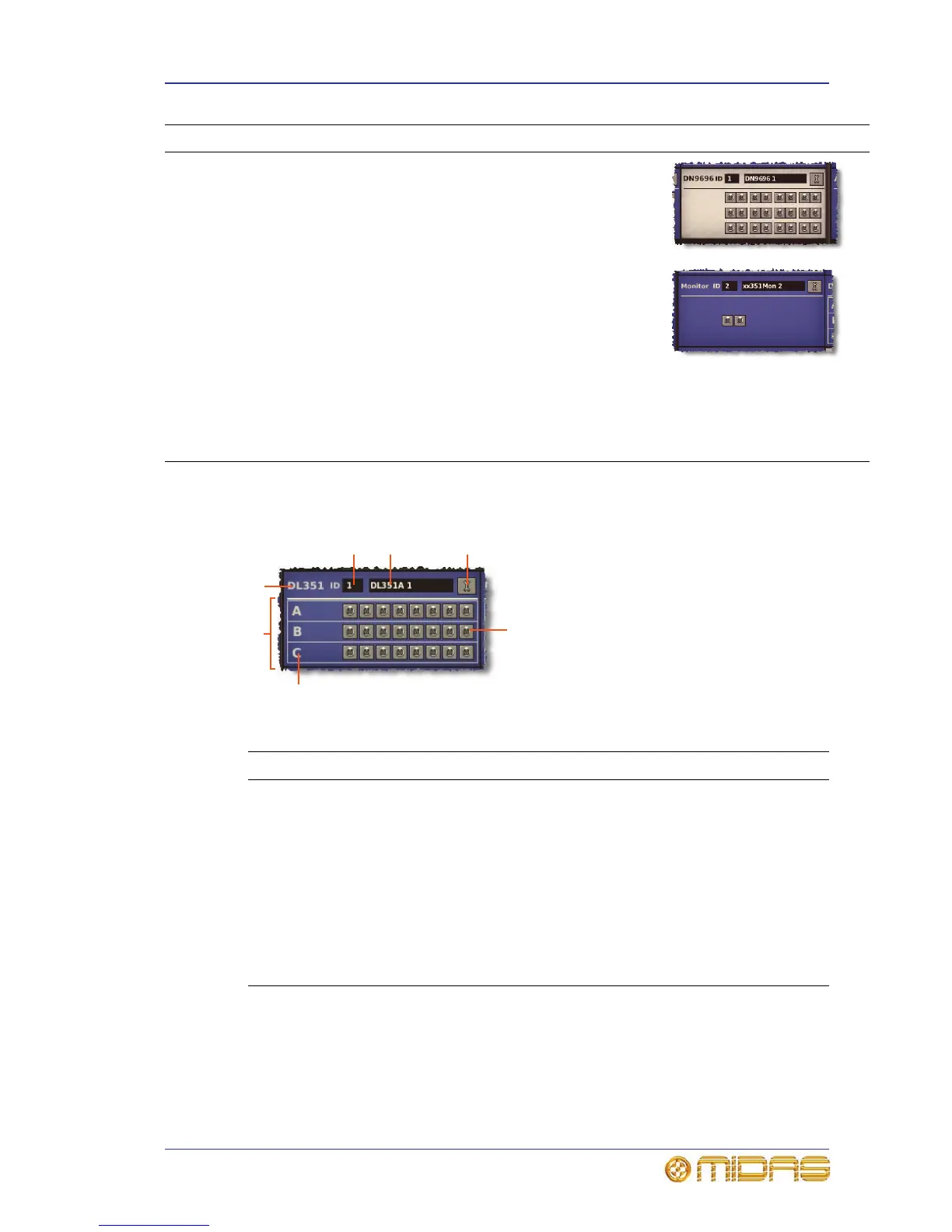

The device images have certain common elements in their layout, as shown below.
A typical device
DN9696 DN9696 Use up to four of these devices (with IDs
1 to 4) to represent the four AES50 ports
for up to 96 channels of recording/
playback. For more information on this
unit, refer to its help manual (part
number DOC02-DN9696HM).
Monitor N/A This device represents the control
surface monitor input and output XLRs.
These are also shown on the Mon. tabs
of the Patching screen, that is, the Talk
Input Source and Talkback Input
Source in the From section and all of
those shown in the To section.
Normally, these are always connected to
the above patch connectors on the Mon.
tabs. However, LFE and centre can be
used as assignable outputs if surround
monitoring is not required.
Item Description
1 Unit type.
2 Unit ID number.
3 Unit name and PRO Series Live Audio System-assigned unit number.
4 ‘Spanner’ button, opens the device configuration window (see “Configuring
the devices” on page 89).
5 Patch connector.
6 Patch connector area. (The line I/O device shows the three module card
slots, A, B and C.)
7 Module slot reference.
