3 Click a non-control area within one of the sections (for
example, dir in) to open the configuration processing area
in the GUI channel strip.
4 Click MODE repeatedly to scroll through the mix modes
(mix, group and mix minus) to select the one you want.
Group mode is fader only with no pre-fader, and in mix
minus mode all buses are initially routed — you have to turn
a bus routing switch on to take it out of the mix. Stereo mix
mode — with mix selected and LINK button on — is only
accessed from the odd numbered output channel of the
linked pair. In stereo mix mode the top control knob
becomes pan adjust and the bottom one adjusts level.
When creating a stereo mix, you can use either the odd or
even output to link the two channels, but the mode of the
odd channel is used on both.
>> To set up a mono aux mix
1 Making sure that the mix bus is not linked, select mix (see “To
select the mix bus mode” on page 106).
2 Select the input channel (see “To select an input channel” on
page 62).

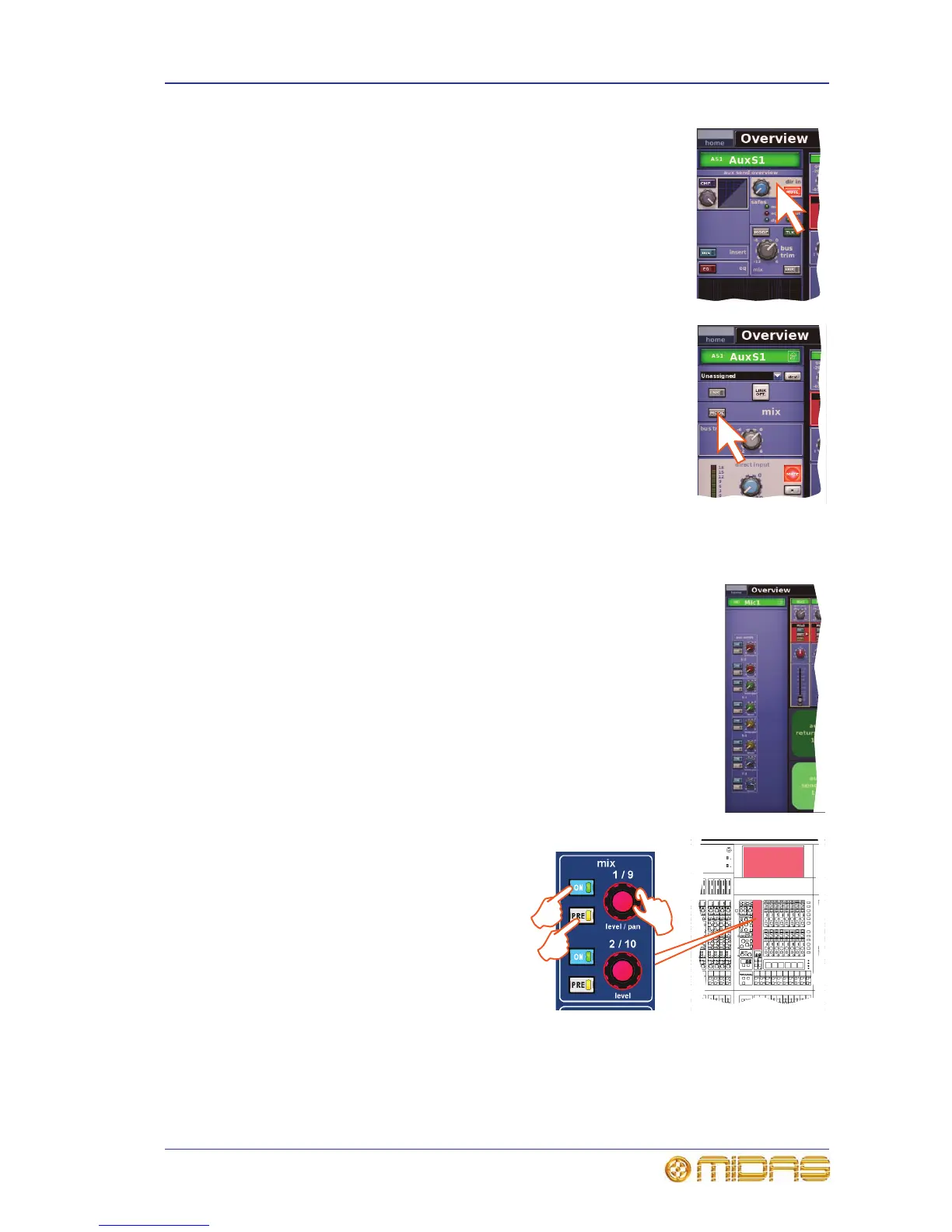

3 At the GUI, click within the appropriate sends section (aux or
matrices) in the overview display (see Figure 17 on page 106) to
open its processing area.
4 In the mix (upper) section, do the
following:
a Press PRE to select pre-fader
(on) or post-fader (off).
Button status is only
available on the GUI (see
Figure 17 on page 106).
b Press ON to route the aux
mix from input to aux output.
c Adjust the level control knob
to change the signal level.
You have the option to adjust them using the pan/fader controls in the
input fast zone (12-channel input bay); this is known as “flip” mode. (You
can also adjust them in the GUI channel strip — overview or processing
area — using drag.)
