Midas PRO SERIES

Inputs on the GUI 281
PRO Series Live Audio Systems
Owner’s Manual

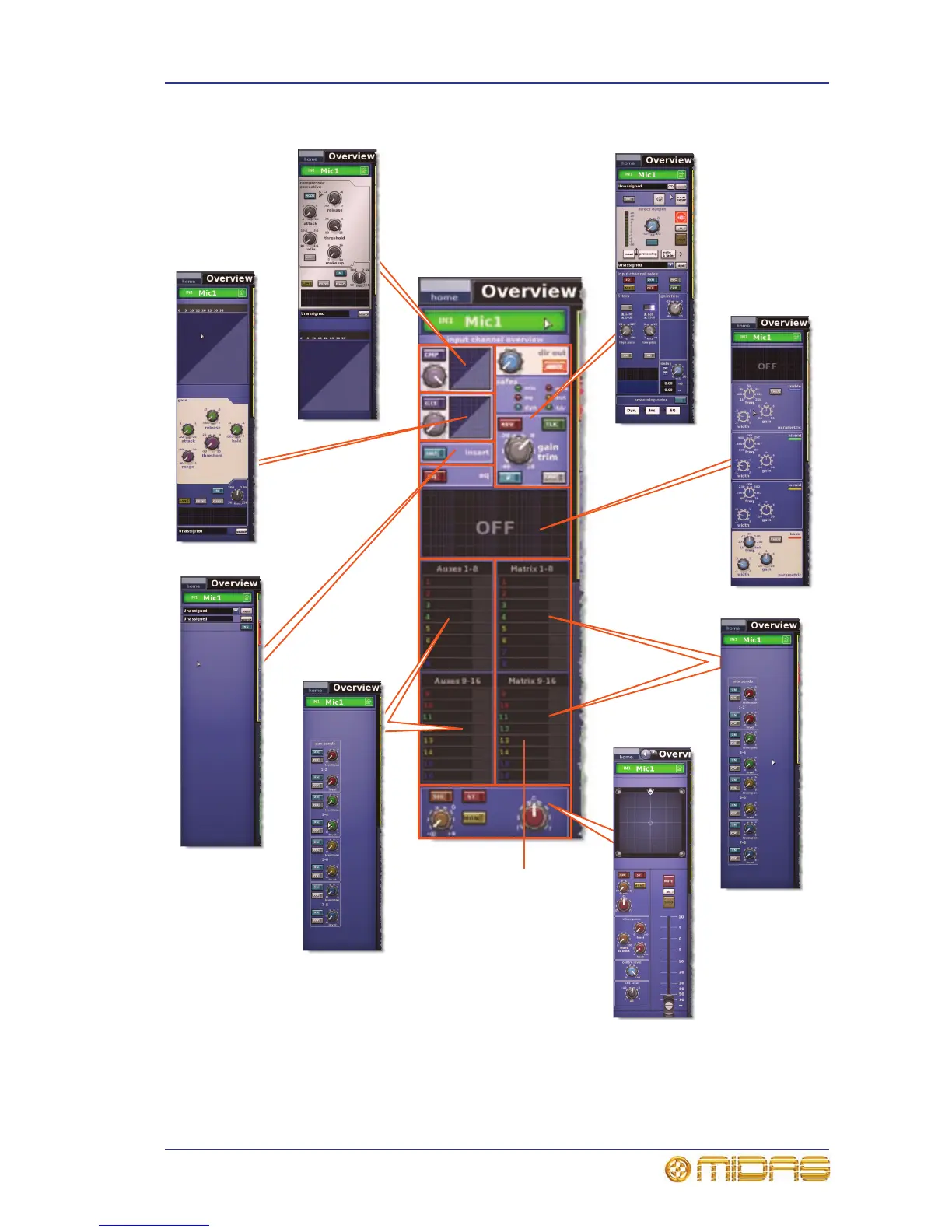

Figure 34: Processing areas available from the input channel overview display
Configuration
EQ
Matrix buses
Aux buses
Insert
Masters
Compressor
Gate
input channel overview
Although aux sends
9-16 are not shown,
their display is similar
to above
This section is not
available on the
PRO3, as it only has
matrices 1 to 8
Although mtx
sends 9-16 are
not shown
(PRO6 and PRO9
only), their
display is similar
to above
