Midas PRO SERIES User Manual

Inputs 517
PRO Series Live Audio Systems
Owner’s Manual
EQ
This section shows the parameters of the input EQ section affected by copy and paste.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5 SHAPE switch Treble shelving mode: peaking, bright, classic or
soft
6 SHAPE switch Bass shelving mode: peaking, deep, classic or
warm
7 SLOPE pushbutton High pass filter slope 12dB or 24dB
8 SLOPE pushbutton Low pass filter slope 6dB or 12dB
9 high pass control
knob
High pass filter frequency
10 low pass control
knob
Low pass filter frequency
11
/[IN] switch
High pass filter in/out
12
/[IN] switch
Low pass filter in/out
1
4
3
5/6
2
7
8
5
3
4
7
2
3
4
2
3
4
6
2
3
4
1
2
8
9
10
11
12

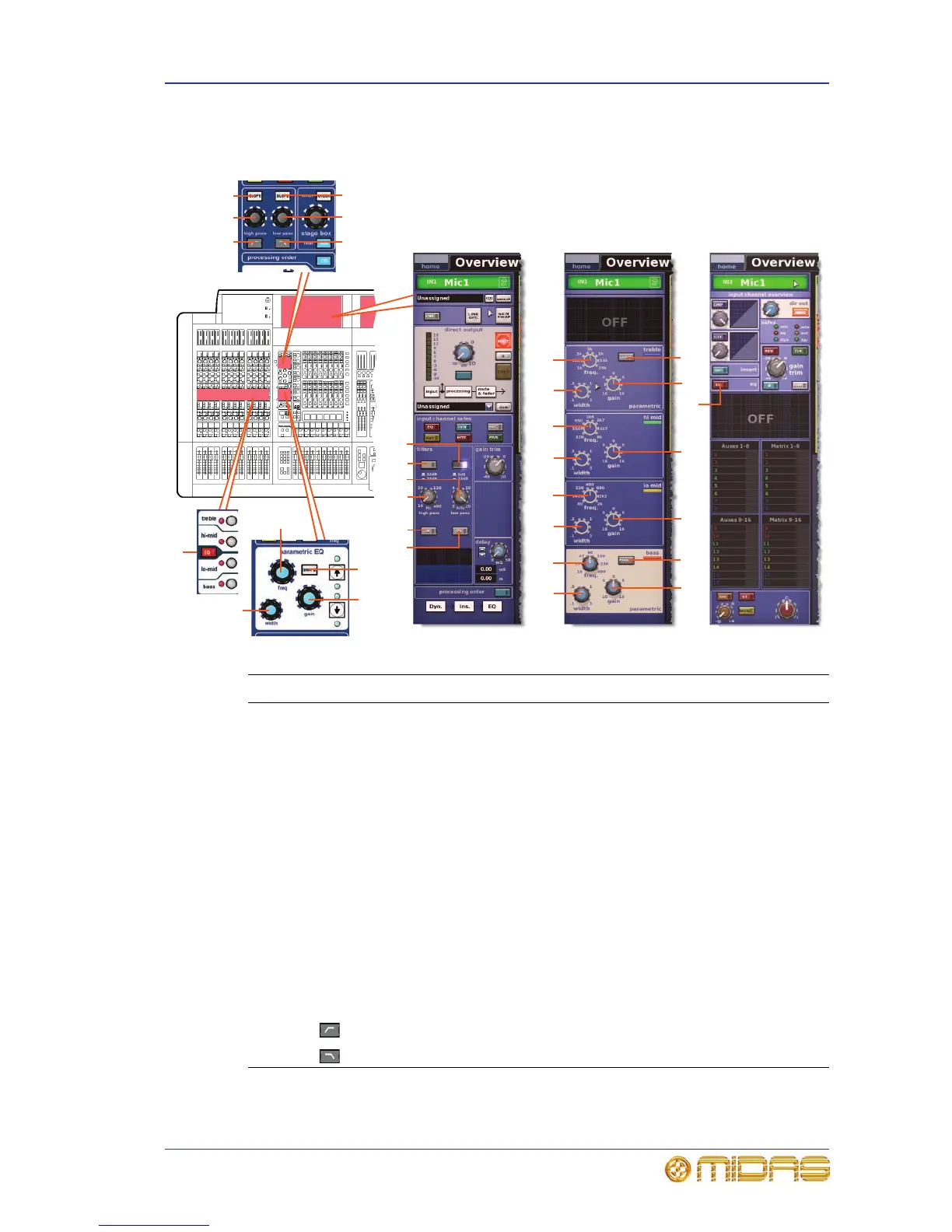

EQ processing area
in GUI channel
strip
input channel
overview in GUI
channel strip
Configuration
processing area in
GUI channel strip
9
11
10
12

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
