EQ

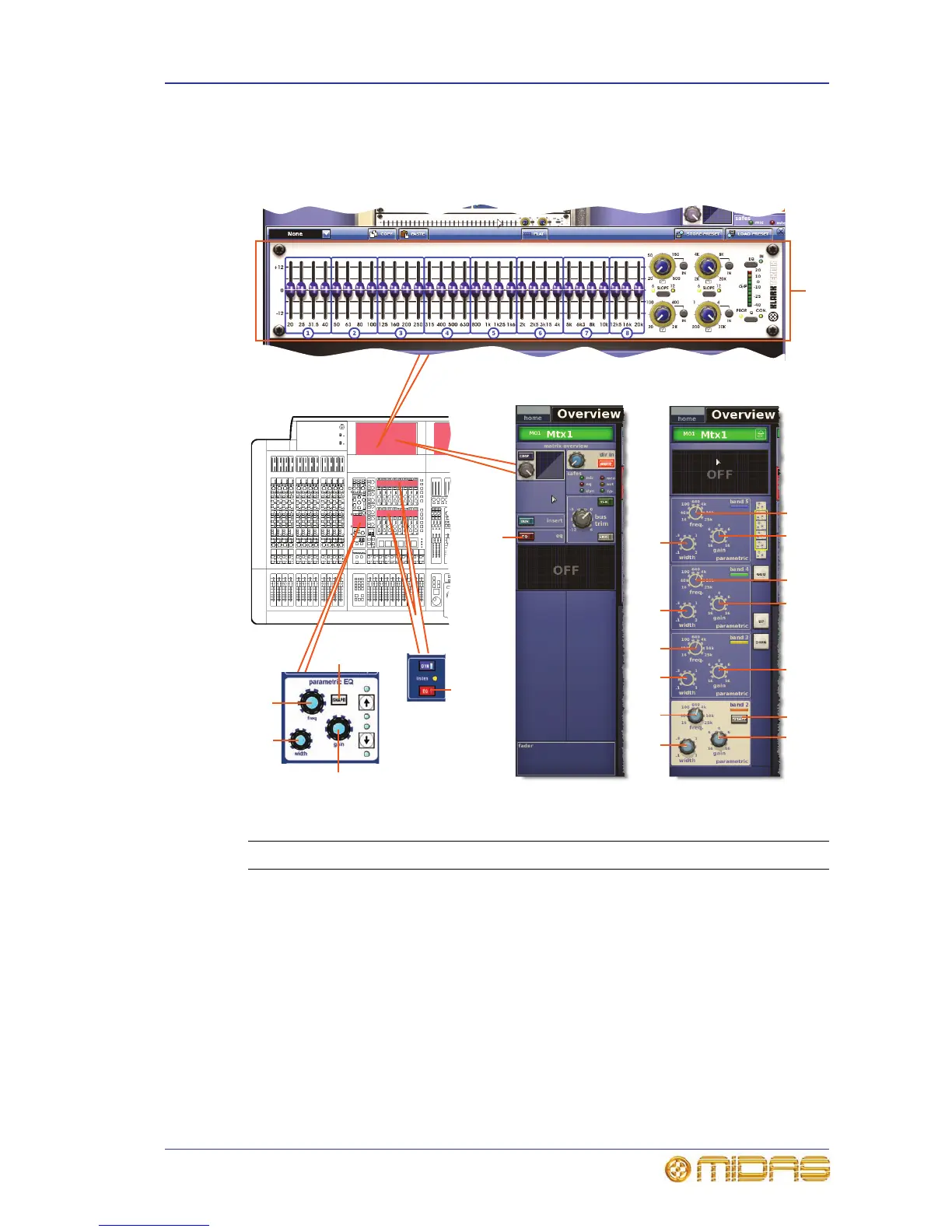

The following diagram shows the parameters of the EQ section affected by stereo
linking.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5* SHAPE switch Band 6 shelving mode: bell, soft, low pass 6dB or
low pass 12dB
6 SHAPE switch Band 2 shelving mode: bell or high pass 24dB
