8 - 2
• When the pressure units are converted among cmH
2
O, hPa and mbar, the parameter values remain
unchanged, for example, 1cmH
2
O=1hPa=1mbar, which may differ from some external devices.
8.4 Connecting an External Device
To connect an external device, follow this procedure:
1. Connect one end of the serial port cable with the multifunctional connector of the monitor.
2. Connect the other end of the serial port cable with an external device.
3. Switch on the external device.
• First installation and debugging should be executed by Mindray service personnel or authorized
technician.
8.5 Accessing the Integrated Devices Screen
You can view the information of external devices in the Integrated Devices screen of the monitor. To access the
Integrated Devices screen, follow this procedure:
â– Select the Integrated Devices quick key.
■Select the Screen Setup quick key → select the Choose Screen tab → select Integrated Devices.
■Select the Main Menu quick key → from the Display column select Choose Screen → select Integrated
Devices.
■Select the numeric area or waveform area of any parameter from the external device →select the
Integrated Devices button.

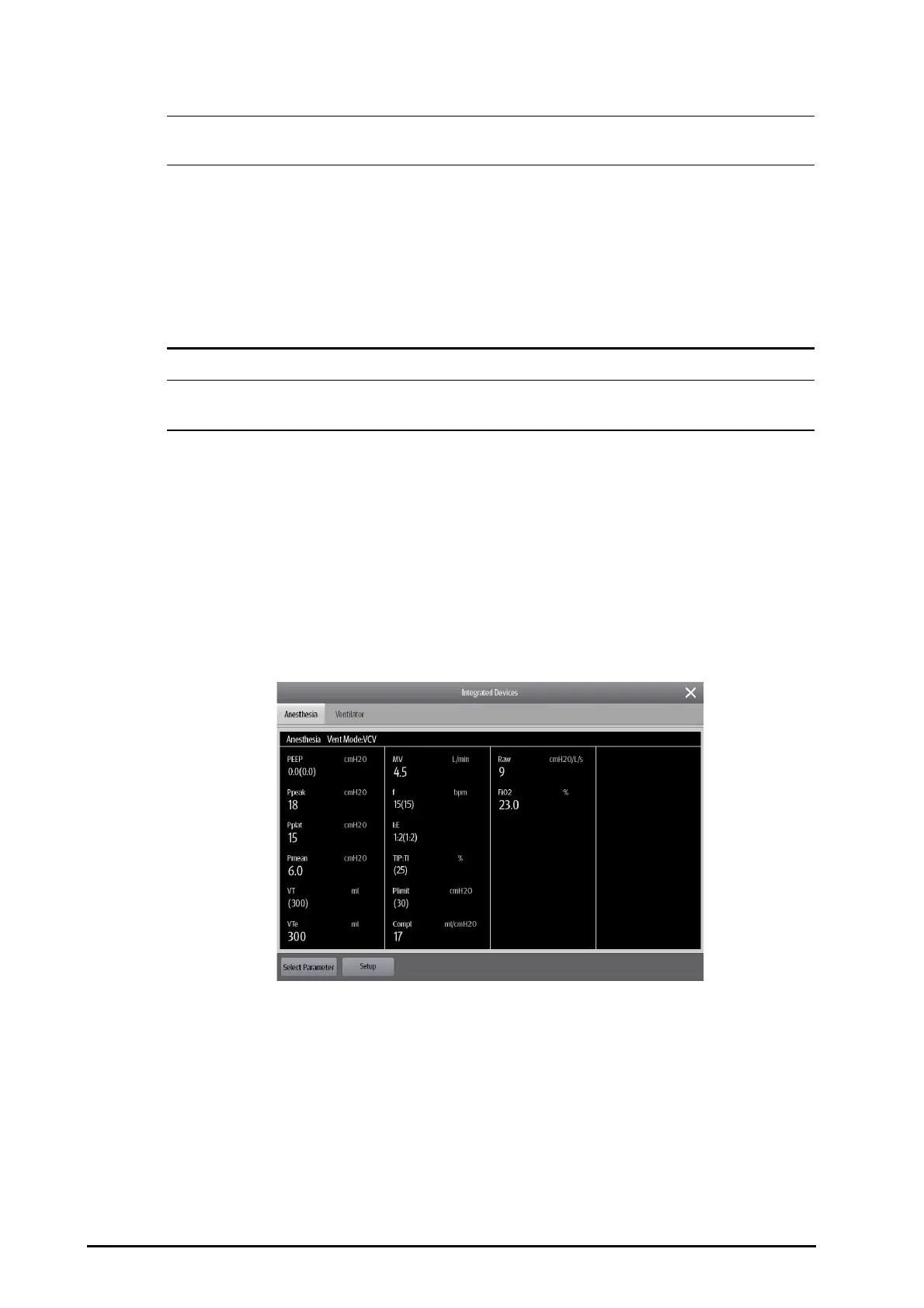

The Integrated Devices screen has the following features:
â– For the parameters measured by the external device, the measurements display directly after the
parameter labels.
â– For the parameters controlled by the external device, the settings are enclosed in parenthesis after
parameter labels.
â– For the parameters measured and controlled by the external device, measurements and settings are
displayed after parameter labels, and settings are also enclosed in parenthesis. For example, PEEP 18 (20),
in which PEEP is parameter label, 18 is the measurement, and (20) is the setting.
