2 - 2
2.3 System Components
The monitor consists of the main unit, display, external modules, input devices, and output devices.
• Your monitor may not include all these components. Contact your local service personnel for the
available components.
2.3.1 Main Unit
The main unit processes data from modules.

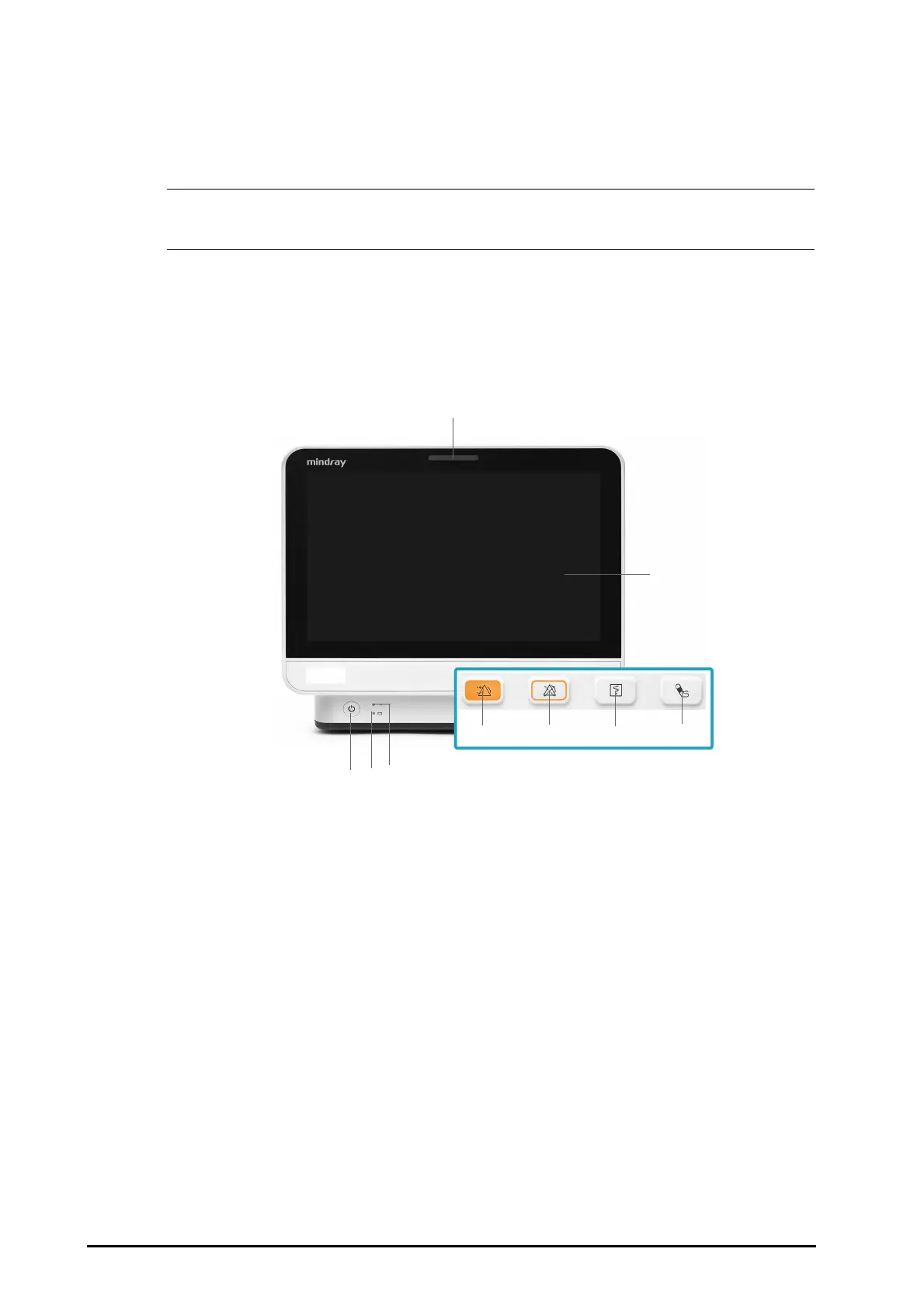

2.3.1.1 Front View
(1) Alarm lamp
When a physiological alarm or technical alarm occurs, this lamp lights and flashes corresponding
with the alarm priority:
â—† High priority alarms: the lamp quickly flashes red.
â—† Medium priority alarms: the lamp slowly flashes yellow.
â—† Low priority alarms: the lamp lights in cyan without flashing.
(2) Display
(3) NIBP Start/Stop hard key
Press to start an NIBP measurement or stop the current NIBP measurement.
(4) Record Start/Stop key
Press to start a recording or stop the current recording.
(5) Alarm Pause hard key
Press to pause the physiological alarm system.
(6) Alarm Reset hard key
Press to reset the alarm system.
(7) Power indicator
(9) (8) (7)
(2)
(1)
(6) (5) (4) (3)
