2.10 Controller
■3. Channel number setting operation
■4. Communication detail setting switching operation

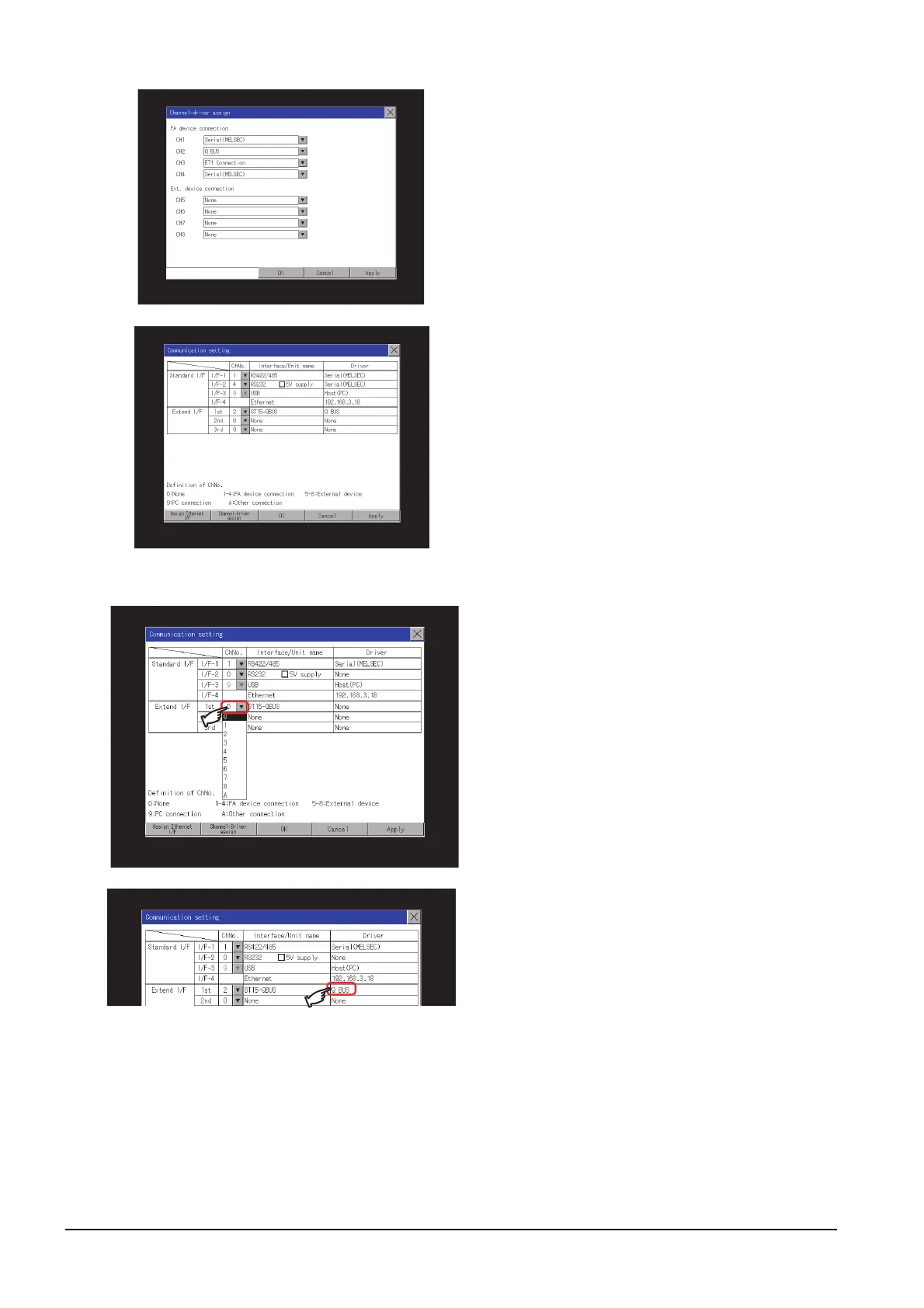

Step 1. If the driver display BOX is touched on the communication setting screen or Ethernet I/F assign screen, the
screen switches to the detailed setting screen of the related controller device.
➠ 2.10.5 Communication detail setting
Step 4. The screen returns to the [Channel-
Driver assign] screen. If touch the [OK]
button, the changed settings are
reflected and the screen returns to the
[Communication setting] screen.
If touch the [Cancel] button, the
changed settings are canceled and the
screen returns to the [Communication
setting] screen.
Step 5. Confirm that the selected
communication driver
([Serial(MELSEC)]) is assigned.
Step 6. After the confirmation, if touch the [OK]/
[Cancel]/[×] button, the GOT restarts
and operates with the changed settings.
Step 1. Touch channel number specification
menu BOX to be set.
Step 2. The cursor for the channel number
specification menu BOX is displayed.
Simultaneously the keyboard for a
numerical input is displayed.
Step 3. Input the channel number from the
keyboard and touch [Enter] key, and the
value is defined.
Simultaneously, the name of the
communication driver corresponding to
the channel number assigned by GT
Designer3 is displayed in the driver
display BOX.
