VJ-1604 Maintenance Manual 4 Parts Replacement
4-141 Rev.-05

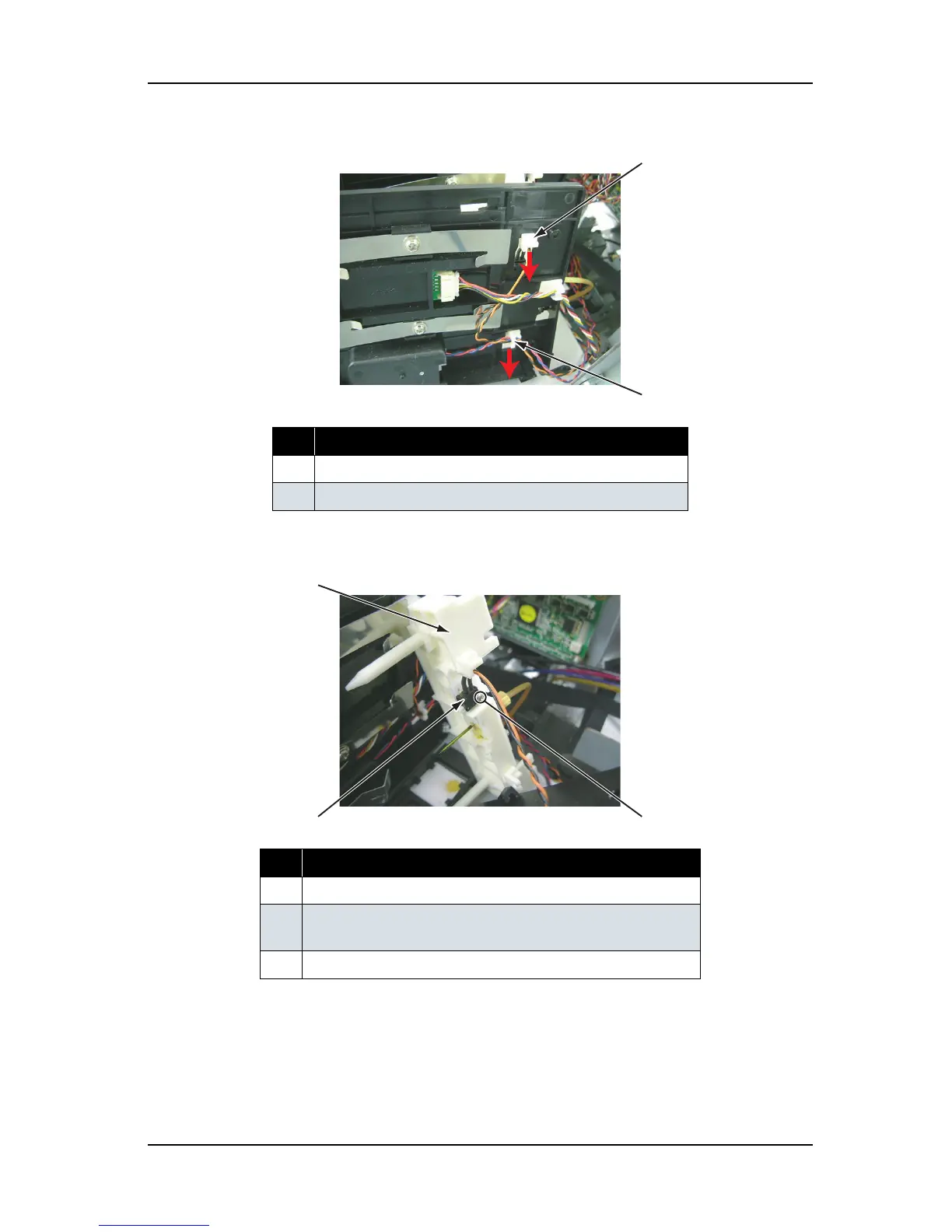

13. Remove the frame assembly and the needle.
14. Remove the screw (1 piece) that retains the ink cartridge control cable to the frame assembly and the
needle.
15. Remove the ink cartridge control cable.
16. To reassemble the unit, reverse the removal procedure.
No. Part name
1 Hook of the frame assembly and the needle
2 Clamp
No. Part name
1 Ink cartridge control cable
2 Screw that retains the ink cartridge control cable
(B tight band screw M2
× 8)
3 Frame assembly, needle
1
2
1
2
3
