4. Remove the screws (2 pieces) that retain the cover sensor (C) assembly_L.
5. Remove the cover sensor (C) assembly_L.
6. To reassemble the unit, reverse the removal procedure.

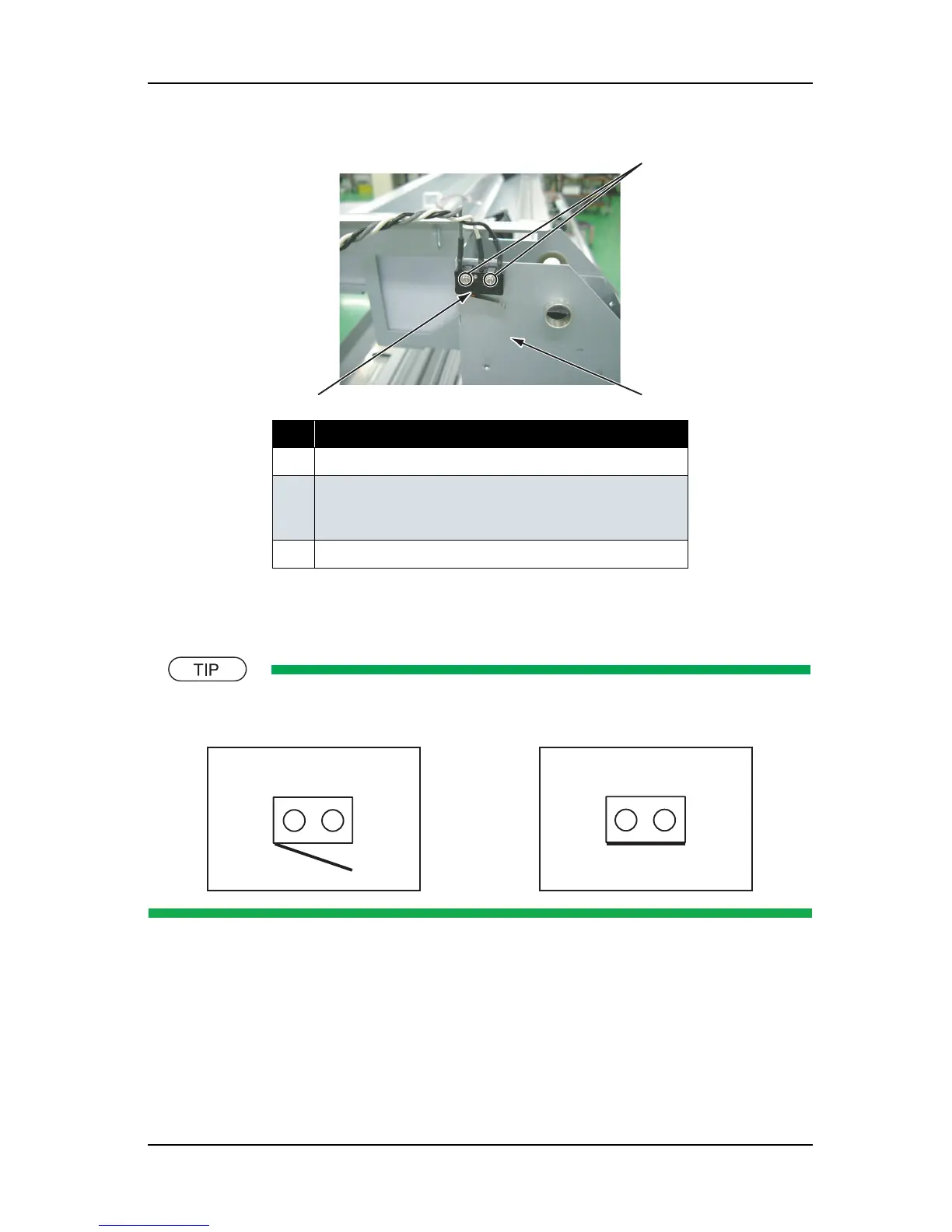

The cover sensor looks like the following.
No. Part name
1 Cover sensor (C) assembly_L
2 Screws that retain the cover sensor (C) assembly_L
(pan-head screw with spring washer and flat washer M2
×
12)
3 Damper cover L
2
1
3
Opened
Closed
