Electrical System 137Service Manual – CS7000
Removal and Installation
42 volt Generator Drive Belt
Note: Instructions are for both diesel and LPG models. Photos are of diesel.

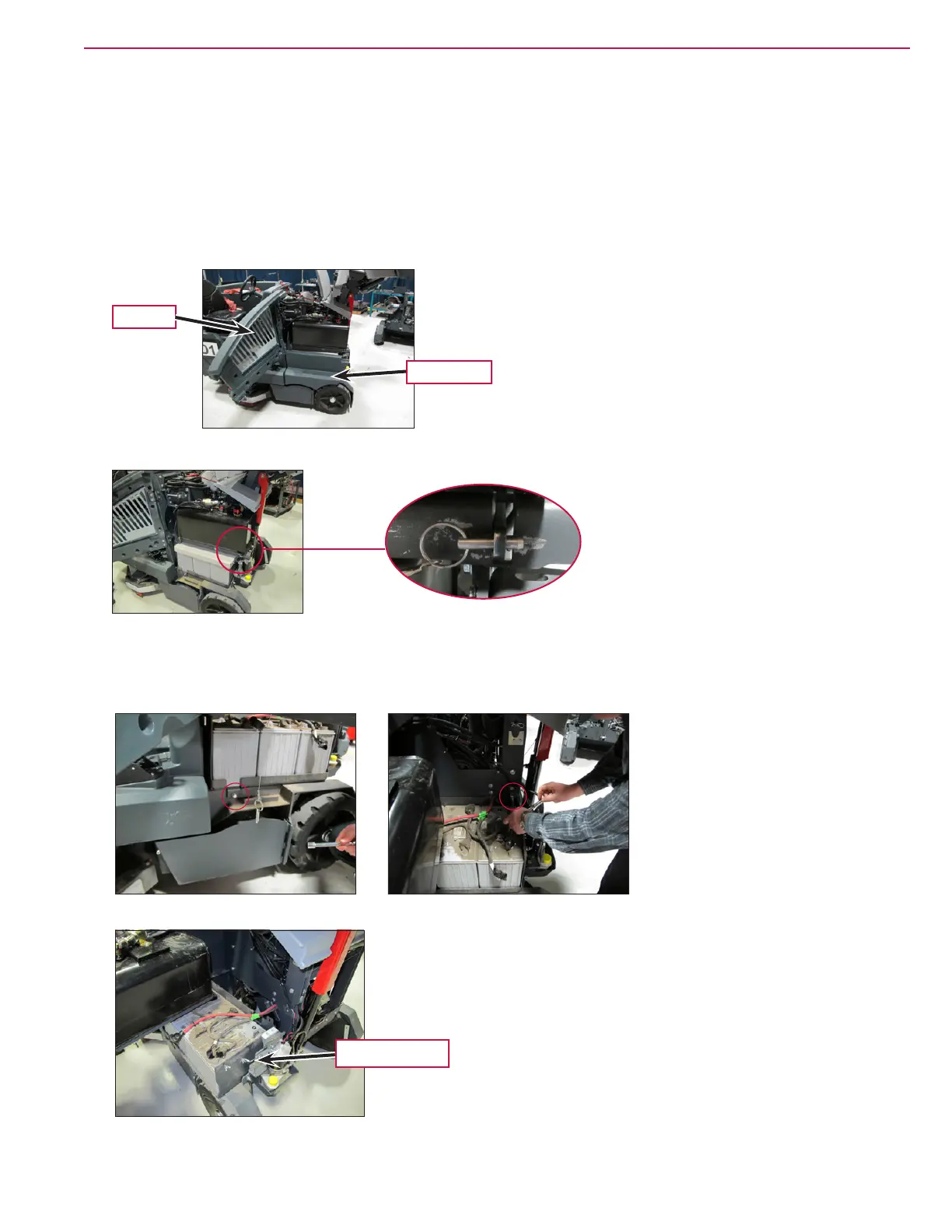

1. Lift hopper up, engage hopper prop rod and then lower to safety lock position.
2. Open the side cover and remove the lower panel.
3. Remove the retaining pin and swing out the fuel tank.
4. Remove the 36v battery pack top cover.
5. Disconnect the main battery negative and positive cables.
6. Remove the two battery pack tray to frame attachment bolts.
7. Slide the battery pack tray outboard to the end of the tether cable.
Tether Cable
Open
Remove
