DustGuard™ Spray System

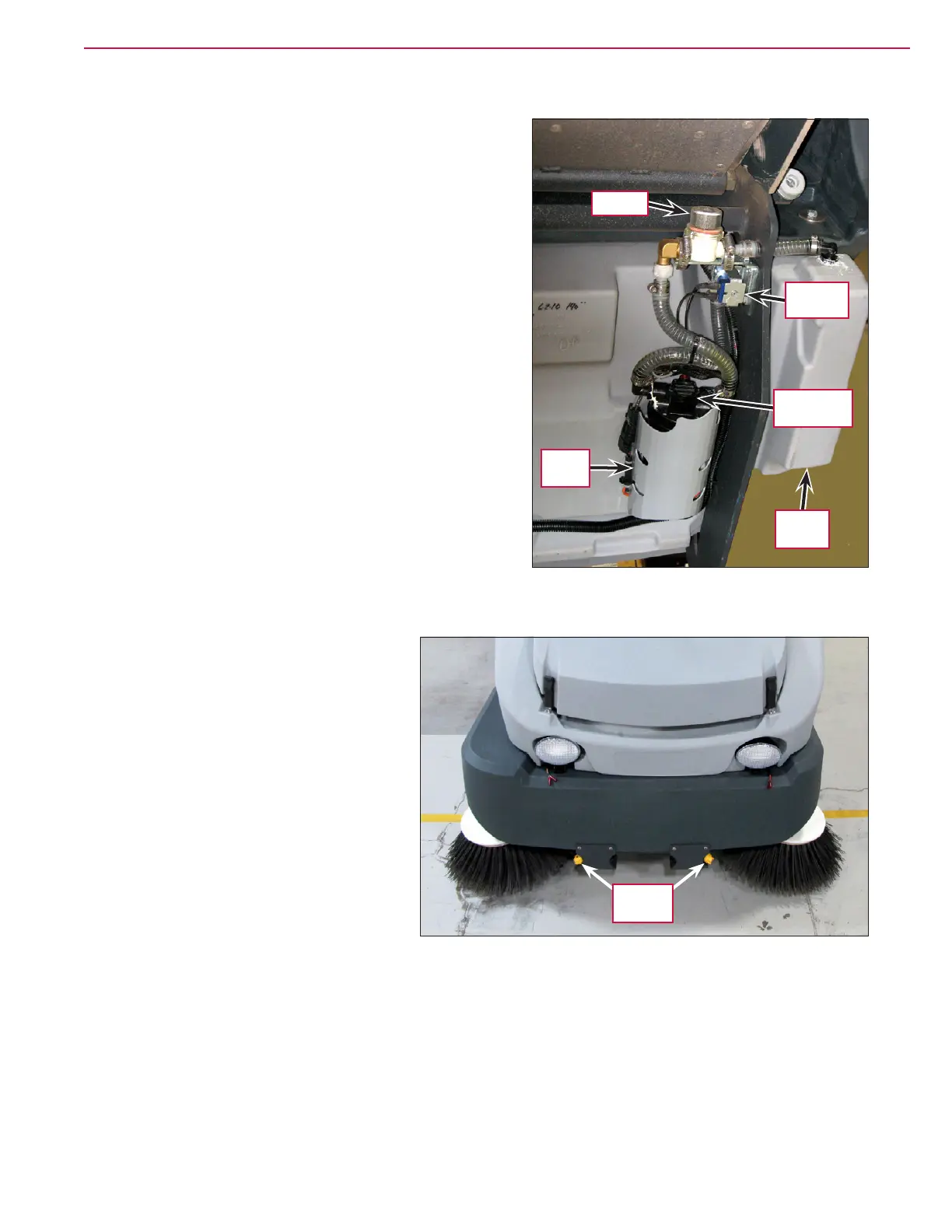

The DustGuard Pump is mounted on the Upper Hopper and
is protected by the Pump Guard. The Strainer screens the
incoming water upstream of the DustGuard Pump. The
Solenoid Valve, downstream of the DustGuard Pump, opens
to allow water ow to the nozzles when the power to the
DustGuard Pump is switched on.
The Spray Nozzles are mounted on the
front of the machine and spray an oval
pattern of water mist across the width of
each side broom.
Upper
Hopper
Pump
Guard
Strainer
Solenoid
Valve
DustGuard
Pump
Spray
Nozzles
