Solution System 324Service Manual – CS7000

Component Locations

Solution Tank

Drain Hose

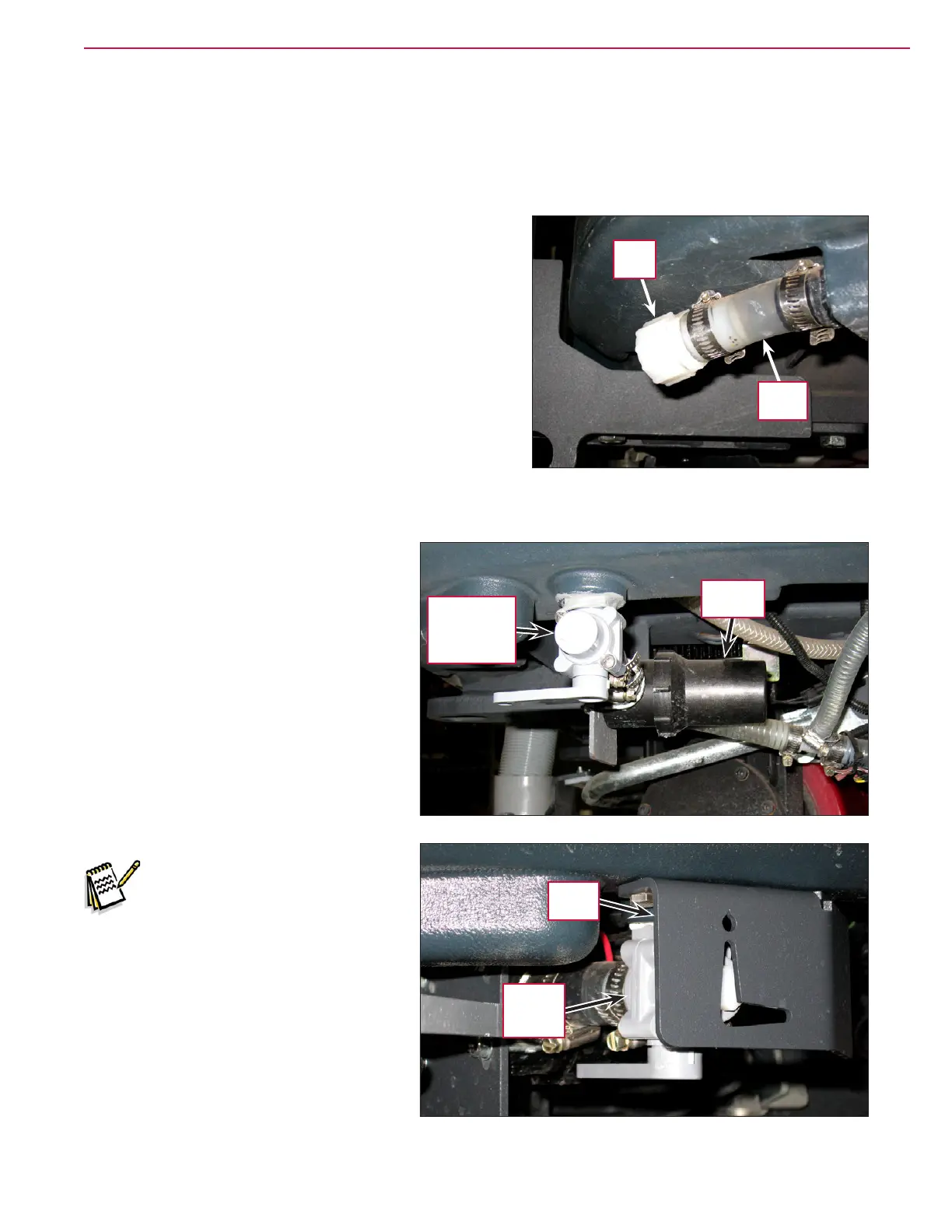

The Drain Hose underneath the rear right-hand side of the

solution tank allows you to drain the solution tank. To

drain the tank, remove the Pipe Cap.

Solution Filter and Solution Shutoff Valve

The Solution Filter and Solution Shutoff

Valve

are mounted underneath the rear

right-hand side of the solution tank.

• The Solution Filter prevents any dirt or

particulates that may be in the solution

tank from entering the solution

solenoid valve and solution system.

• The Solution Shutoff Valve allows

you shut off the solution ow to

the machine for solution system

maintenance.

Note: There is a Valve Shield

mounted onto the solution

tank that is not shown

in the above photo. The

Valve Shield is designed

to prevent damage to the

Solution Shutoff Valve.

Pipe

Cap

Drain

Hose

Solution

Shutoff Valve

(shown

closed)

Solution

Filter

Solution

Shutoff

Valve

Shield
