Engine System - LPG 169Service Manual – CS7000
Component Locations
Engine components are grouped
according to the area of the engine.
They are photographed on an engine
that is not installed in the machine
for better visibility. See next pages for
photos.
• Engine Right Side View (Toward
front of machine)
– Engine relay box
– NIKKI Fuel Vaporizer/Regulator
– Actuator
– Carburetor/mixer
– Engine RPM sensor
– Crank position sensor
– Carburetor fuel shut off solenoid
• Engine Back Side View (Toward right of machine)
– Spark Controller
– Fuel lock off solenoid
– 42 V Alternator
– Ignition coils
• Engine Left Side View (Toward back of machine)
– 12 V alternator
– Engine starter
– Oil pressure switch
– Coolant temperature switch
• Fuel Tank Area
– Fuel tank
– Pressure relief valve
– Low LPG pressure switch

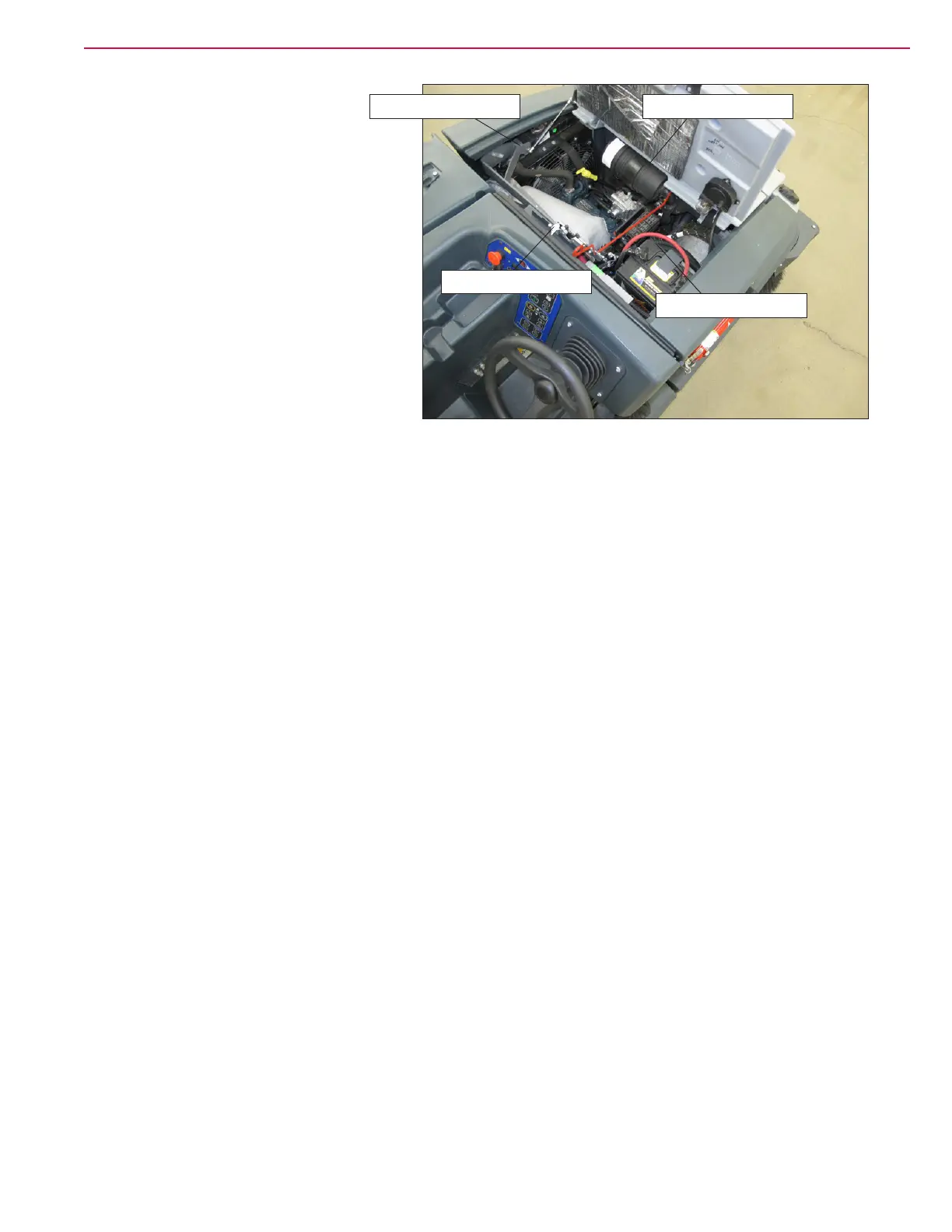

Engine Right
Engine Left
Engine Front
Engine Back
