Nilfisk-Advance CS7000 Service Manual

Scrub System 305Service Manual – CS7000

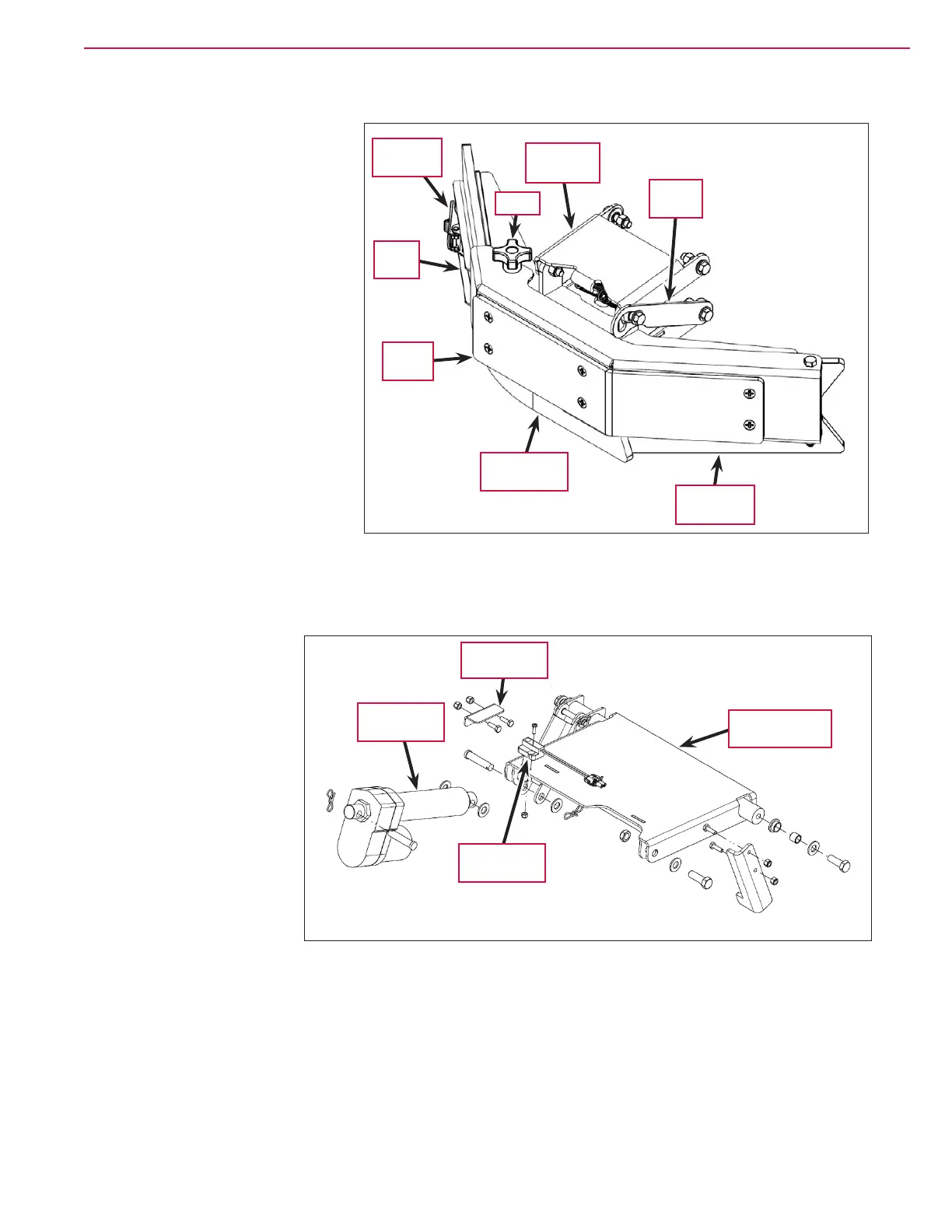

Side Squeegee Assemblies
The Side Squeegee Assemblies
are mounted to Weldment Arms
that are attached to the Deck/Arm
Weldments
. The Side Squeegee
Assemblies
are spring-loaded to
keep them rmly on the oor. A
Catch Plate allows you to lock the
Side Squeegee Assemblies in the
upper position for double-scrub
cleaning and maintenance.
An Edge Guard, held in position
by a Knob, protects the right-
hand Side Squeegee Assembly and
swings out to allow access to the
Blade Strap and Trailing Deck Blade.
The Latch Assembly releases to
allow you to remove the Blade
Strap
and Trailing Deck Blade.
The Leading Deck Blades are held
in place by strap weldments and
wing knobs.
Scrub Deck Actuator
The Scrub Deck Actuator
is pinned to the machine
frame, and to the pivoting
Deck Lift Assembly Arm.
When the Scrub Deck
Actuator
extends or
retracts, it lowers or lifts
the free side of the Deck
Lift Assembly Arm
.
The Deck Lift Assembly Arm
pivots on ange bearings
and bushings in the frame
to raise and lower the
attached scrub deck. Note
that the scrub deck is
free to “oat” left-to-right
to conform to the oor
surface.
The
Retract Limit Switch S1 will detect the Sensor Target Bracket when the scrub deck is fully retracted upward
and stop the Scrub Deck Actuator motor.
Weldment
Arm
Catch
Plate
Latch
Assembly
Blade
Strap
Edge
Guard
Trailing Deck
Blade
Leading
Deck Blade
Knob
Deck Lift
Assembly Arm
Scrub Deck
Actuator
Sensor Target
Bracket
Retract Limit
Switch
