Nilfisk-Advance CS7000 Service Manual

Dust Control/DustGuard
™
Systems 97Service Manual – CS7000

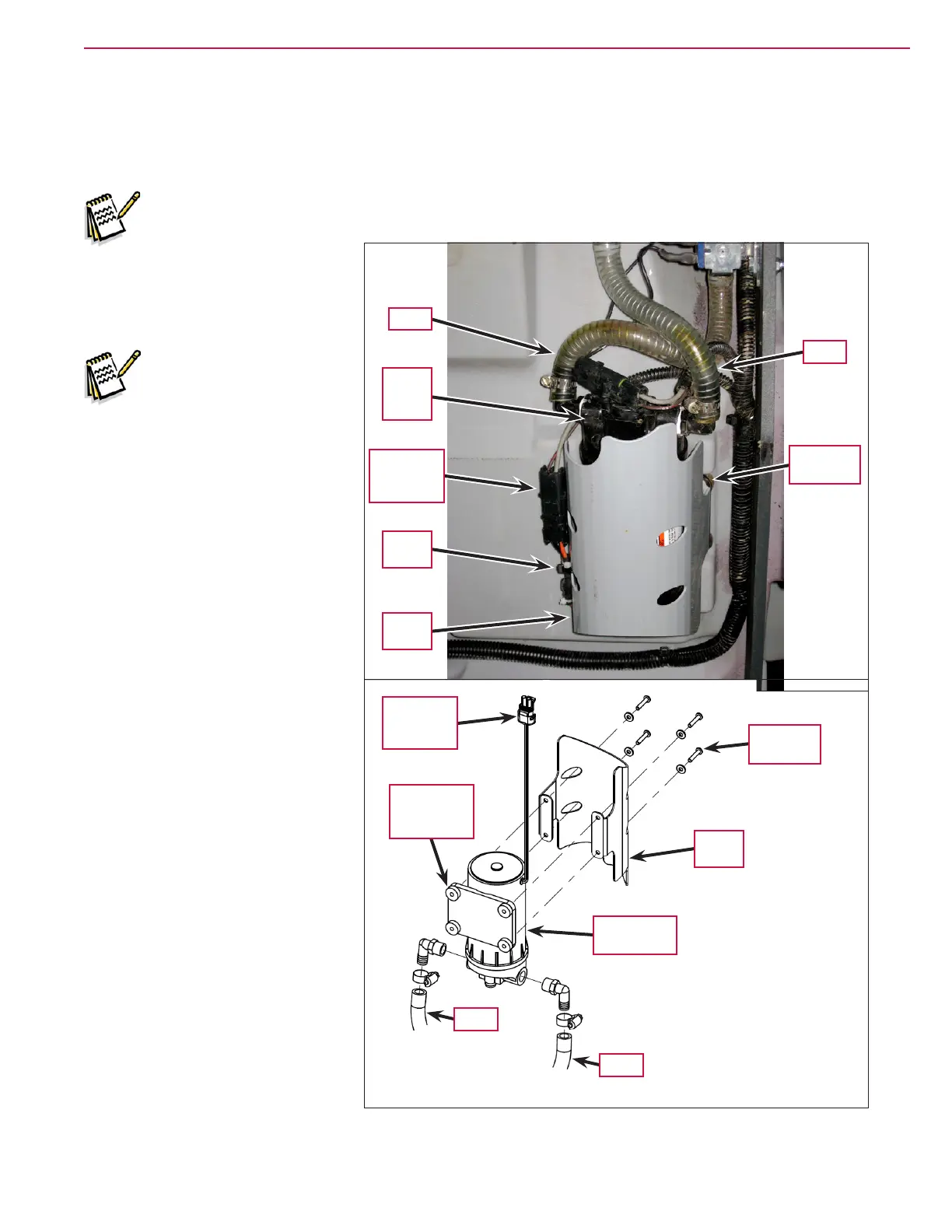

To Remove and Reinstall the DustGuard™ Pump
1. Drain the water from the upper hopper. Note that you can do this one of several ways. The most
convenient way is to remove the strainer cover and screen and drain the upper hopper through the
DustGuard™ strainer.
Note: Place a suitable container underneath the upper hopper to catch the water from the hopper
reservoir.
2. Turn the key switch on, raise
the hopper and engage the
prop rod, then turn off the key
switch.
Note: Place a suitable
container underneath the
DustGuard Pump to catch
any water that may leak
from the DustGuard Pump
and hoses.
3. Disconnect the Pump Electrical
Connector
.
4. Disconnect the two Hoses from
the DustGuard Pump.
5. Remove the four Phillips
Screws
and washers holding
the Pump Guard and DustGuard
Pump
to the Upper Hopper
and remove the Pump Guard
and DustGuard Pump from the
machine. Note that you’ll
need to cut the Wire Tie holding
the Pump Electrical Connector
wires to the Pump Guard in
order to separate the Pump
Guard
and DustGuard Pump.
6. Reinstall the DustGuard Pump
by following the above steps in
reverse order.
Hose
Pump
Guard
Wire
Tie
Pump
Electrical
Connector
Dust-
Guard
Pump
Hose
Phillips
Screw (4)
Hose
Hose
Pump
Electrical
Connector
Phillips
Screw (4)
Pump
Guard
DustGuard
Pump
DustGuard
Pump
Isolator (4)
