Dust Control/DustGuard

™

Systems 88Service Manual – CS7000

Dust Control Filter Switch

The optional Dust Control Filter Switch is mounted above

the Filter Shaker Assembly on the Upper Hopper. The Dust

Control Filter Switch

will close and generate a warning if

the hopper vacuum gets too high, indicating a plugged

Dust Control Filter. Note that the Dust Control Filter Switch

is factory-set to close at 2” of water, 0.147” Hg or 0.072

psi.

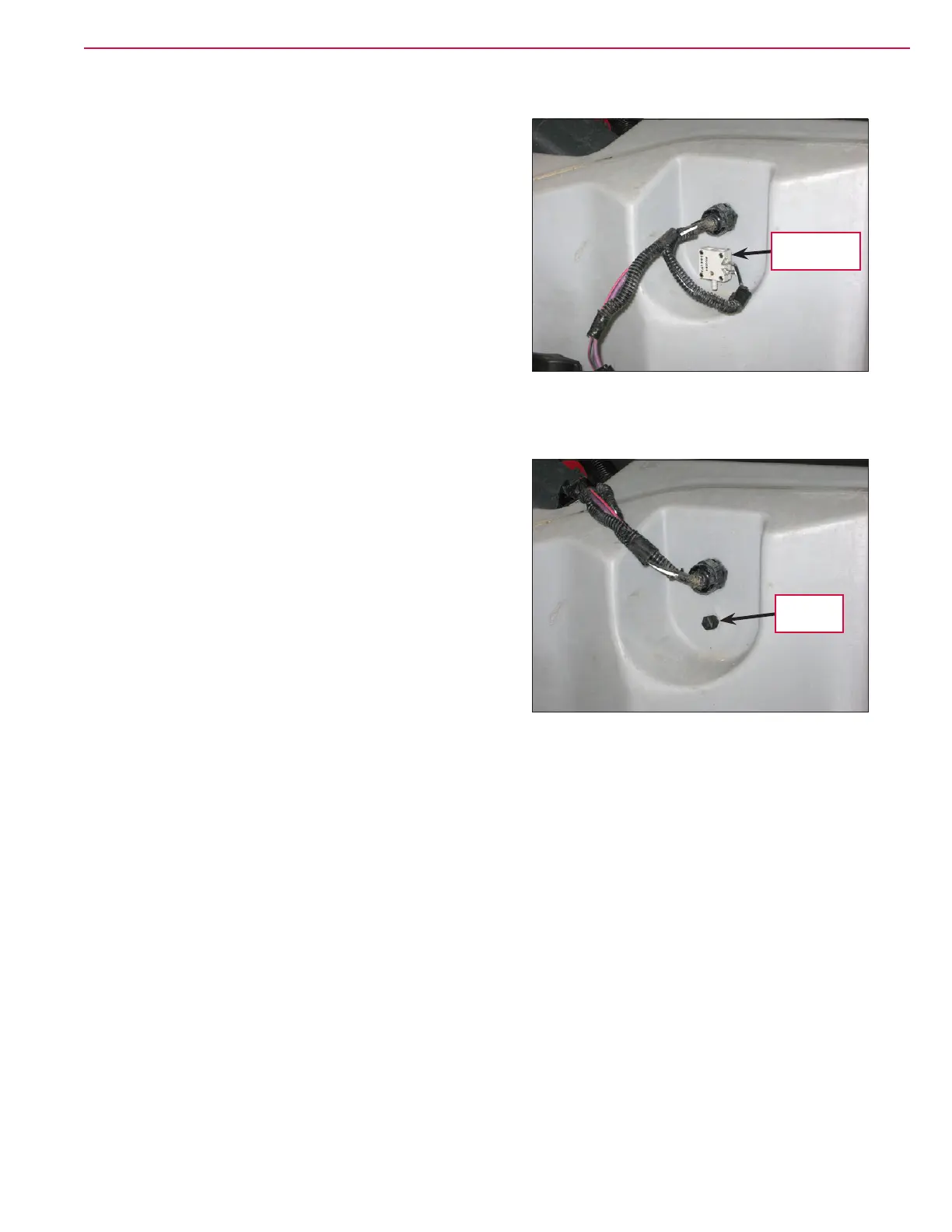

If the dust control lter switch is not installed in the

hopper, there will be a Threaded Plug installed in the

switch hole.

Dust Control

Filter Switch

Threaded

Plug

Default Chapter1
- Service Manual1
