To Remove and Reinstall the Squeegee Lift Actuator
1. Remove the recovery tank.
2. Remove the squeegee tool assembly. (This will reduce the weight on the Squeegee Lift Arm.)
3. Disconnect the lift actuator electrical connector.
4. Remove the Cotter Pin, washers and
Clevis Pin connecting the Squeegee Lift
Actuator
to the Squeegee Lift Arm.
5. Remove the Cotter Pin, .5” x 2.75”
Clevis Pin
and Spacer connecting the
Squeegee Lift Actuator to machine
frame and remove the Squeegee Lift
Actuator
from the machine.
6. Reinstall the Squeegee Lift Actuator by
following the above steps in reverse
order.
Note: The Squeegee Lift
Actuator
does not
require adjustment after
installation.

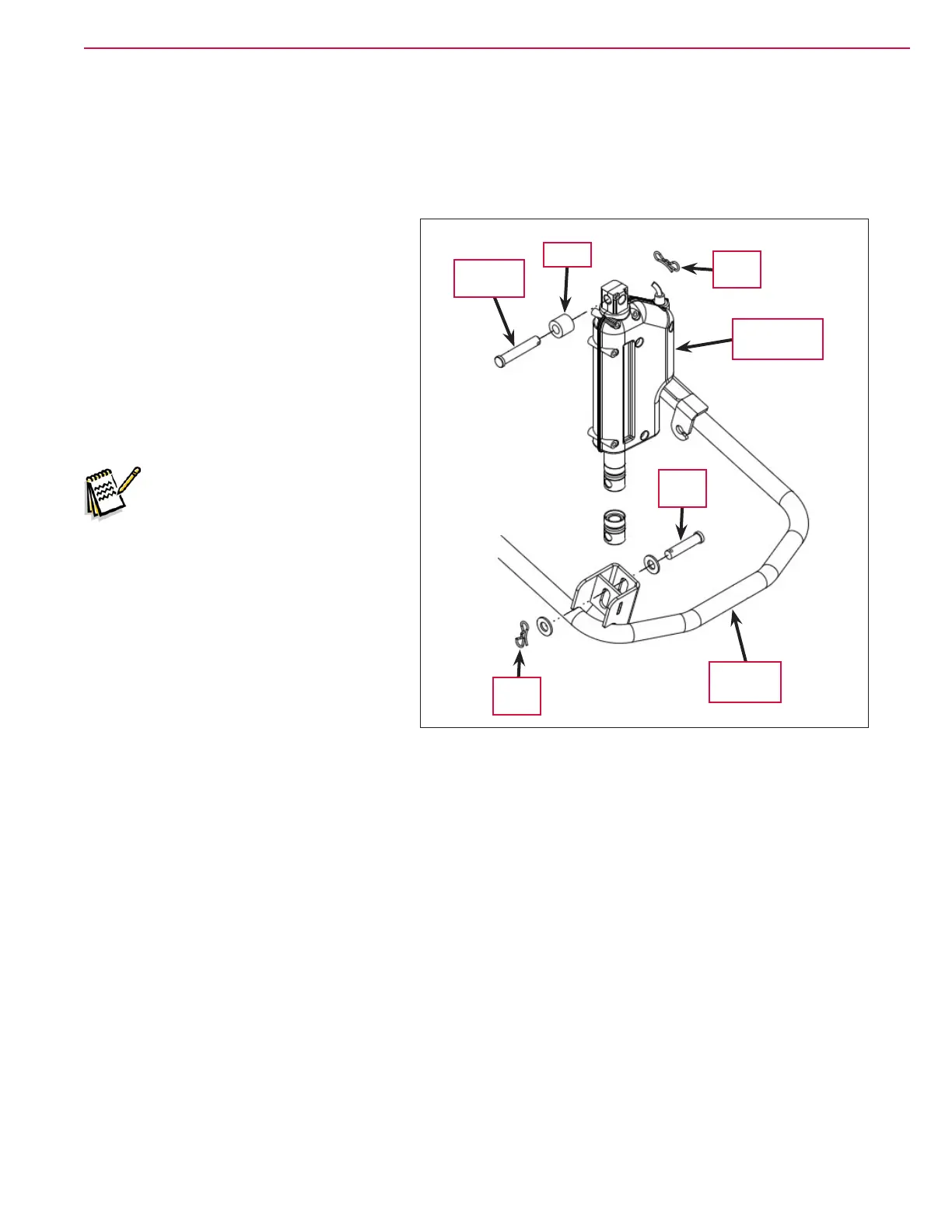

Cotter
Pin
Clevis
Pin
Squeegee
Lift Arm
Squeegee Lift
Actuator
.5” x 2.75”
Clevis Pin
Spacer
Cotter
Pin
