Squeegee System
Functional Description
Overview
The squeegee assembly is mounted at the bottom rear of the machine and picks up the water from the oor.
Two squeegee blades (front and rear) pick up the water and direct it into the squeegee support assembly.
A vacuum hose attached to the support assembly lifts the water from the squeegee and directs it to the
recovery tank. The squeegee lift actuator raises and lowers the squeegee as appropriate for the operation
being performed. The squeegee mounting system is designed to allow the squeegee blades enough side-to-
side movement to conform to the oor surface and swing sideways when turning.

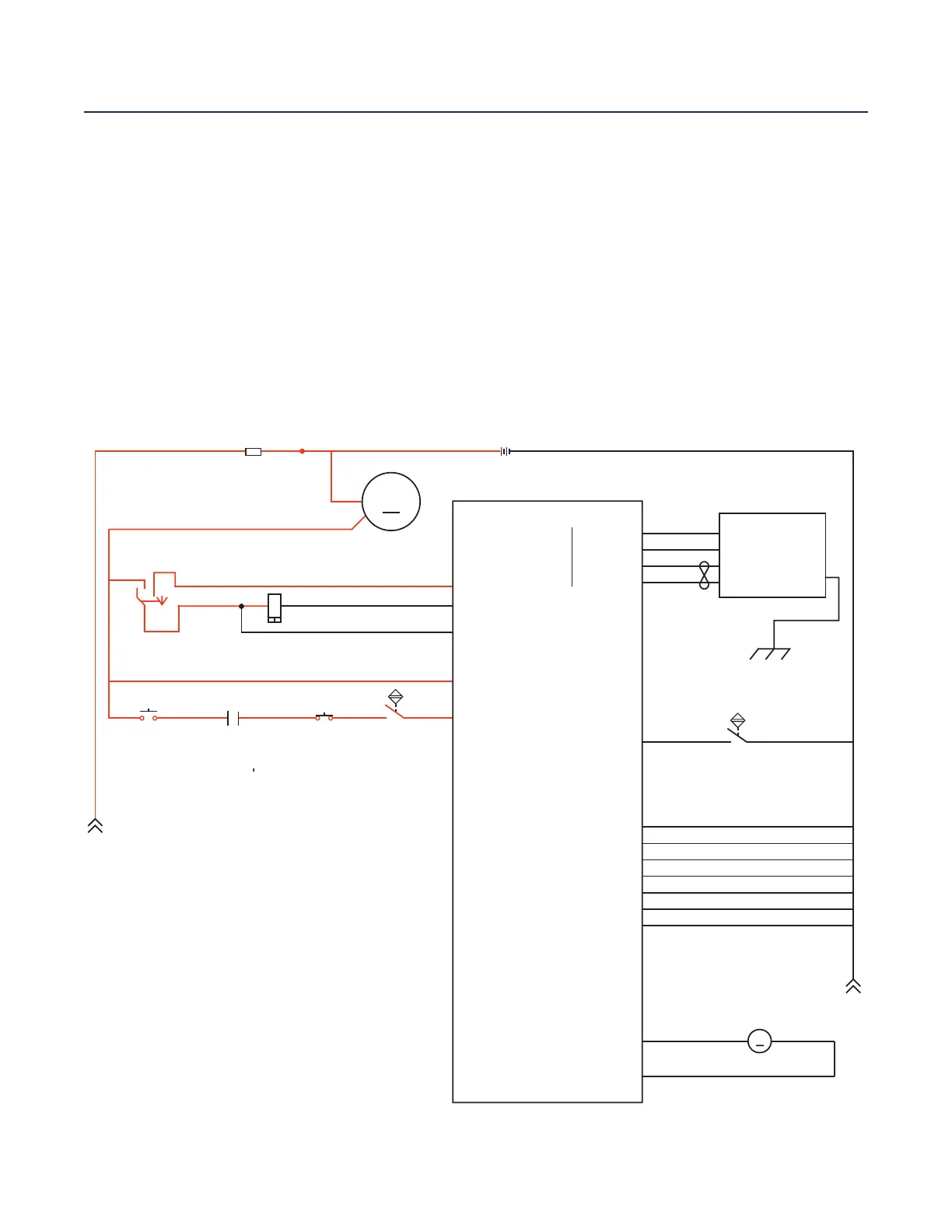

Squeegee System Wiring Diagram
Fuse, 400 A
A1 Main Machine Controller
RED RED BLK
BLK
J3-15
Ground
F1
Battery
36V
B-
BLK
J3-16
BLK
J3-18
BLK
J3-19
BLK
J3-20
BLK
J3-21
BLK
J3-29
WHT/GRN
RED ORN
BLU/BRN
J2-8 Output
+ -
Squeegee
Actuator Motor
+ to RED to Extend
M12
J2-9 Output
M
S14
Ignition Switch
13
B1
B
3
2
J7-19 Start Input
42V Alternator
J2-14 Output
J7-12 Supression
Diode
VIO/GRN
K9 Aux Contactor
YEL/BRN BLK/ORN
ORN
ORN
+
YEL/BRN
G
J7-13 Key Switch
Input
J7-1 Interlock
Input
ORN
GRA/ORN
ORN
Safety Switch
Relay (turned on
and off by A5
Steering Controller)
621 22114
PINK TAN GRN/BLU
K14
Seat Switch
S9
Emergency
Stop Switch
S15
Fe
S13
Battery
Interlock
A3 Control Panel
CAN
BUS
GRN
YEL
BLK
WHT/BRN
GRN/YEL
Chassis
Ground
J7-10 +12V
J7-11 B-
J7-3 CAN H
J7-2 CAN L
J1-1
J1-2
J1-3
J1-4
J7-14
Input
21
RED/BLK BLK
S3
Hopper
Interlock Switch
Fe
43
To Next Page
