General Information 38Service Manual – CS7000

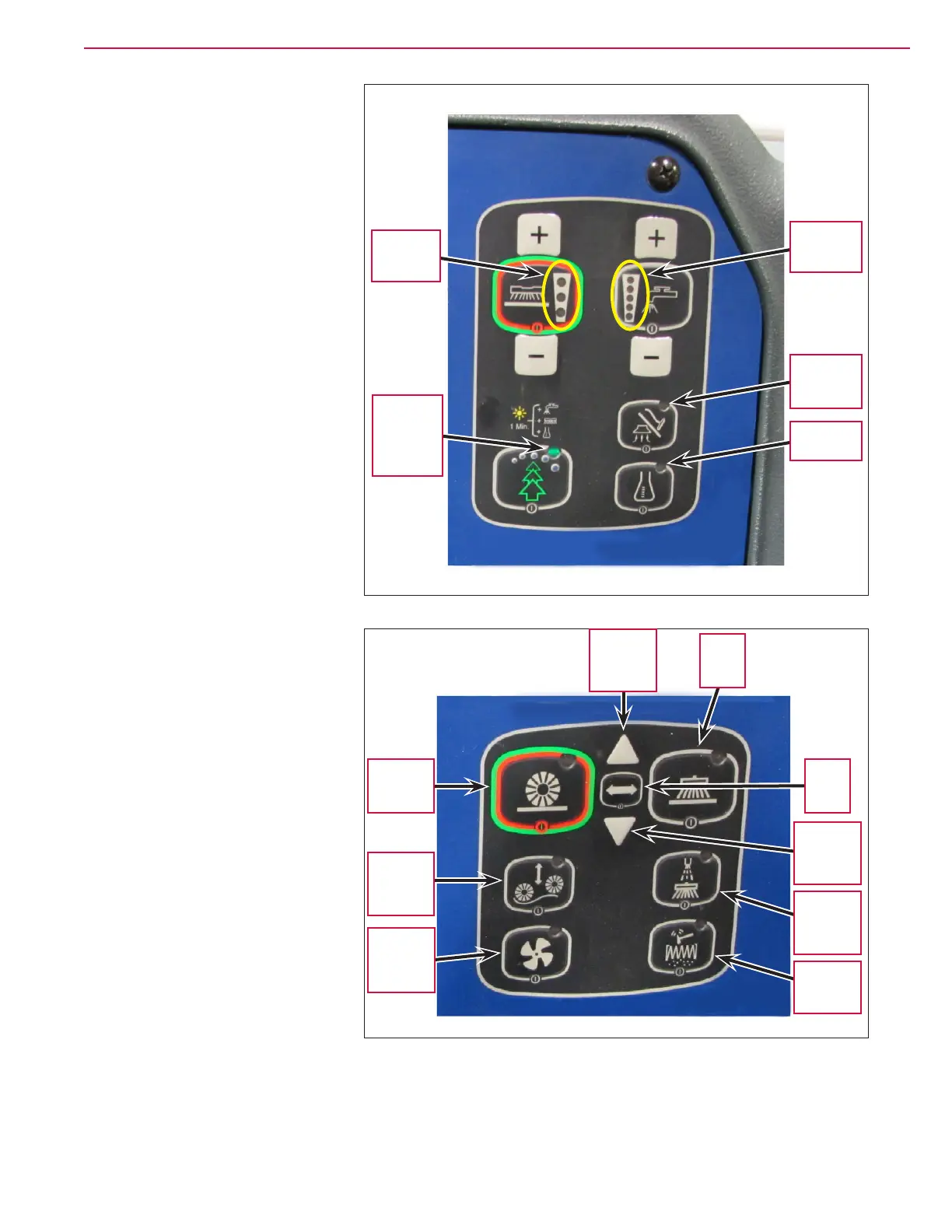

Scrub Indicators
• Scrub Pressure Indicators –
indicate the scrub pressure
setting. One LED indicates
the lightest scrub pressure
and three LEDs indicates the
heaviest scrub pressure.
• Burst of Power Indicator – lights
during normal operation;
ashes to indicate a 60-second
burst of power.
• Solution Flow Indicators –
indicate the solution ow
setting. One LED indicates
the lowest solution ow and
ve LEDs indicate the highest
solution ow.
• Vacuum/Wand Indicator –
indicates that the vacuum
system is enabled.
• Detergent Indicator – indicates
that the detergent system is
enabled.
Sweep Controls
• Broom Height Raise/Lower
Buttons
– raise and lower the
selected broom from its current
position.
• Side Broom Switch – enables and
disables the side brooms. Note
that if you switch off the side
brooms, the DustGuard™ spray
nozzles will also switch off.
• One-touch Sweep Switch –
enables the main broom, side
brooms, dust control fan and
DustGuard™ spray nozzles.
• Main Broom Float Switch –
directs the main machine
controller to drive the main
broom actuator all the way
down so the weight of the main
broom is resting on the oor.
The linkage is slotted to allow
the broom to follow the contour
of the oor.
Scrub
Pressure
Indicators
Solution
Flow
Indicators
Burst of
Power
Indicator
(EcoFlex™
only)
Vacuum/
Wand
Indicator
Detergent
Indicator
One-touch
Sweep
Switch
Broom
Height
Lower
Button
Broom
Select
Switch
Broom
Height
Raise
Button
Side
Broom
Switch
Dust-
Guard™
Spray
Switch
Filter
Shaker
Switch
Dust
Control
Fan
Switch
Main
Broom
Float
Switch
