Recovery System 298Service Manual – CS7000
6. Pull the Collar on the quick-disconnect tting
and disconnect the Solution Hose.
7. Disconnect the Tether Hook and carefully tip
and lift the recovery tank off of the mounting
pins on the machine frame.
Service Note: You may want to lay the
recovery tank down onto
a skid or other suitable
platform on a pallet jack
in order to more easily
move the recovery tank
once it’s removed from the
machine.
To Reinstall the Recovery Tank
1. Set the recovery tank onto the mounting pins on the machine frame.
2. Swing the recovery tank up and reattach the Tether Hook to the recovery tank.
3. Reconnect the recovery tank vacuum motor electrical connector.
4. Reconnect the extended scrub wiring harness and solution hose (if so equipped).
5. Reinstall the squeegee hose.
6. Swing the recovery tank up into position until the recovery tank latch handle engages.

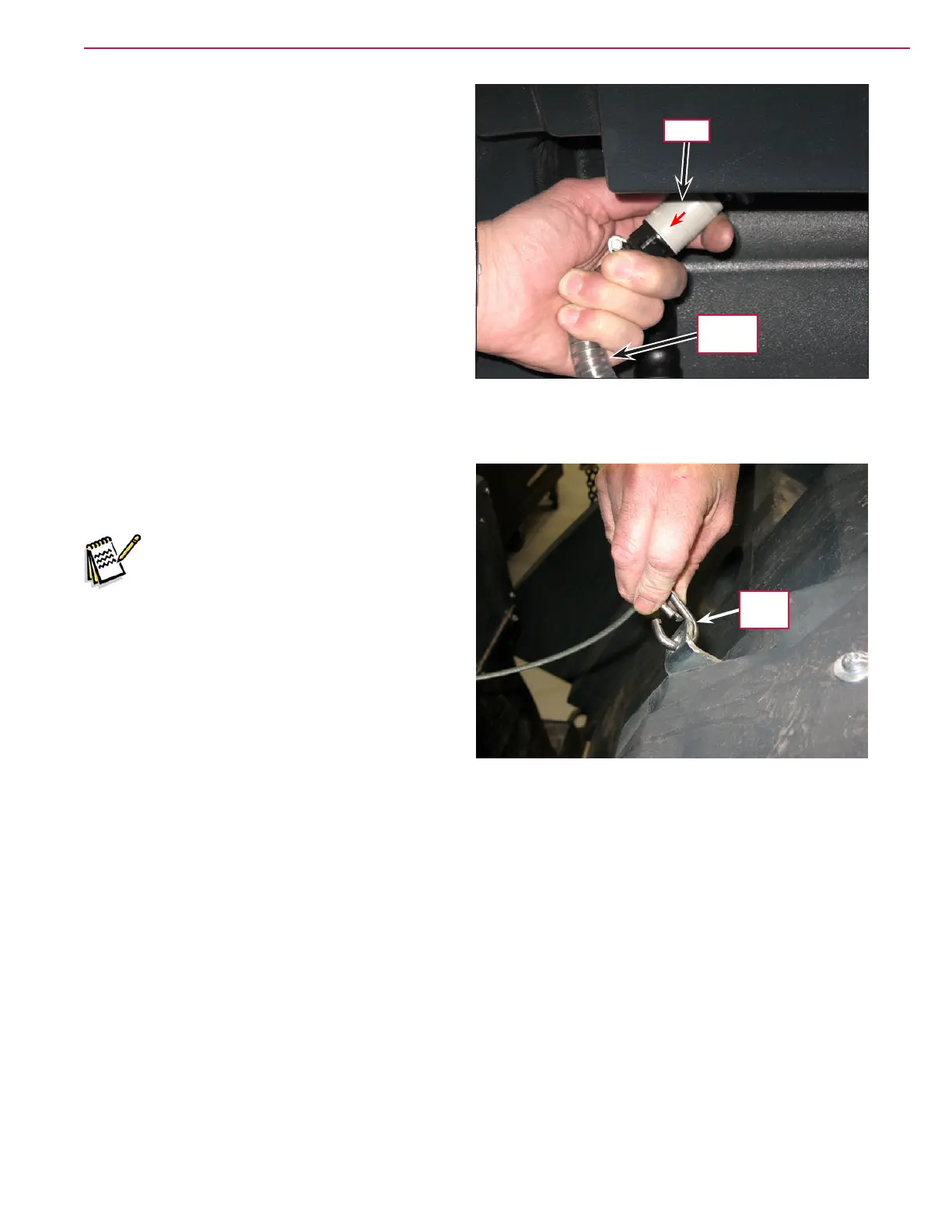

Collar
Solution
Hose
Tether
Hook
