Engine System, Diesel 239Service Manual – CS7000
Replace Air Filters
1. Remove left side engine cover.
2. Open right side engine cover and swing out fuel tank.
3. Remove the top engine covers by:
a. Disconnecting the gas spring from one end.
b. Remove two bolts, one on each side, under the cover and lift the cover assembly off.
4. Release the latches and remove the air lter housing cover.
5. Remove the outer lter element.
6. Blow out air cleaner housing with compressed air with inner lter element still in place to prevent dirt
from entering the engine air intake.
7. Remove the inner lter element.
8. Clean residual dust from the inside of the air cleaner housing, taking care to prevent any dirt or debris
from entering the air intake.
9. Install a new inner lter element and then the new outer lter element making sure that they seal well
at their ends.
10. Install the air cleaner housing cover. “Top” is indicated on the cover.
11. Set the top engine cover in place.
12. Install the two fasteners nger tight, then close the cover and allowing it to latch properly.
13. Now, tighten the fasteners with a wrench.
14. Open the top cover, swing the fuel tank back into position and the right engine cover.
15. Install the left engine cover.
Remove
Remove

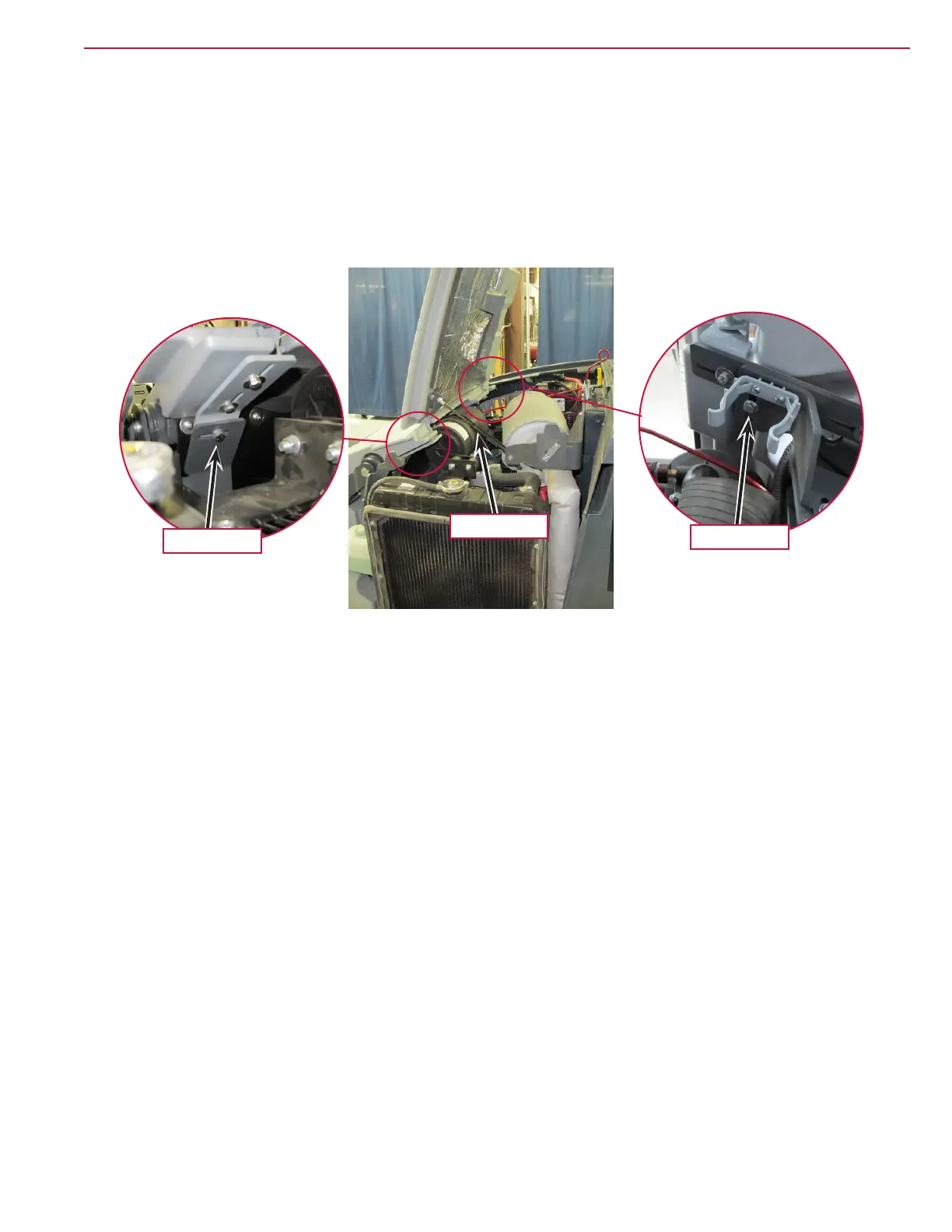

Remove Top Engine Cover Fasteners
