Sweep System, Side Broom 407Service Manual – CS7000
Specications
Component Specications
Side Broom Motors (all)
No-load Speed - 2,800 RPM
Rotation - Clockwise
Voltage - 42 VDC
Power - .25 HP, Continuous Duty
Side Broom Motor - Left
Current Draw (shop
measurements)
Average - 3 Amps Max. - 4 Amps
Side Broom Motor - Right
Current Draw (shop
measurements)
Average - 3 Amps Max. - 4 Amps
Side Broom Actuator
36 VDC, 1/6 HP
Motor-to-drive screw ratio - 21.7:1
Drive Nut Cylinder Positions
Retracted Position -
8.00”
Extended Position -
9.75”
Current Draw (shop measurements) Average - 2 to 3 Amps
Performance data for the following load conditions:
No load Full load Start
Thrust - 0 lbs Thrust - 600 lbs Thrust 600 - lbs
Speed - 39 in/min Speed - 30 in/min
Amps - 1.4 Max Amps - 6.7 ±1.0

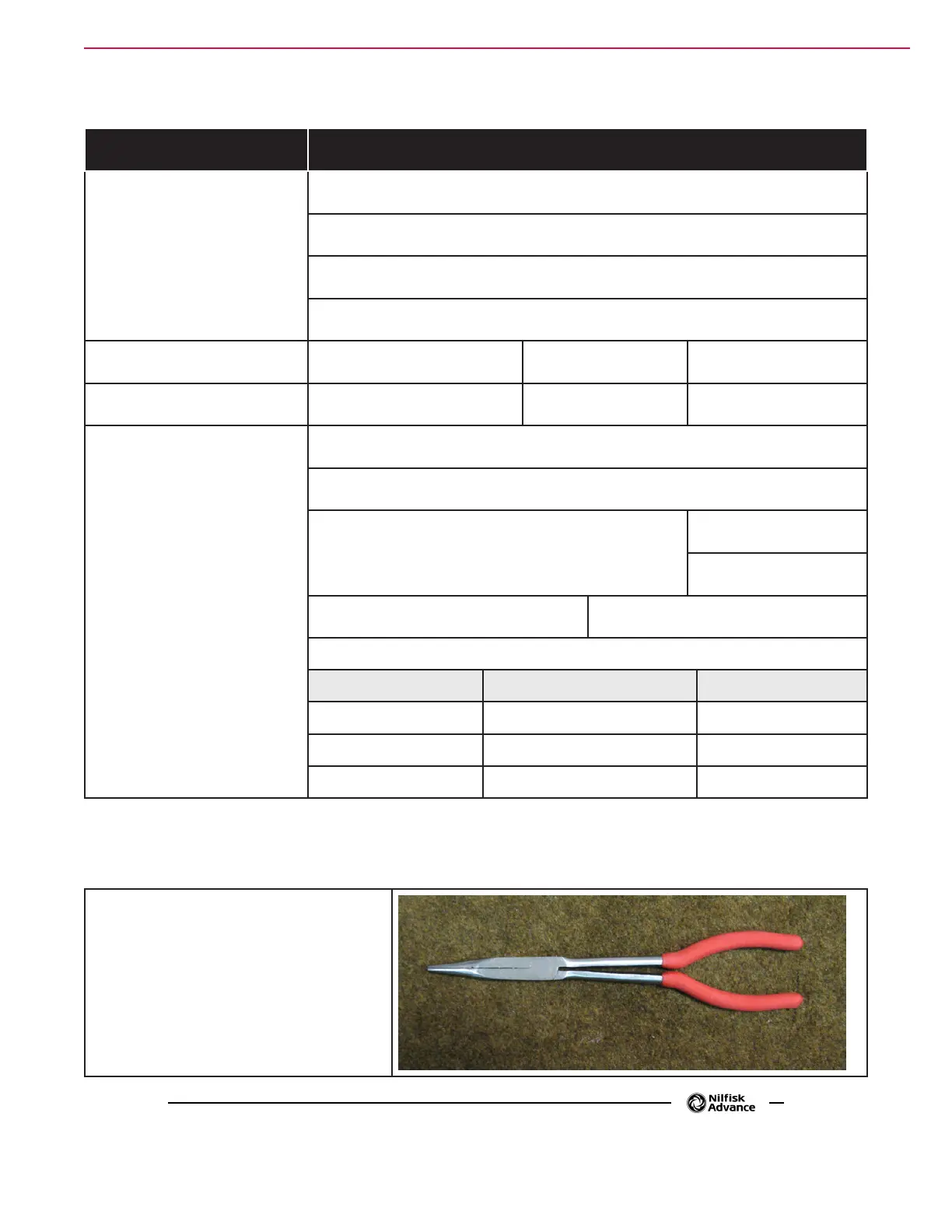

Special Tools
A long needle-nose pliers is recommended
to remove the hair cotter pin when
removing/reinstalling the side broom
actuator. The photo shown here is a
typical example.
