Diesel Machine

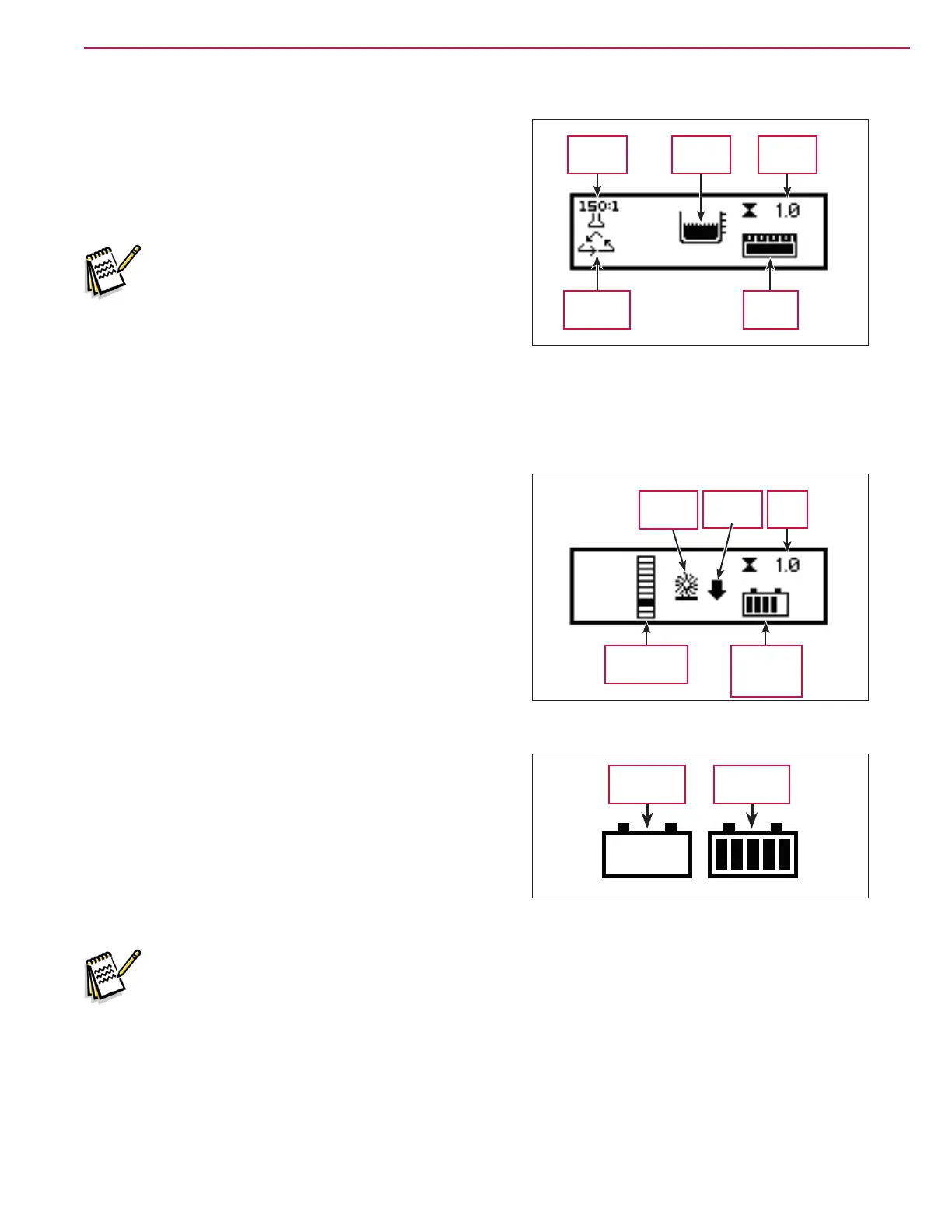

The general LCD display on the diesel machine shows the
solution level in the solution tank, the total engine run
time, the recycle system icon (if actuated) and the fuel
tank level. If the machine is equipped with an EcoFlex™
system, the display will also show the detergent system
icon and current dilution ratio.
Note: The fuel level will be displayed while the
engine is running.
Broom Adjustment (Battery, LPG and Diesel)
The broom adjustment LCD display shows the main
broom position, the broom(s) selected for adjustment,
the broom movement, the total run time and the battery
charge/fuel level.
Battery Charge Indicator
The battery charge indicator shows the charge state of
battery and will retain the charge state when the key is
turned off. Five vertical bars indicates a fully-charged
battery after a complete charging cycle. No bars indicates
a discharged battery. Note that no bars will be shown if
the machine is in the low-voltage cutout mode.
You can choose between two different low-voltage cutout
thresholds depending on whether maintenance-free or
standard batteries are being used.
Note: The following percentages are based on useable battery capacity not total battery capacity.
Therefore, 100% discharge = 80% of total battery capacity for standard wet cell batteries, or
70% of total battery capacity for maintenance-free batteries.
Dilution
Ratio
Solution
Level
Engine
Run Time
Recycle
System
Fuel
Level
Run
Time
Main Broom
Position
Battery
Charge/
Fuel Level
Broom(s)
Selected
Broom
Direction
Zero Bars:
Discharged
Five Bars:
Charged
