– Battery machines – increases the machine scrub speed to the full transport speed.
• Headlight Switch – switches on the headlights.
• Horn Button – sounds the horn when pressed.
• High-pressure Wand Switch – engages the high-pressure spray wand solution pump (LPG and diesel only).
• Extended Scrub Switch – enables the optional extended scrub (recycle) function.
Miscellaneous Indicators
• Attention Indicator – lights to
alert the Operator of a machine
condition requiring attention.
• Left and Right Turn Indicators –
indicates that the corresponding
turn signal is ashing.
• Warning Indicator – lights to
alert the Operator of a warning
or fault condition.
• Extended Scrub Indicator – lights
to indicate that the extended
scrub function is enabled.
• High-speed Indicator – lights
to indicate that the engine is
running at high speed.
• Headlight Indicator – lights to
indicate that the headlights are
on.
• High-pressured Wand Indicator –
lights to indicate that the wand
high-pressure pump is engaged.

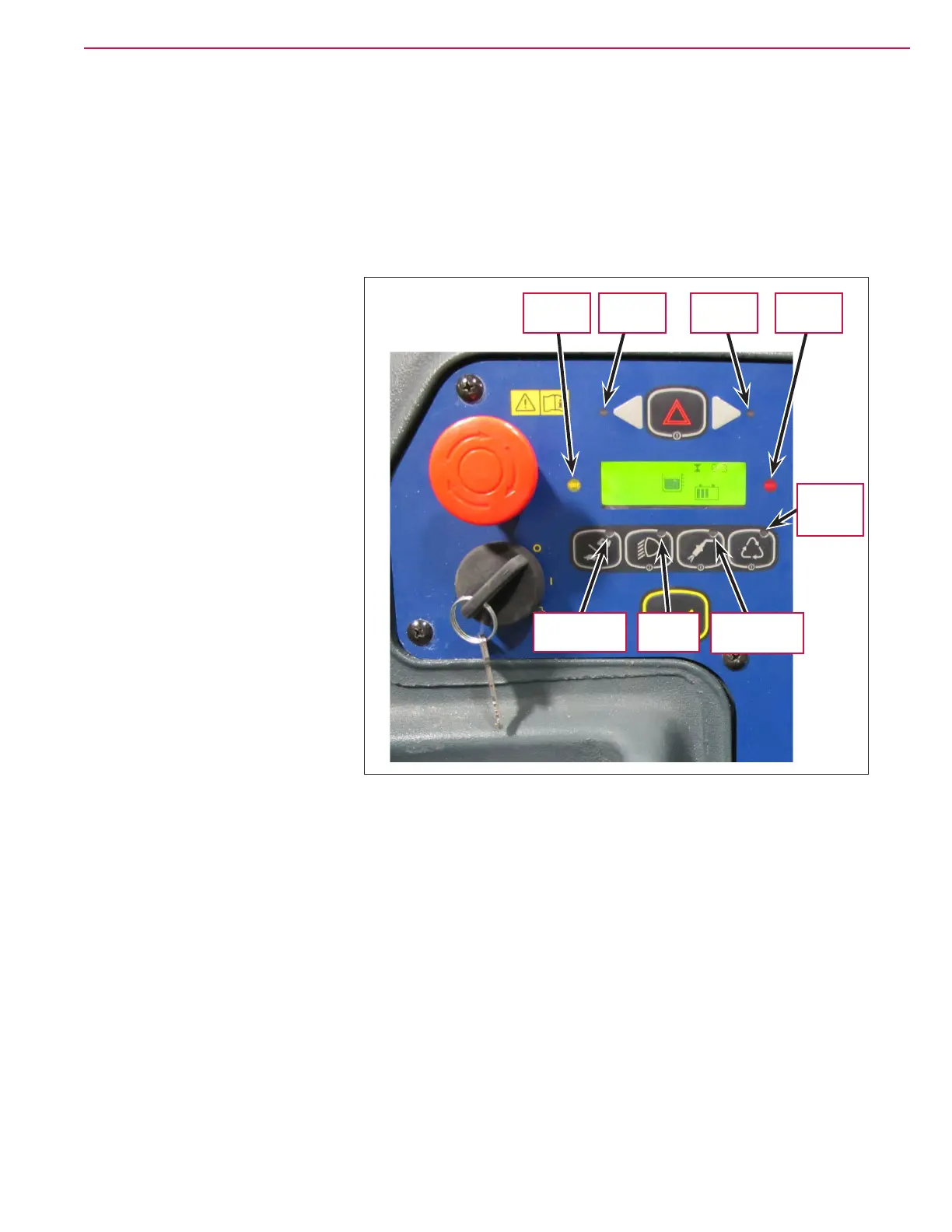

Extended
Scrub
Indicator
High-pressure
Wand Indicator
Attention
Indicator
Left Turn
Indicator
Right Turn
Indicator
Warning
Indicator
High-speed
Indicator
Headlight
Indicator
