Squeegee System 353Service Manual – CS7000

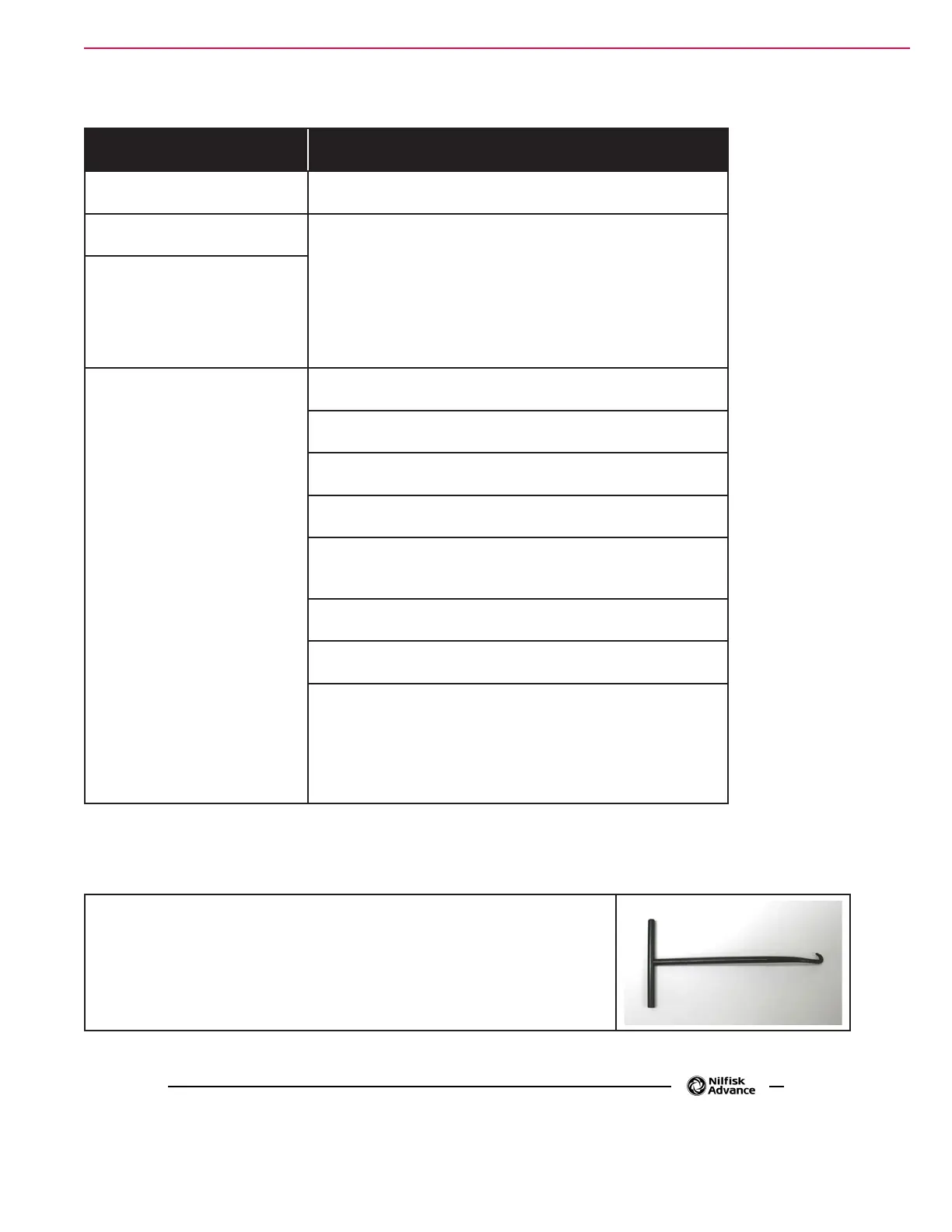

Specications
Component Specications
Squeegee Tool Assembly
Squeegee Blade, Front,
Red Gum
Material - Linatex 40
Color - Red
Hardness - 40 ±5 Shore A Durometer
Tensile Strength - 3000 Psi Minimum
Elongation - 600% Minimum
Squeegee Blade, Rear, Red
Gum
Squeegee Lift Actuator
Dynamic Load - 200 lbs. maximum
Static Load - 250 lbs. maximum
Restraining Torque - Actuator is internally restrained
Amperage - 3 Amps at rated dynamic load
End of Stroke - Actuator has internal limit switches
connected to the motor to shut off power at ends of
stroke
Overload Protection - Ball detent clutch with load rating
between 250 and 500 lbs.
Thermal Protection - Automatic resetting thermal breaker
enclosed in motor housing.
Wiring Polarity:
• To extend actuator, connect red lead to positive and
orange lead to negative.
• To retract actuator, connect orange lead to positive
and red lead to negative.
Special Tools
A spring puller is recommended to remove the Extension Springs from
the Squeegee Support Assembly and Squeegee Lift Arm when removing these
components. There are several types of spring pullers - a typical example is
shown here.
