Sweep System, Side Broom 397Service Manual – CS7000

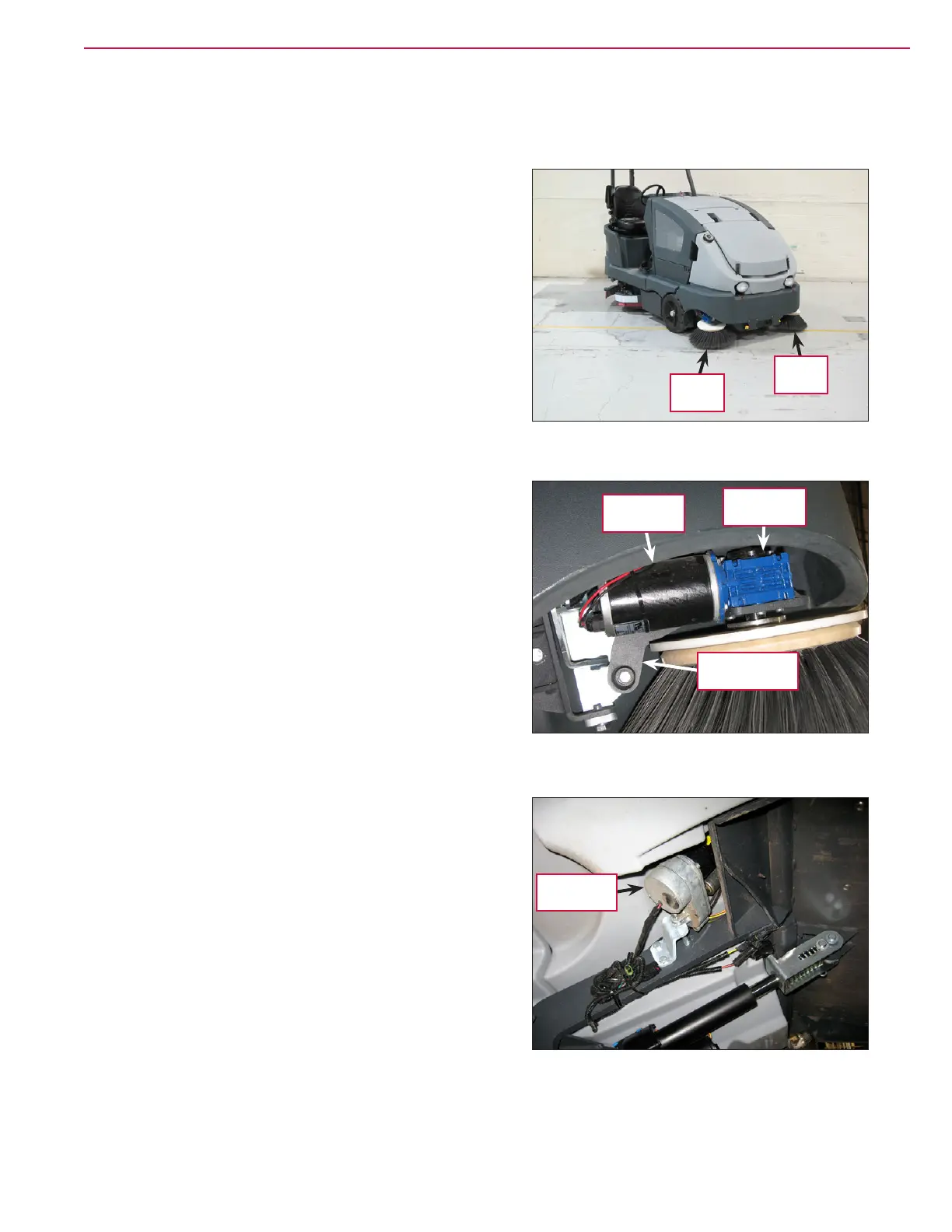

Component Locations

Side Brooms

The Side Brooms are mounted on the front corners of the

machine, below the hopper.

Side Broom Motor Assemblies

The side broom motor assemblies consist of the Side

Broom Motors

and Side Broom Gearbox. The Side Broom

Motor Assemblies

are mounted on Side Broom Arm

Assemblies

connected to the side broom lift weldment.

Side Broom Actuator

The Side Broom Actuator is on the upper hopper and lowers

and raises the side broom lift weldment and attached side

broom motor assemblies.

Side

Broom

Side

Broom

Side Broom

Motor

Side Broom

Gearbox

Side Broom Arm

Assembly

Side Broom

Actuator
