EcoFlex™ Detergent Bottles and Pumps
The EcoFlex™ Detergent Bottles are located
underneath the Operator seat and supply
detergent to the two EcoFlex™ Detergent
Pumps
. The two EcoFlex™ Detergent Pumps
run simultaneously and pump detergent
through separate lines that merge into one
main detergent supply line. The detergent
supply line is plumbed into the solution
supply upstream of the solution solenoid
valve.
High-pressure Spray System Pump
The High-pressure Pump is driven by an
Electric Clutch run by a Pulley off of the
engine. The Electric Clutch is engaged and
drives the High-pressure Pump when the
Operator presses the high-pressure wand
switch on the control panel.

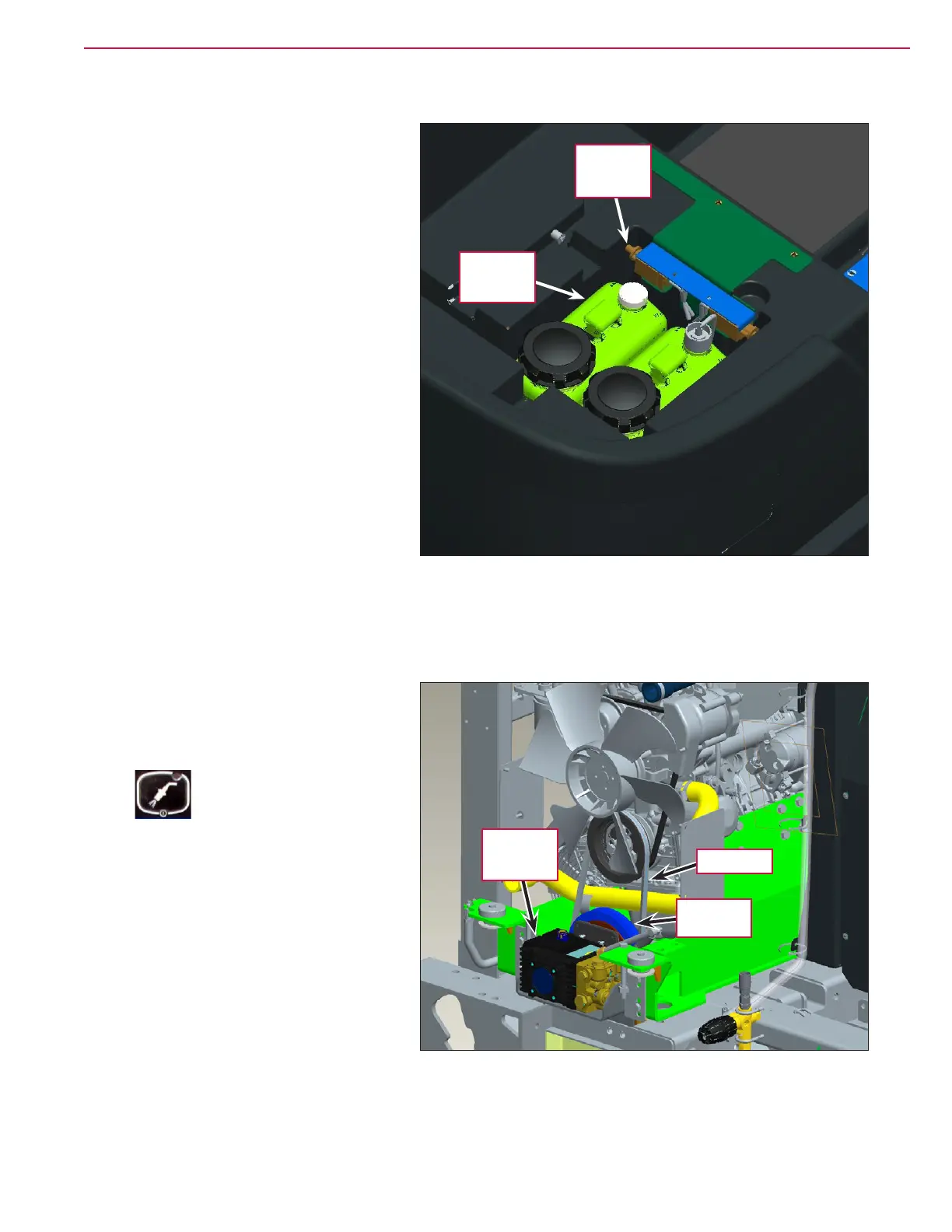

EcoFlex™
Detergent
Bottle (2)
EcoFlex™
Detergent
Pump (2)
High-
pressure
Pump
Electric
Clutch
Pulley
