Steering System 370Service Manual – CS7000

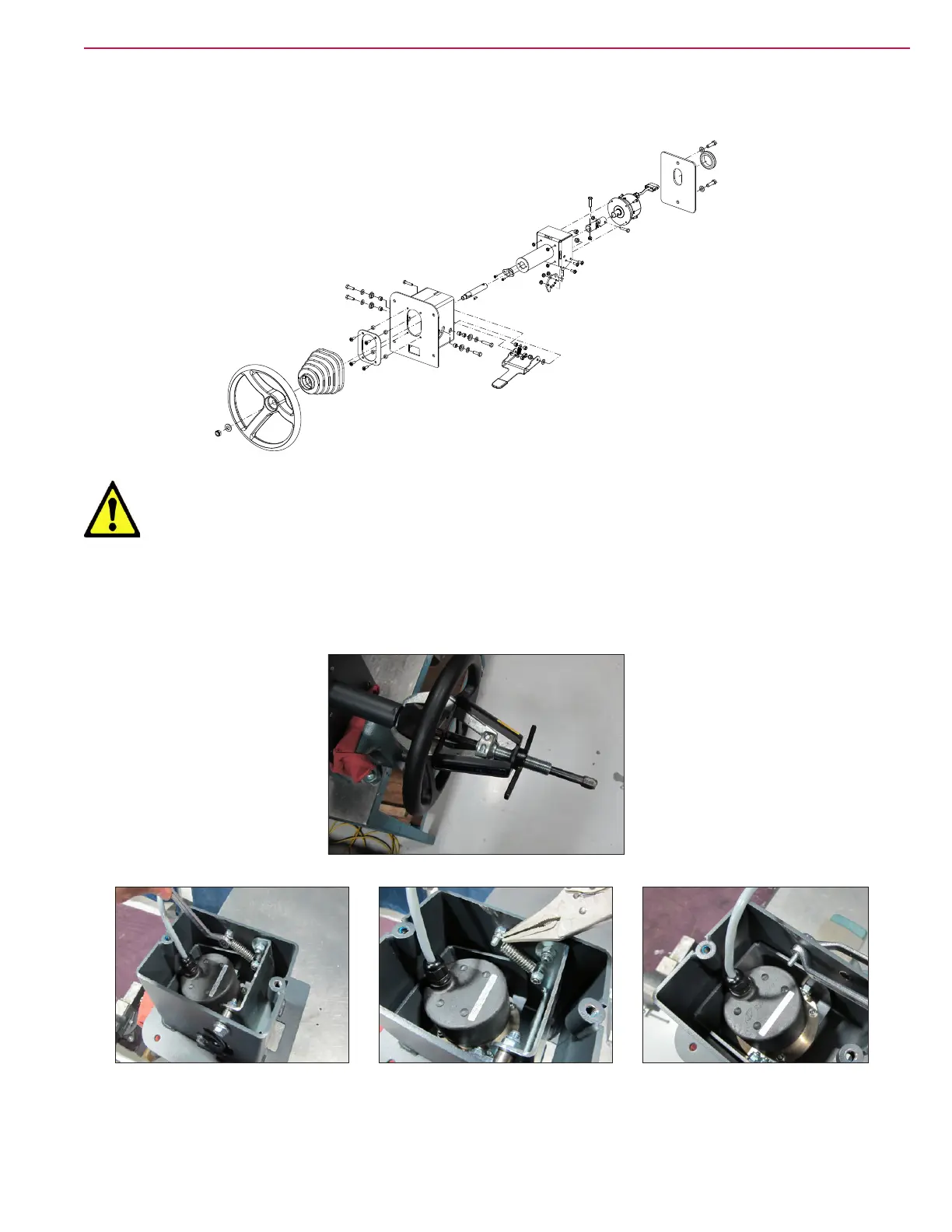

Steering Wheel Rotation Sensor

Caution! Do not hit steering wheel shaft with a hammer to remove the steering wheel. Doing

so may damage the encoder inside the steering wheel sensor.

Remove steering wheel assembly (See Steering Wheel Assembly section directly above).

6. Remove steering wheel nut and washer.

7. Remove steering wheel using a three jaw puller. DO NOT hit the shaft with a hammer.

8. Remove retaining nut, spring and spring anchor hardware
