Dust Control/DustGuard
™
Systems 87Service Manual – CS7000
– The A1 Main Machine Controller must receive a signal from the A2 Drive Controller via the CAN BUS that
the machine is moving forward.
• The J2-18 Output provides the negative ground to the Shaker Motor M14 under the following conditions:
– If the hopper is down and the DustGuard™ system is enabled, the A1 Main Machine Controller will
switch on the Shaker Motor M14 automatically for preset duration when the sweep system is switched
off.
– If the hopper is up, the A1 Main Machine Controller must receive a signal from the A3 Operator Interface
Panel
via the CAN BUS that the operator has pressed the lter shaker switch (blue LED on).

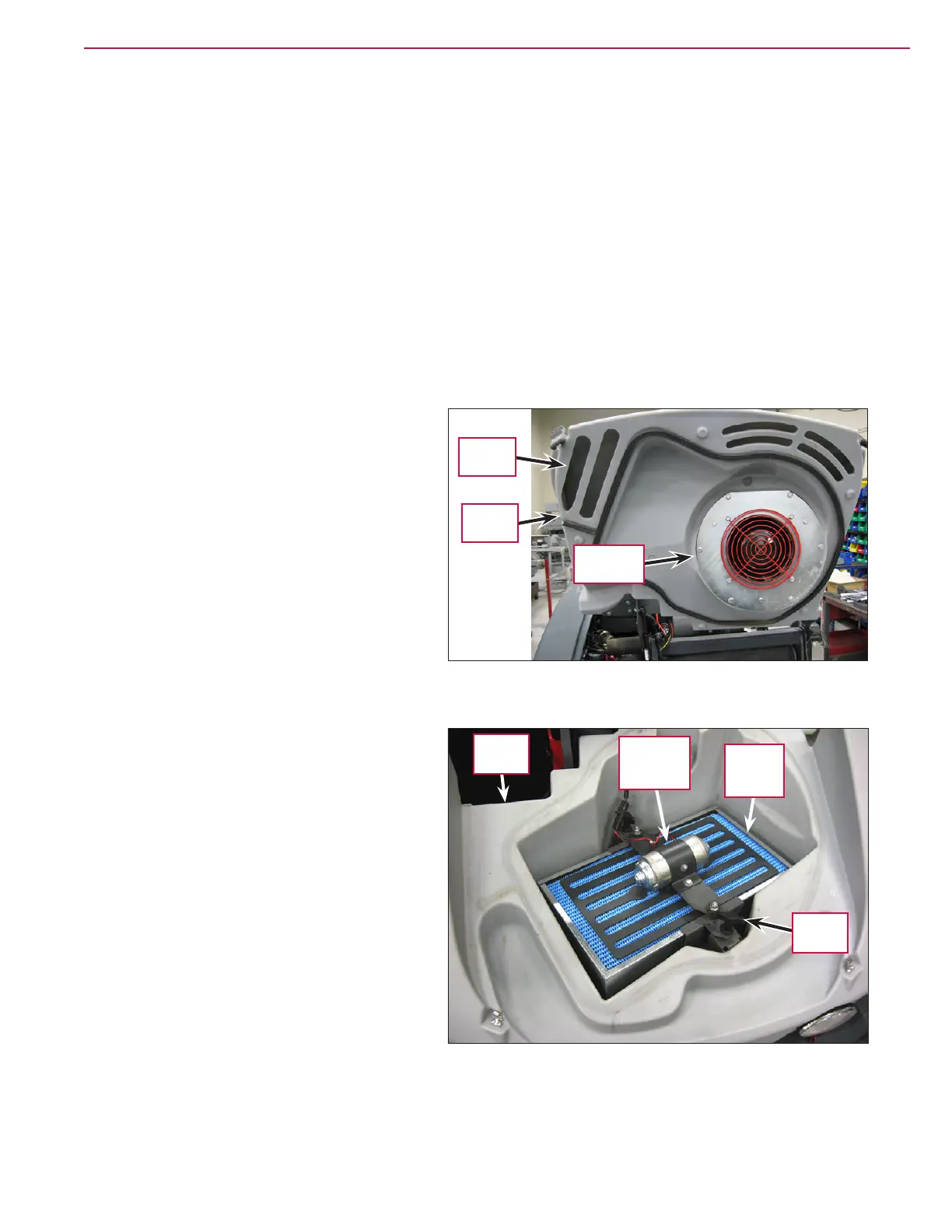

Component Locations
Impeller and Filter System
The Impeller Assembly houses the dust control
vacuum motor and is mounted in the Hopper
Cover
. The Impeller Assembly pulls air from
the hopper through the lter. The ltered air
is exhausted through Vents in the front of the
Hopper Cover.
The rectangular Dust Control Filter seals
against the Upper Hopper and is held in place
by the Filter Shaker Assembly.
The electric motor in the Filter Shaker Assembly
drives two eccentric weights to vibrate or
“shake” the Dust Control Filter to dislodge dust
and allow it to drop down into the hopper. Two
Thumb Nuts secure the Filter Shaker Assembly
and Dust Control Filter to the Upper Hopper.
Impeller
Assembly
Hopper
Cover
Vent
(typical)
Upper
Hopper
Dust
Control
Filter
Filter
Shaker
Assembly
Thumb
Nut (2)
