Scrub System 309Service Manual – CS7000
To Remove and Reinstall the Scrub Deck Actuator
1. Remove the recovery tank (refer to the Recovery System section).
2. Turn on the key switch and put the machine into the Service Test mode to allow you to jog the scrub
deck up and down.
3. Extend the scrub deck downward in
the Service Test mode to minimize the
weight on the Scrub Deck Actuator.
4. Disconnect the Scrub Deck Actuator
electrical connector
5. Remove the Bow-tie Cotter Pin,
washers and Clevis Pin holding the
Scrub Deck Actuator to the Deck Lift
Arm Assembly
.
6. Remove the Bow-tie Cotter Pin and
Clevis Pin holding the Scrub Deck
Actuator
to the machine frame, then
remove the Scrub Deck Actuator from
the machine.
7. Reinstall the Scrub Deck Actuator by following the above steps in reverse order.
To Remove and Reinstall the Scrub Deck
1. Remove the recovery tank (refer to the Recovery System section).
2. Make sure the solution shutoff valve is closed, then disconnect the solution hose to the solution solenoid
valve.
3. Turn on the key switch and put the machine into the Service Mode to allow you to jog the scrub deck up
and down.

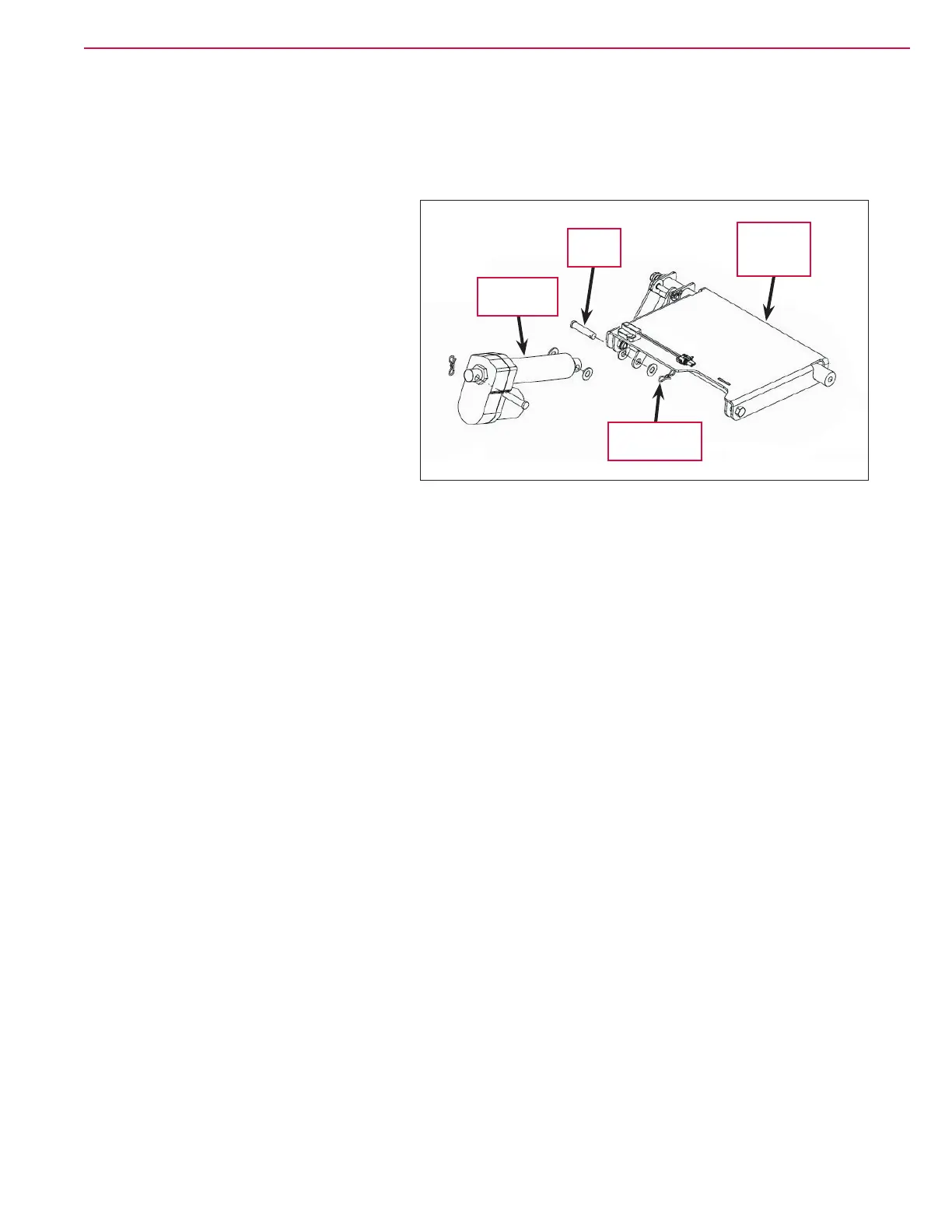

Scrub Deck
Actuator
Bow-tie Cotter
Pin (2)
Clevis
Pin (2)
Deck
Lift Arm
Assembly
To Next Page
