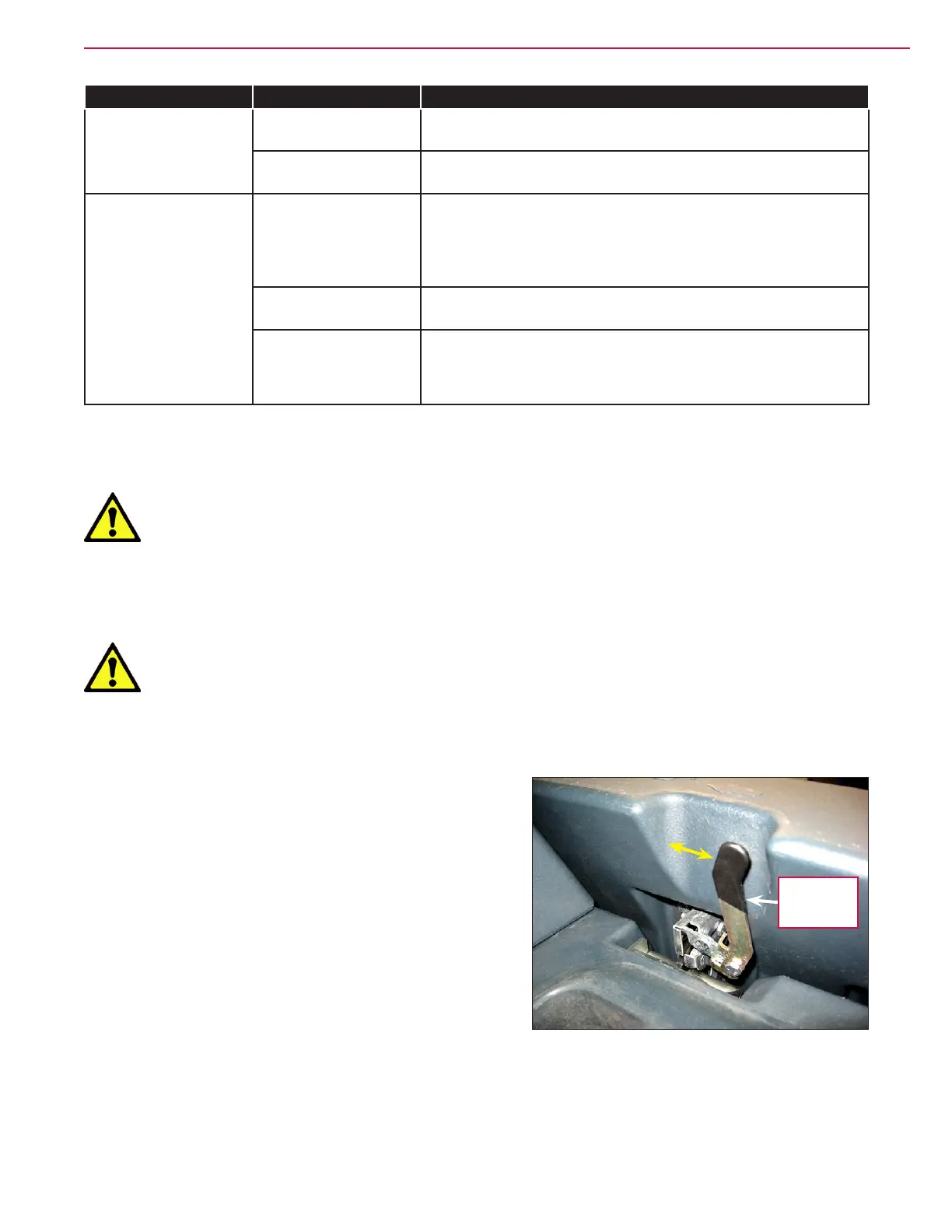

Recovery System 296Service Manual – CS7000
Problem Cause Correction
An individual vacuum
motor will not run.
No voltage to the
vacuum motor.
Check the wiring and connections to the vacuum motor and
repair as necessary.
The motor is not
operating correctly.
If there is voltage to the vacuum motor, replace the motor.
Poor water pick-up. There is a vacuum
leak between the
squeegee weldment
and the recovery tank.
• Make sure the squeegee hose is installed correctly in the
recovery tank and on the squeegee weldment.
• Check the squeegee hose for blockage, damage or cracks
and repair/replace as necessary.
The squeegee is
plugged.
• Check the squeegee and clean/repair as necessary.
The squeegee
blade(s) is/are worn
out.
• Flip the squeegee blade(s) around to position a new blade
surface on the oor.
• Replace the squeegee blade(s).
Removal and Installation
Warning! Before removing or reinstalling any machine components, make sure the key switch
is off, the key is removed from the machine and the parking brake is engaged.
To Remove the Recovery Tank
Caution: The recovery tank is relatively heavy. It’s recommended that the recovery tank be
removed by two or more persons to prevent possible personal injury or damage to
the recovery tank.
1. Drain the recovery tank.
2. Release the Recovery Tank Latch Handle and tip the
tank away from the machine.
3. Remove the squeegee hose from the recovery tank.
Recovery
Tank Latch
Handle
To Next Page
