Recovery System 299Service Manual – CS7000

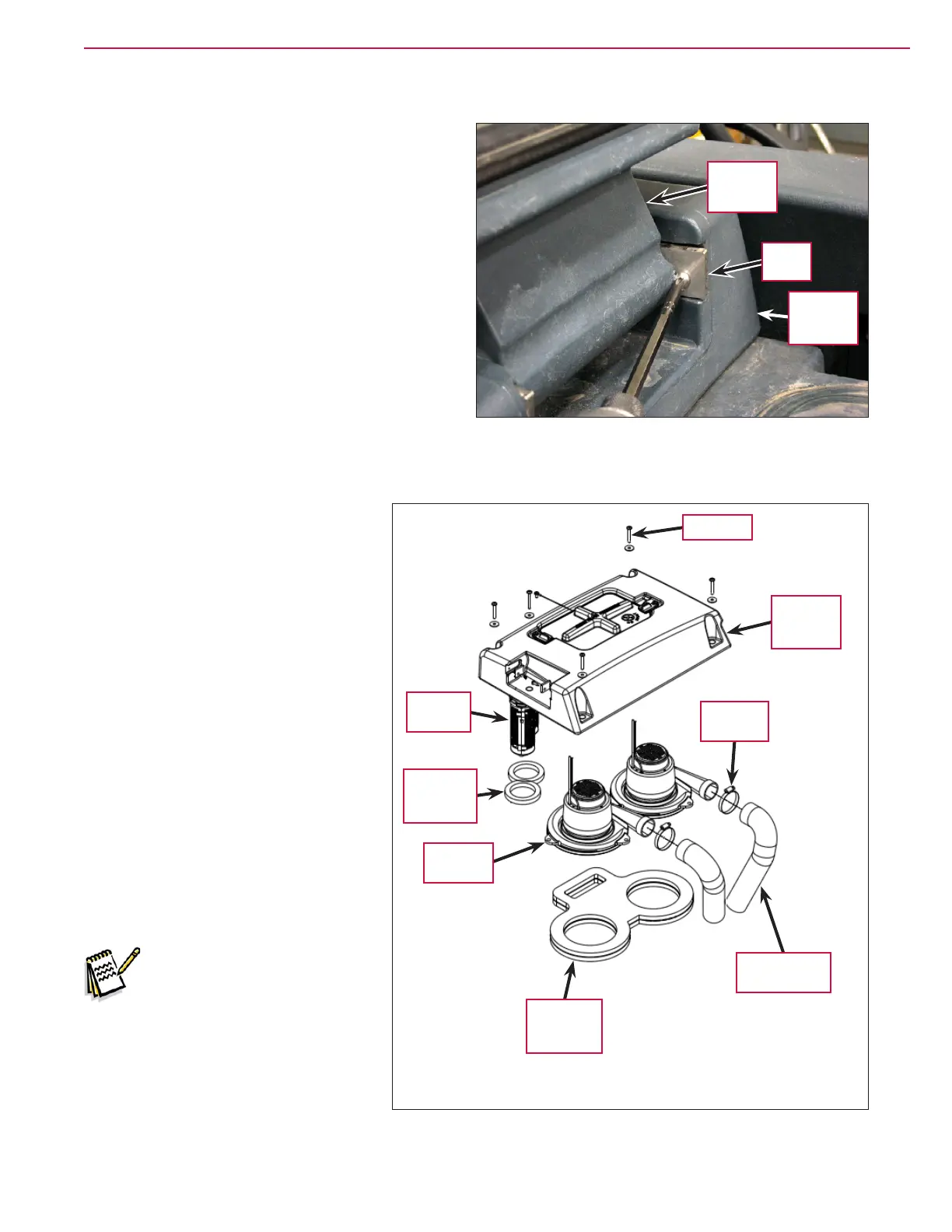

To Remove and Reinstall a Vacuum Motor
1. Lift up the Recovery Tank Cover.
2. Remove one of the Hinge Tabs, then twist and
remove the Recovery Tank Cover from the
Vacuum Fan Cover Assembly. This will allow
access to the screw underneath the Recovery
Tank Cover
that holds the Vacuum Fan Cover
Assembly
to the recovery tank.
3. Remove the ve Screws and
washers holding the Vacuum Fan
Cover Assembly
to the recovery
tank.
4. Carefully lift the Vacuum Fan
Cover Assembly
off of the recovery
tank, making sure the Float Cages
pass up through the cutouts in the
tank.
5. Disconnect the Vacuum Motor
electrical connector.
6. Loosen the Hose Clamp and
disconnect the Foam Tube
Assembly
from the Vacuum Motor.
7. Carefully lift the Vacuum Motor out
of the recovery tank.
8. Reinstall the Vacuum Motor by
following the above steps in
reverse order.
Note: Before you reinstall a
vacuum motor, check
the Vacuum Fan Seal
Assembly
and the
Vacuum Duct Gaskets
for any wear or
damage and replace
if necessary.
Vacuum
Fan Cover
Assembly
Hinge
Tab
Recovery
Tank Cover
Screw (5)
Vacuum
Fan Cover
Assembly
Float
Cage (2)
Vacuum
Duct
Gasket (2)
Vacuum
Motor (2)
Vacuum
Fan Seal
Assembly
Foam Tube
Assembly (2)
Hose
Clamp (2)
