Dust Control/DustGuard
™
Systems 92Service Manual – CS7000
To Clean the DustGuard™ Strainer Screen
1. Drain the water from the upper hopper. Note that you can do this one of several ways. The most
convenient way is to remove the Strainer Cover and Screen and drain the upper hopper through the
DustGuard™ strainer.
Note: Place a suitable container underneath the upper hopper to catch the water from the hopper
reservoir.
2. Raise the hopper and engage the prop rod.
Note: Place a suitable container underneath the lter to catch any water that may leak from the
hoses.
3. Unscrew the Strainer Cover and remove the Strainer Cover and
Screen from the Strainer Base.
4. Clean any accumulated dirt or debris from the Screen.
5. Reinstall the Screen into the Strainer Base.
6. Make sure the Rubber Washer is installed correctly in the Strainer
Cover
, then reinstall and hand-tighten the Strainer Cover.

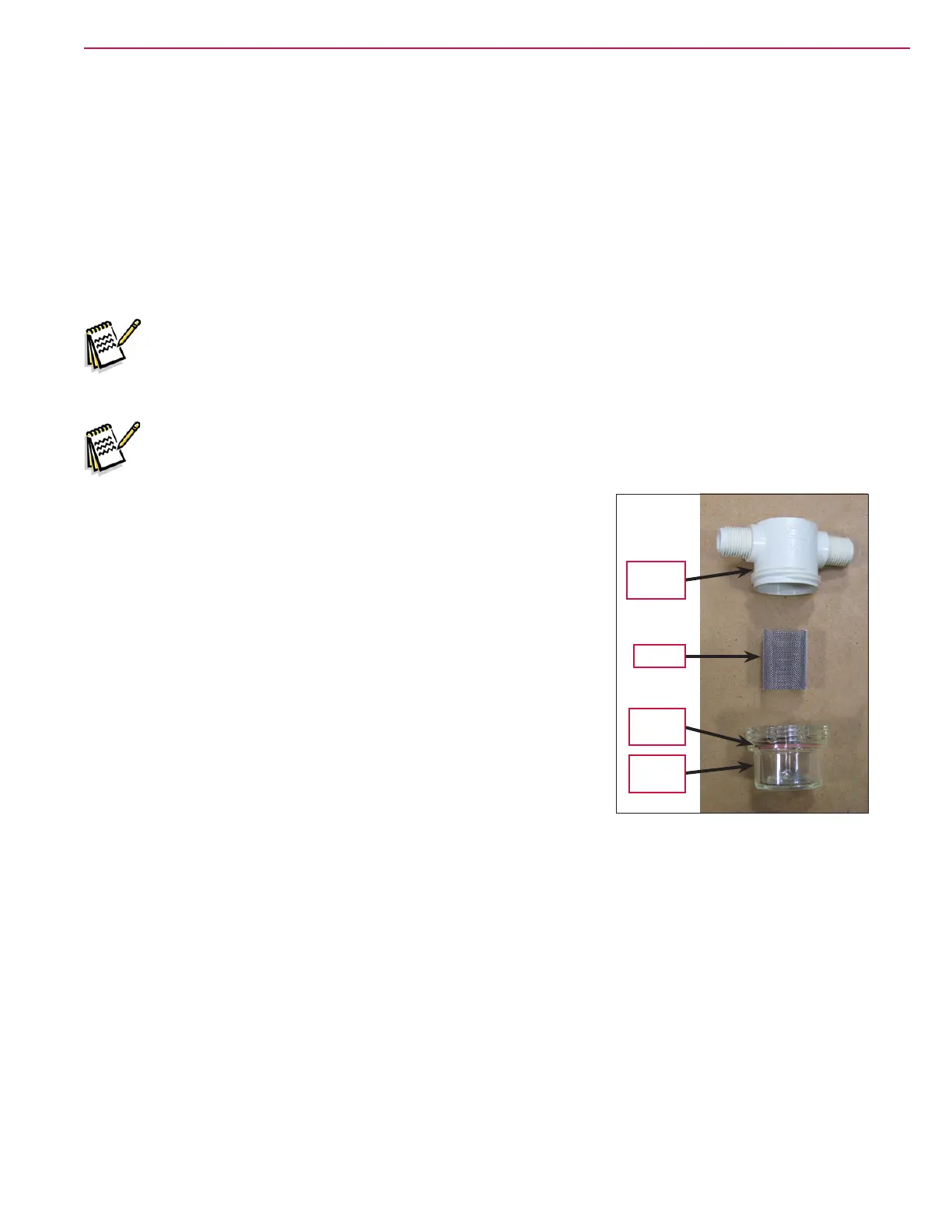

Strainer
Base
Screen
Rubber
Washer
Strainer
Cover
