General Information 35Service Manual – CS7000
Machine Controls

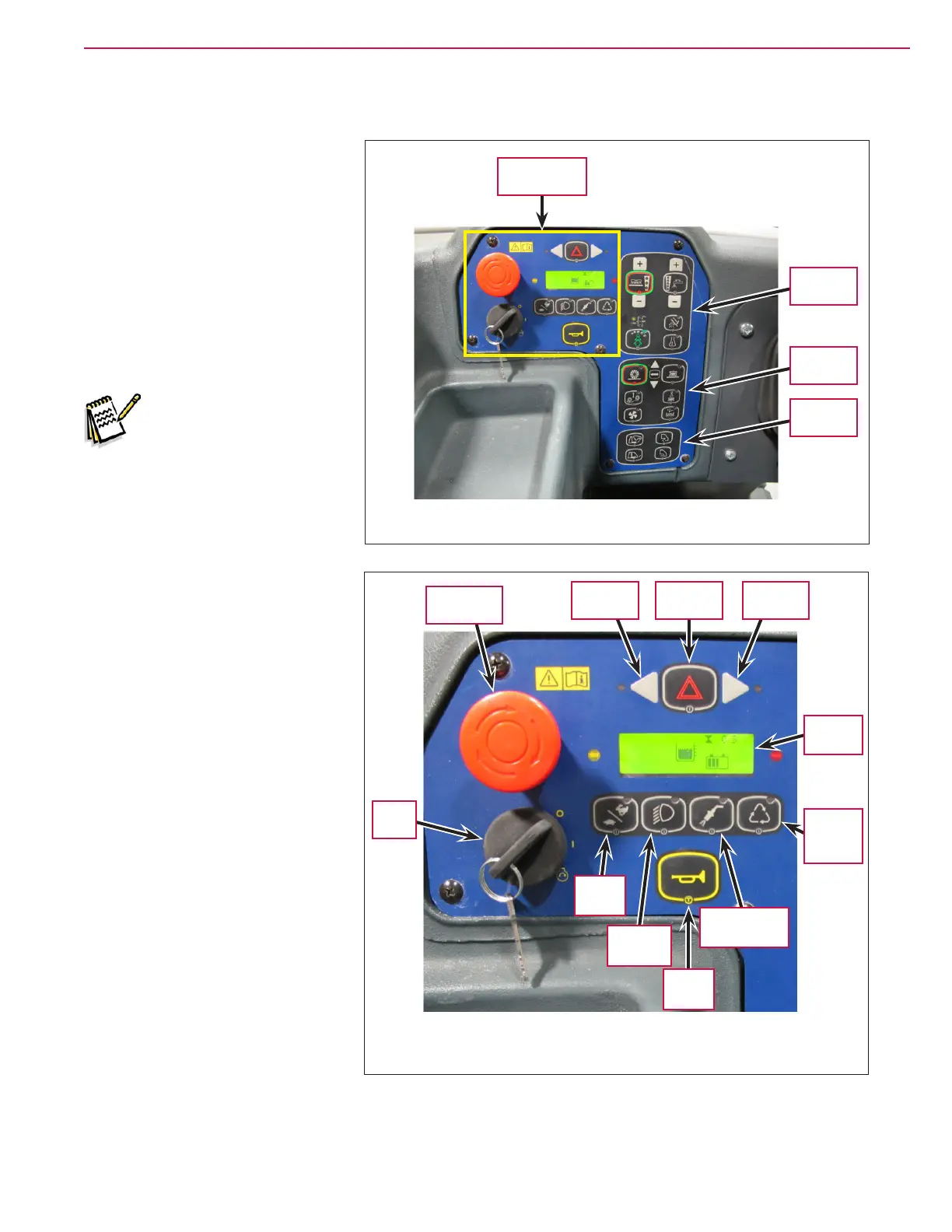

Control Panel - General Layout
Sweeping
Controls
Hopper
Controls
Scrubbing
Controls
Miscellaneous
Controls
The CS7000 control panel is
organized by machine function
with the scrub, sweep and hopper
functions conveniently grouped
together. Miscellaneous controls
such as the key switch, emergency-
stop switch, speed control, light
switch, high-pressure wand
switch, extended scrub system
switch and horn button are located
in front of the Operator.
Note: The switches
with a “I” below them
are press-and-release
switches. The buttons
noted with an “T” below
them are momentary
buttons.
Miscellaneous Controls
• Emergency Stop – maintained
palm switch; removes off all
power to the machine functions
when pressed. To reset the
Emergency Stop switch, rotate
the red knob clockwise.
• Left and Right Turn Signal –
switch on the corresponding
turn signal.
• Hazard Flasher – (optional)
switches on the four-way hazard
ashers.
• Key Switch – main power/
ignition switch.
• LCD Display – displays the
various machine status icons
and informational displays.
• Speed Switch – functions as follows:
– LPG and diesel machines –
increments the engine speed
up and down through the three
speed ranges. Note that the
engine speed will increase automatically when certain machine functions are engaged.
Hazard
Flasher
Left Turn
Signal
Right Turn
Signal
Emergency
Stop
Key
Switch
Headlight
Switch
Horn
Button
High-pressure
Wand Switch
Speed
Switch
Extended
Scrub
Switch
LCD
Display
