Nilfisk-Advance CS7000 Service Manual

394Service Manual – CS7000
Sweep System, Side Broom
Functional Description
Overview
The Side Brooms run in opposite directions
to direct debris from the sides of the
machine toward the center where the
main broom can direct it into the hopper.
The side broom sweep system includes
the Side Brooms, Side Broom Motors, and
the Side Broom Actuator which lowers
and raises the Side Brooms via linkages
connected to the Side Broom LIft Weldment.
The Side Broom Actuator lowers the Side
Brooms
any time the sweep system is
enabled. The Side Broom Motors switch on
when the drive pedal is moved from the
neutral position. The operator can enable
and disable the Side Brooms independent
of the main sweep system.

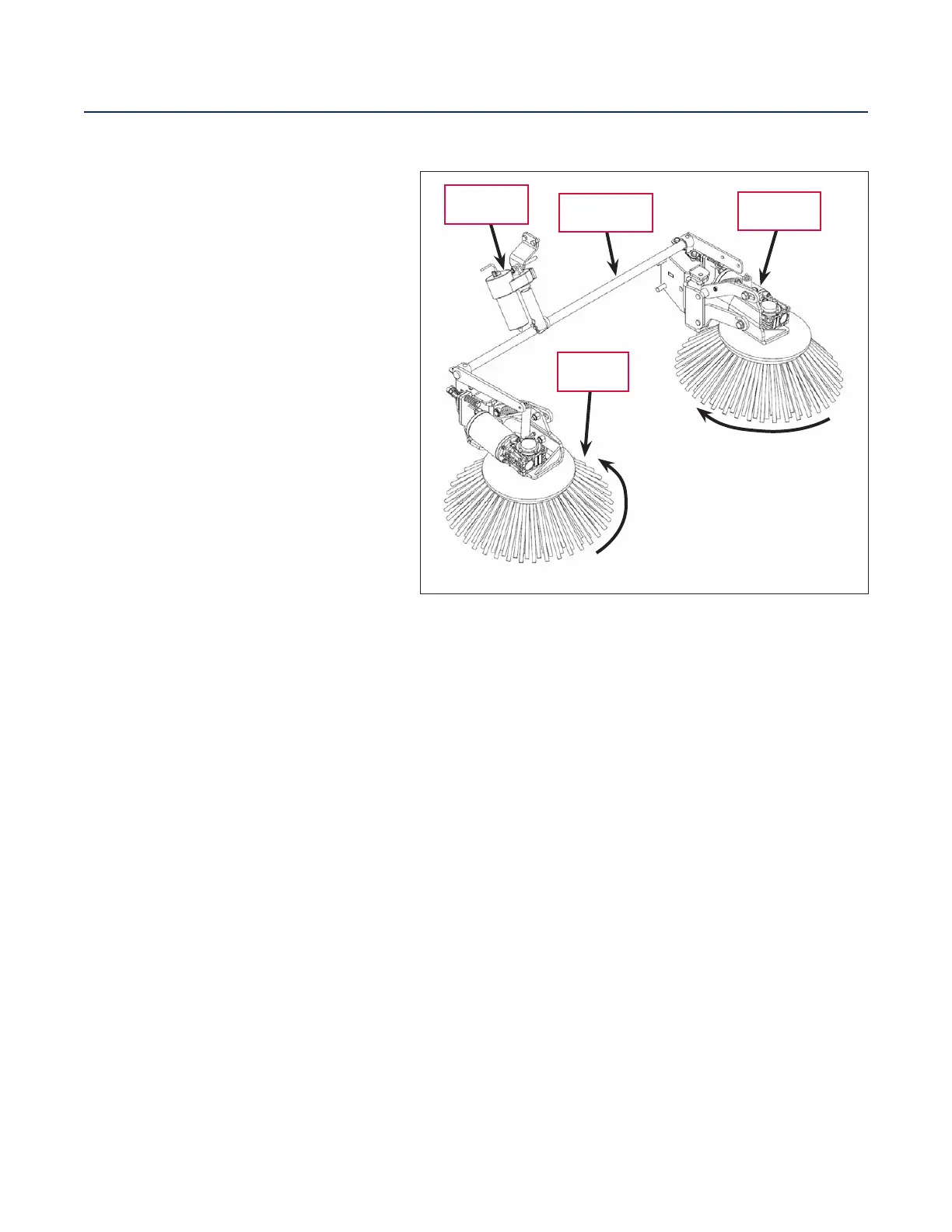

Side Broom
Motor (2)
Side Broom
Lift Weldment
Side Broom
Actuator
Side
Broom (2)
