Dust Control/DustGuard
Systems 85Service Manual – CS7000

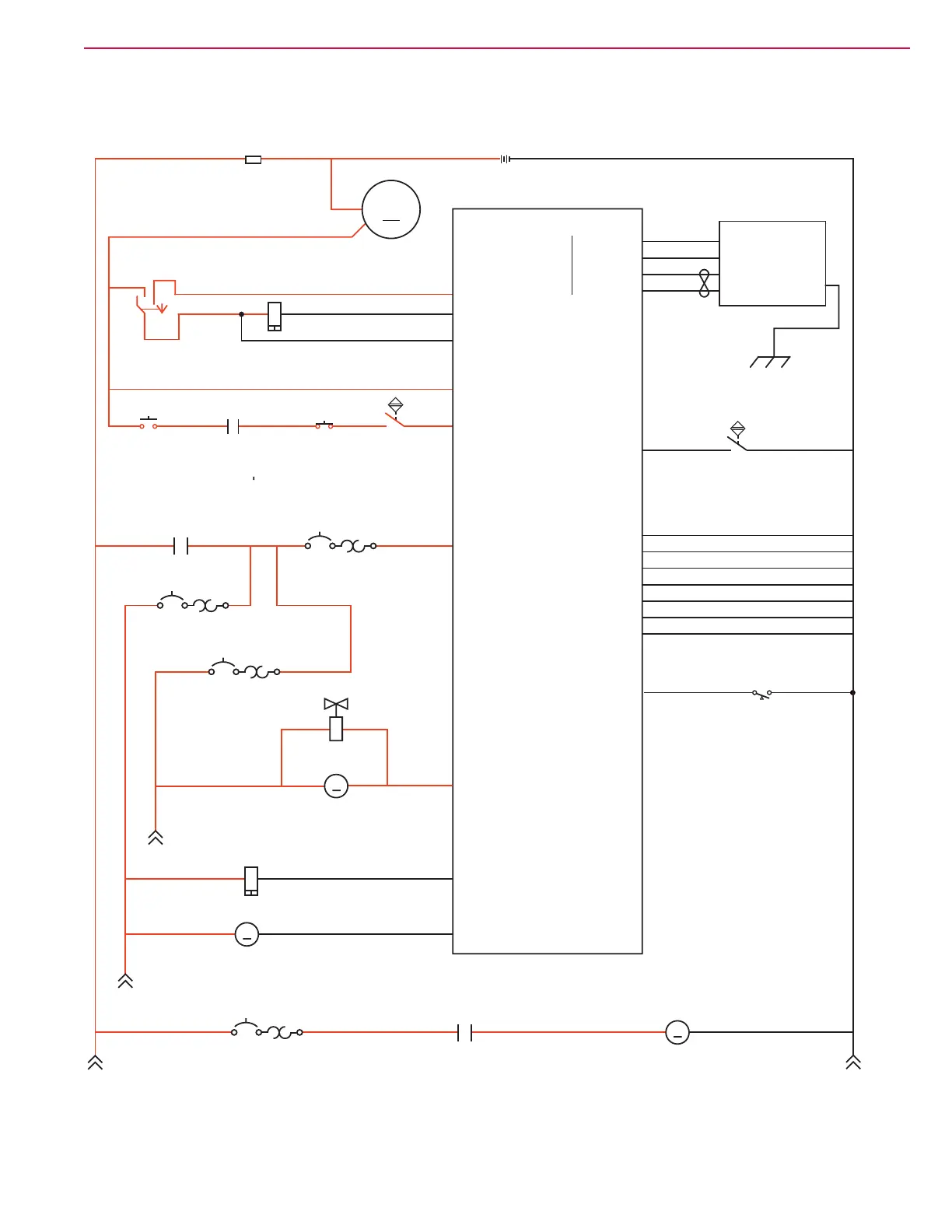

DustGuard™ System Wiring Diagram
Fuse, 400 A
A1 Main Machine Controller
J2-6 Output
RED RED BLK
BLK
J3-15
Ground
F1
K6
Contactor, Dust
Control Motor
Battery
36V
BLK/YEL
J3-13 Output
B-
BLK
J3-16
BLK
J3-18
BLK
J3-19
BLK
J3-20
BLK
J3-21
BLK
BLK
J3-29
WHT/GRA
S6
1 2
+ -
J2-18 PWM Output
Shaker
Motor
BLK/RED
Dust Control
Filter Switch
J7-16 Input
Contactor, Aux
VACC3
CB3
25 Amp
1 122
J3-34 Input
Vacc 3a
BLU/GRNRED
GRA/BLK
VIO
K9
VACC1
CB1
S14
Ignition Switch
13
B1
B
3
2
J7-19 Start Input
42V Alternator
J2-14 Output
J7-12 Supression
Diode
VIO/GRN
K9 Aux Contactor
YEL/BRN BLK/ORN
ORN
ORN
+
YEL/BRN
G
J7-13 Key Switch
Input
J7-1 Interlock
Input
ORN
GRA/ORN
ORN
Safety Switch
Relay (signal from
A5 Steer by
Wire Controller)
621 22114
PINK TAN GRN/BLU
K14
Seat Switch
S9
Emergency
Stop Switch
S15
Fe
S13
Battery
Interlock
RED
FROM
F1
A3 Control Panel
CAN
BUS
GRN
YEL
BLK
WHT/BRN
GRN/YEL
Chassis
Ground
J7-10 +12V
J7-11 B-
J7-3 CAN H
J7-2 CAN L
J1-1
J1-2
J1-3
J1-4
J7-14
Input
21
RED/BLK BLK
S3
Hopper
Interlock Switch
Fe
43
VIO
VIO
RED BLK
M14
M
GRA
BLU/GRN
BRN/RED
GRA
Pump - Dust Guard
M22
M
VACC2
CB2
25 Amp
21
Dust Guard
Valve
L2
12
Dust Control
Motor
BLK
RED
A1 A2
M5
M
Contactor, Dust
Control Motor
Dust Control
Motor CB5
10 Amp
112 2
ORN/GRNBRN/WHT
K6
