Hopper System 265Service Manual – CS7000

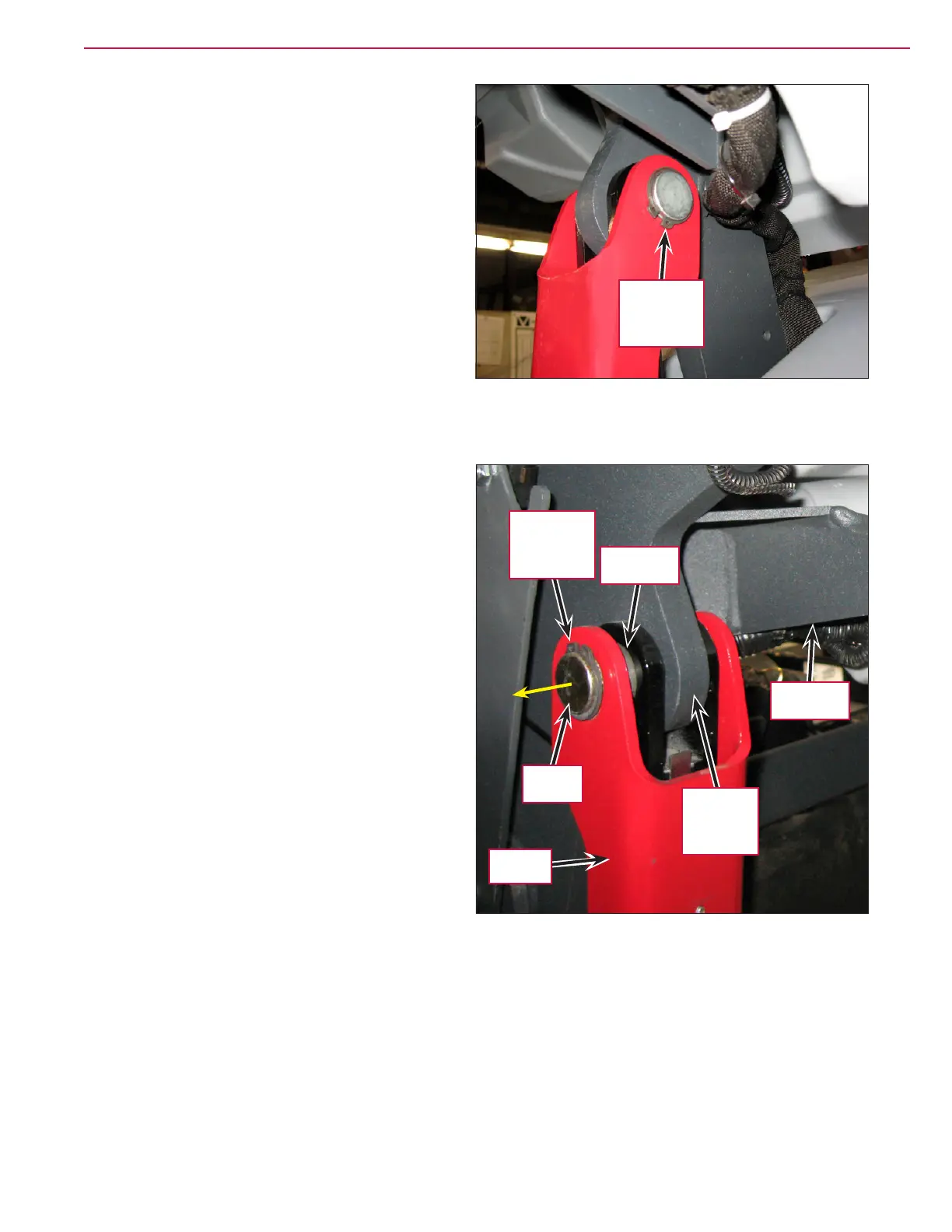

7. There are two External Retaining Rings holding

the Cylinder Pin in position. To remove the

Cylinder Pin, remove the External Retaining Ring

next to the Frame Weldment as shown.

8. Support the hopper lift cylinder and hopper

prop rod. Then remove the Cylinder Pin

External

Retaining

Ring (remove)

External

Retaining

Ring (do not

remove)

Flange

Bearing (2)

Frame

Weldment

Cylinder

Remove

Sleeve

Bearing

(inside

weldment)

Hopper

Prop Rod
