Steering System 374Service Manual – CS7000

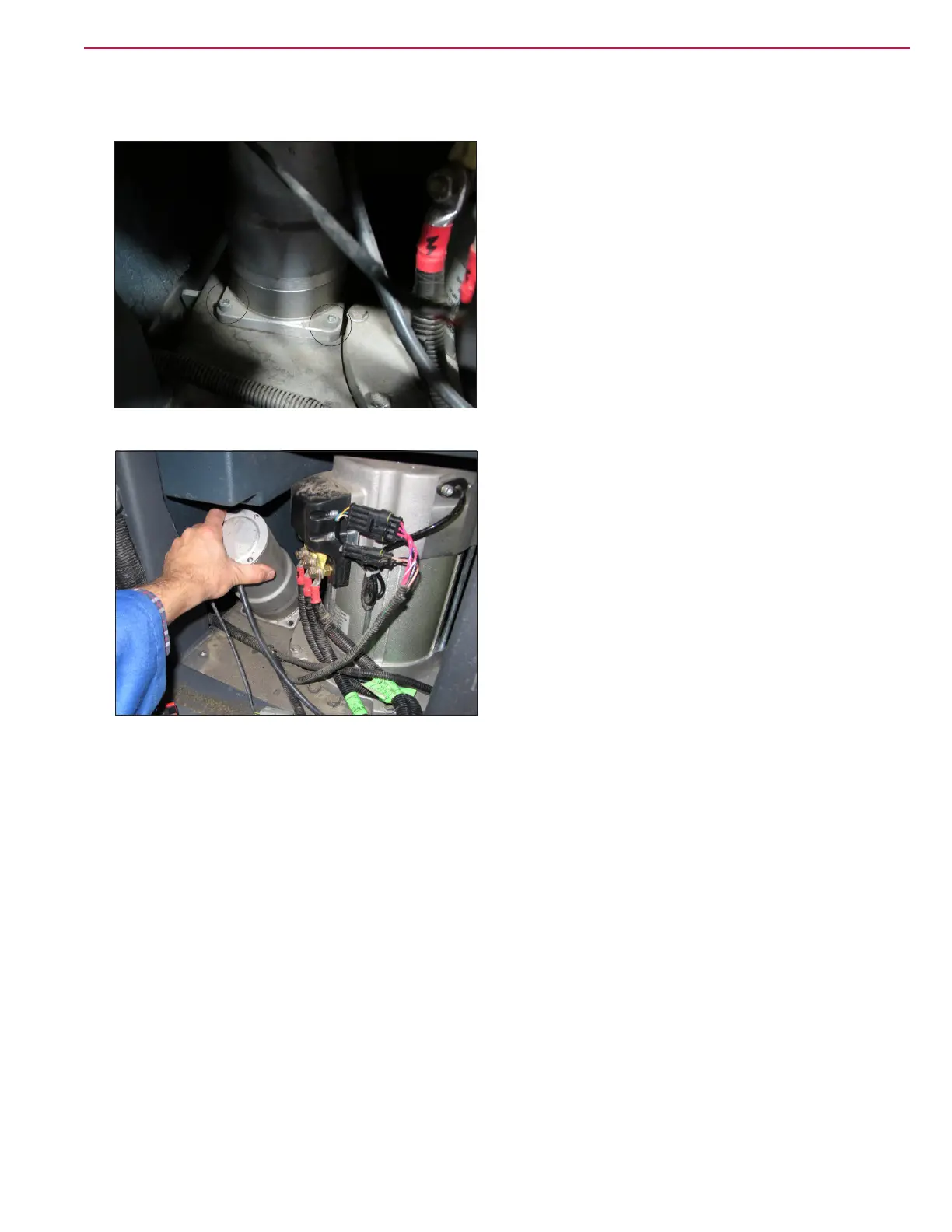

6. Remove the three screws securing the controller mounting bracket to the frame, then remove the

assembly.

7. Disconnect the steering actuator encoder connector.

8. Remove the four steering actuator mounting bolts.

9. Remove the steering actuator.

10. Reassemble in reverse order.
