Sweep System, Side Broom 400Service Manual – CS7000

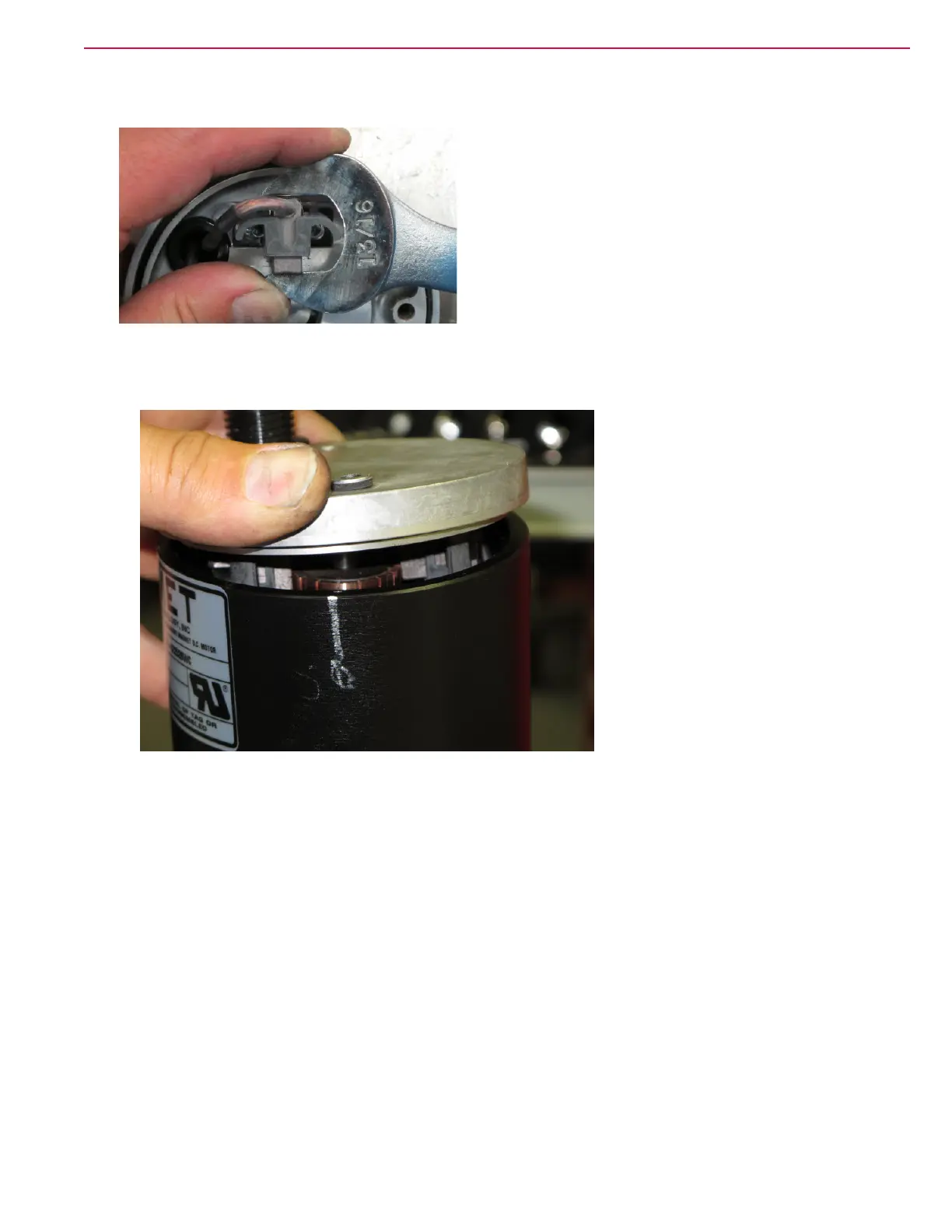

5. Inspect the carbon brushes and replace as necessary. New brush length is approximately 13/16” (20

mm)

6. Reinstall the cover with O-ring in place.

a. Gently pry the carbon brushes back against their springs just far enough to slip them over the

commutator.

b. Gently slide the cover into place and align the witness marks made earlier.

7. Reinstall the through bolts and tighten the wire retaining nut.
