Oce PlotWave 340 Operation Guide

Make a half size copy
Introduction
When you want to scale your original to a 50% copy, you can select a preset on the user panel.
Procedure
1.
Feed the original face up and centred on the original feeding table.
2.

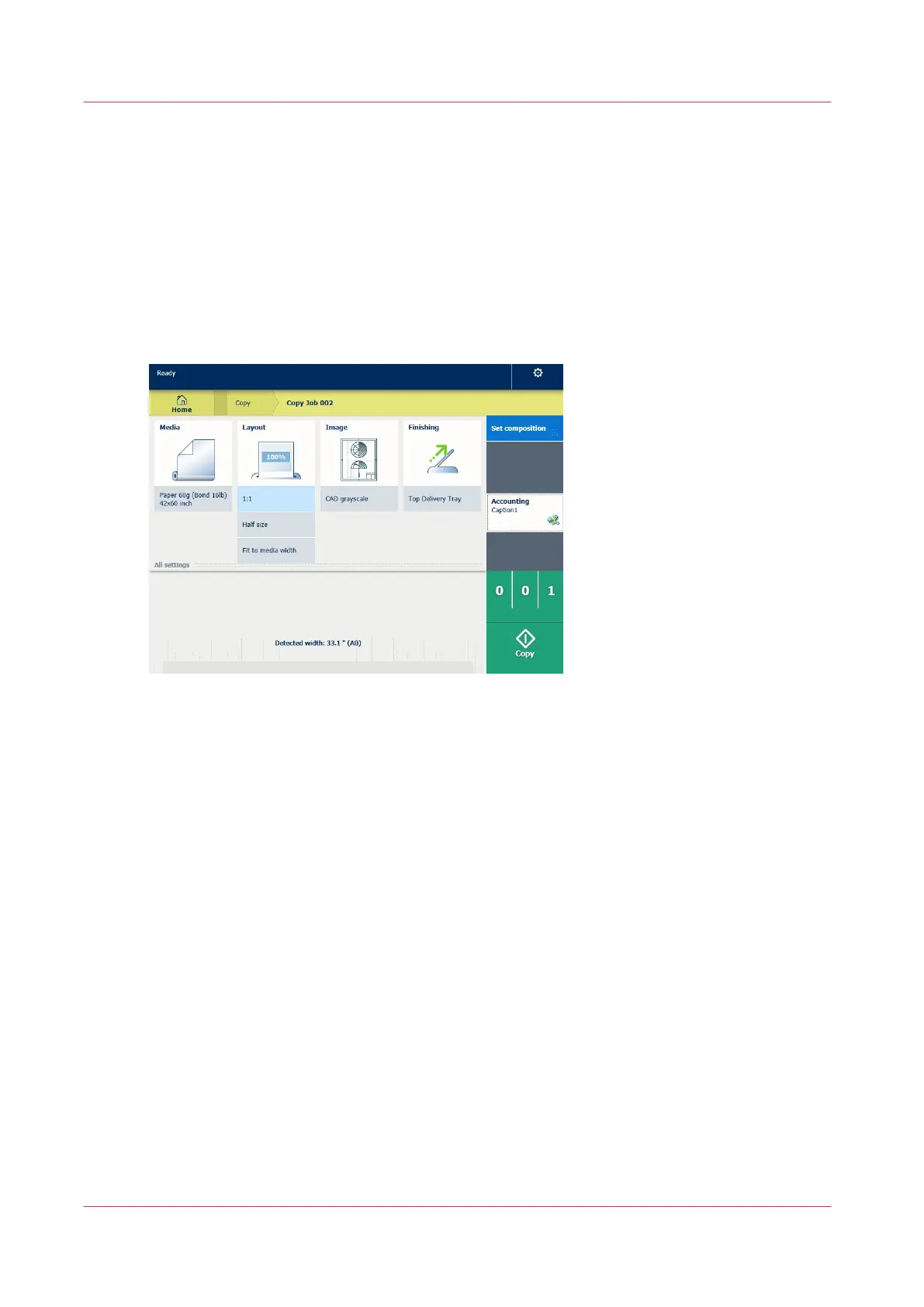

Tap the copy tile. A window with a list of presets opens.
3.
Tap the [Layout] preset.
4.
Tap [Half size].
5.
Define the number of copies and tap the green button.
Result
The printer copies to 50%.
Make a half size copy
200
Chapter 4 - Use the Printing System

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
