Maintain the Scanner
Clean the scanner
Introduction

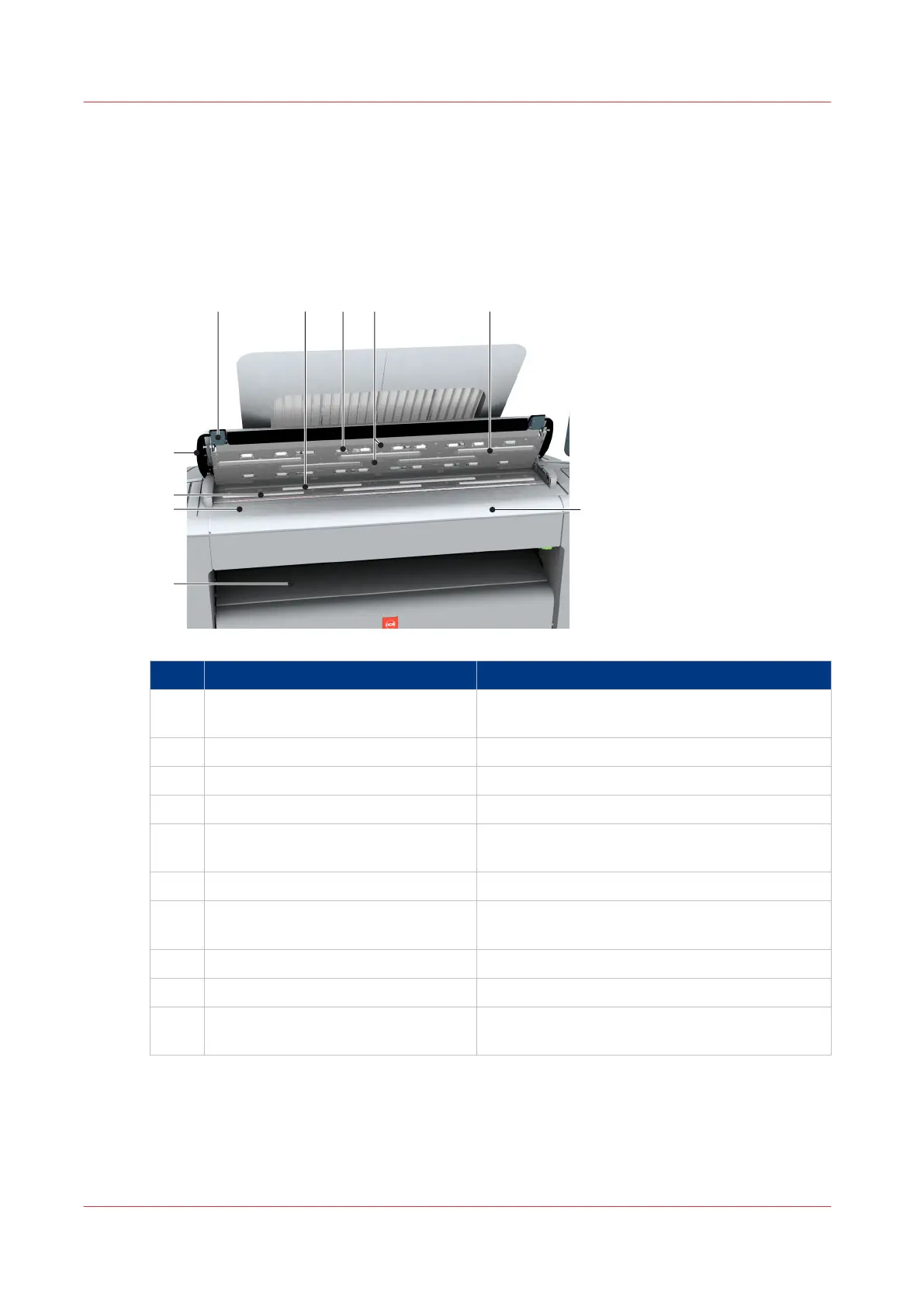

Component Description / Function
1 [originals exit] Exits originals for reception into the front origi-
nal tray.
2 [original size ruler] Use this ruler to measure the original.
3 [original feed rollers] A set of rollers used to transport the original.
4 [scanner top cover] Top cover of the scanner.
5 [scanner open levers] Two levers (left and right) to open the top cover
of the scanner.
6 [original support rollers] A set of rollers to guide the original.
7 [scanner top cover rollers] A set of rollers in the top cover to guide the orig-
inal.
8 [original sensors] Sensors to detect the original.
9 [transparent contact plates] Cover of the image sensors.
10 [original feeding table] Use this table to feed the original into the scan-
ner.
When to do
The copy and scan quality can decrease if:
• the [transparent contact plates] are dirty or static,
• the [original support rollers] are dirty, and you use transparent originals.
