Oce PlotWave 340 Operation Guide

Clear an original jam in the scanner
Introduction
When an original jam occurs in the scanner, the message [Scanner original jam] appears on the
user panel. You must remove the original from the scanner. Follow the steps in the wizard on the
user panel to clear the jam.
When an original jam often occurs:
• Check if you used the correct type of original.
• Check if you have to use a carrier sheet.
• Check if the original is damaged before you insert it.
Procedure
1.

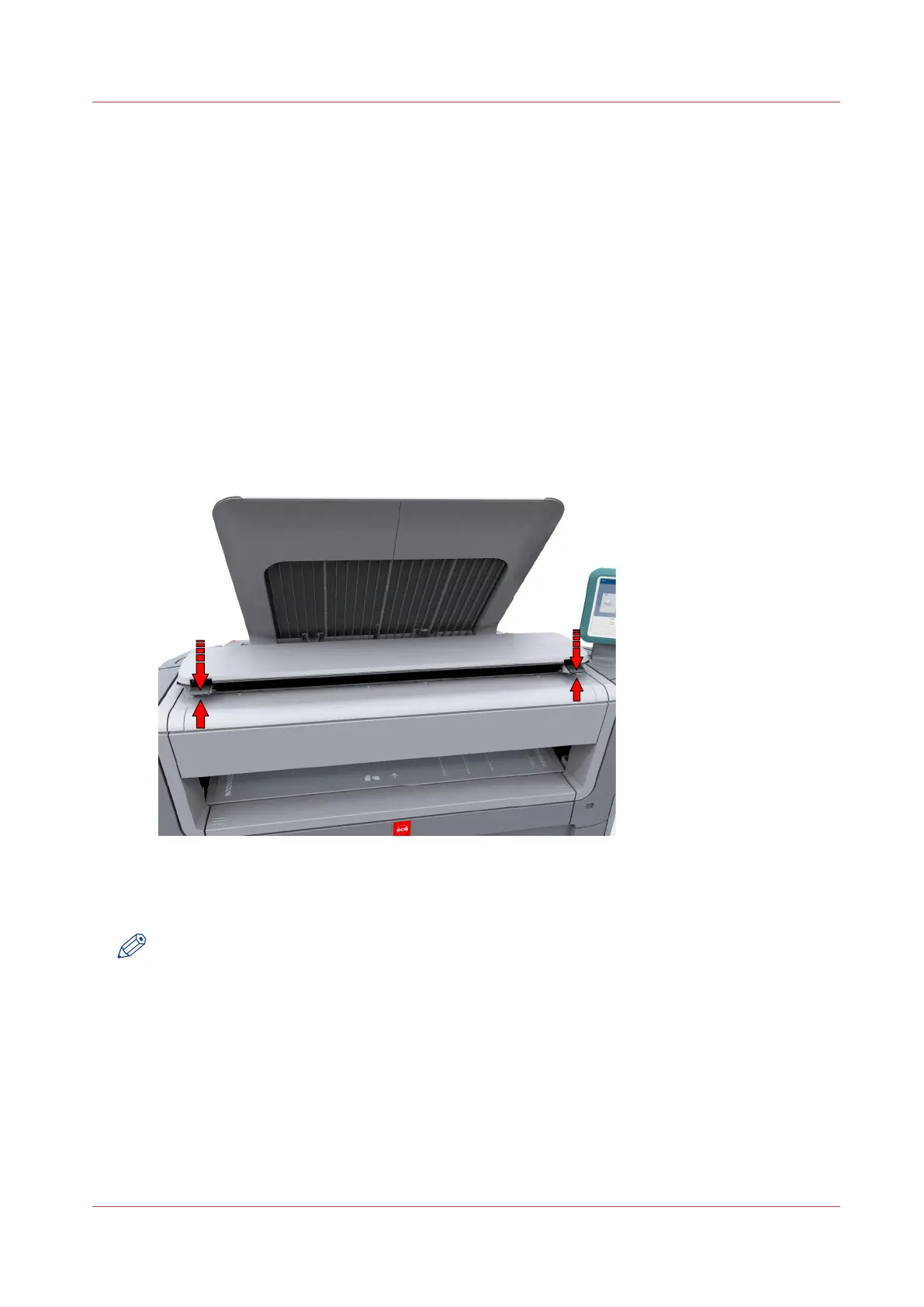

Use both hands to push up the left and right scanner open levers to fully open the scanner top
cover.
A locking mechanism prevents the scanner top cover from closing.
2.
Remove the original.
Pull the original from the scanner, or from the originals exit at the front.
3.
Press the scanner top cover down gently with both hands to close it.
NOTE
Check that the left and right scanner open levers are locked into position.
4.
Smoothen the original, and feed the original.
Clear an original jam in the scanner
Chapter 8 - Support
311

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
