Oce PlotWave 340 Operation Guide

4.
Check if the level indicator arrow is exactly on the middle of the marker.
If no, continue with step 5.
If yes, continue with step 9.
5.

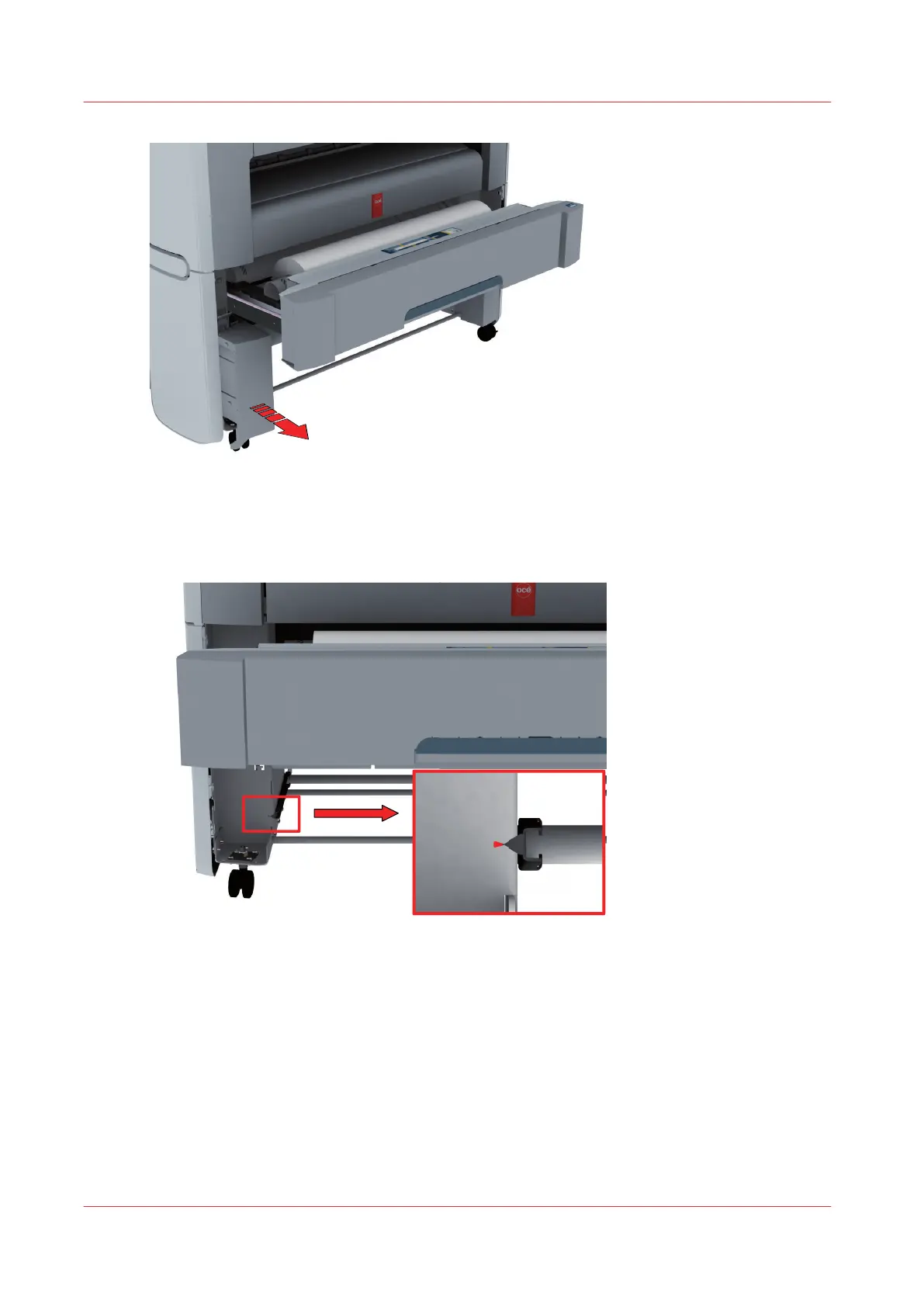

Slide the lower right front cover (11) to remove it, and get access to the tools you need for the
adjustment procedure.
Move and re-adjust the printing system
250
Chapter 5 - Maintain the Printing System

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
