Oce PlotWave 340 Operation Guide

3.

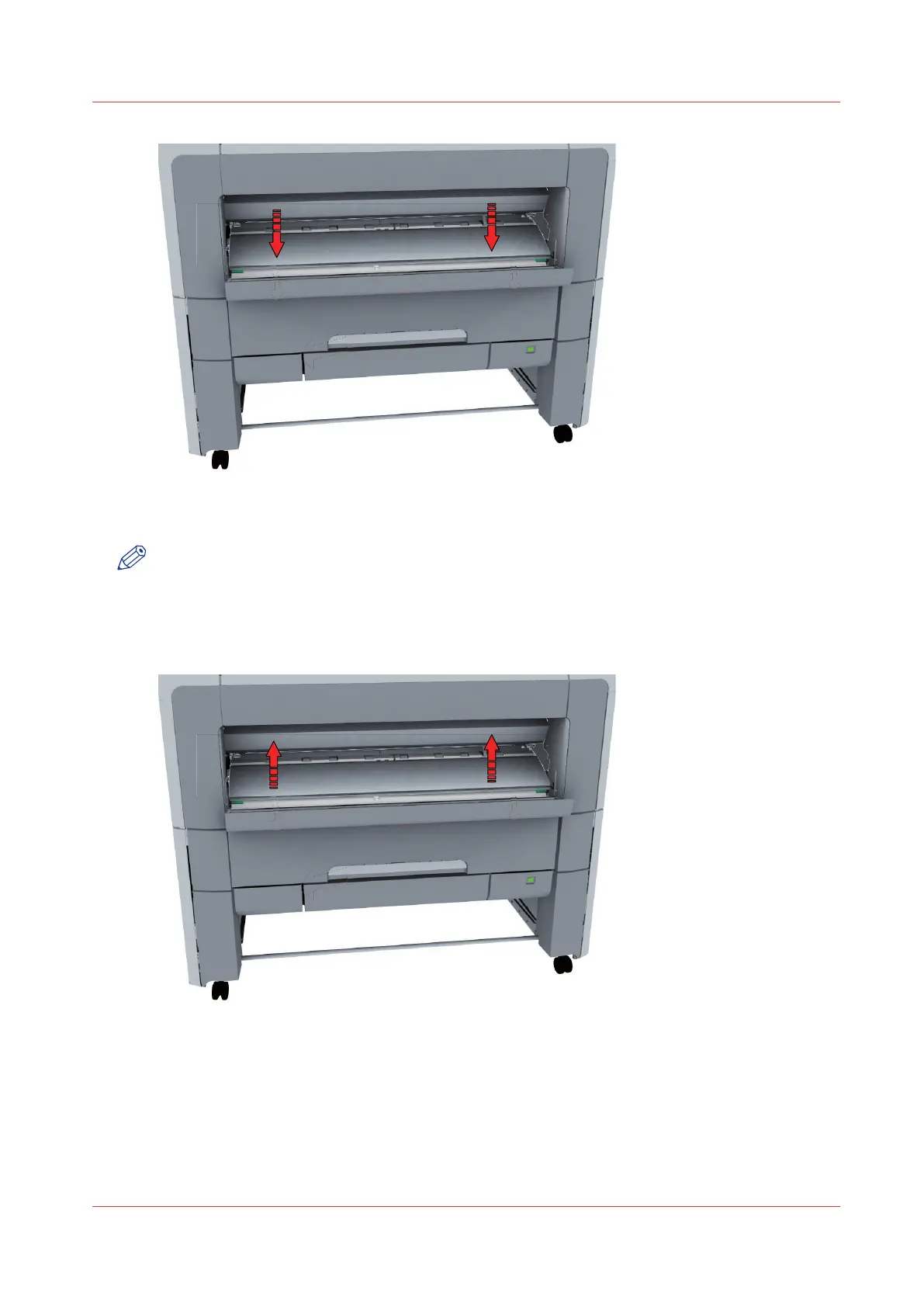

Remove any jammed media.
NOTE
When the material cannot be removed easily, open the upper back cover with the media jam
clearance handle to access to the jammed material. For more information, see Clear a media jam
in the heater section on page 312).
4.
Pull up the media bypass.
5.
Close the lower front cover.
Clear a media jam in the media bypass section
Chapter 8 - Support
315

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
