Omron R88D-1SN ECT Series User Manual

3 - 85
3 Specifications
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
3-4 Cable and Connector Specifications
3

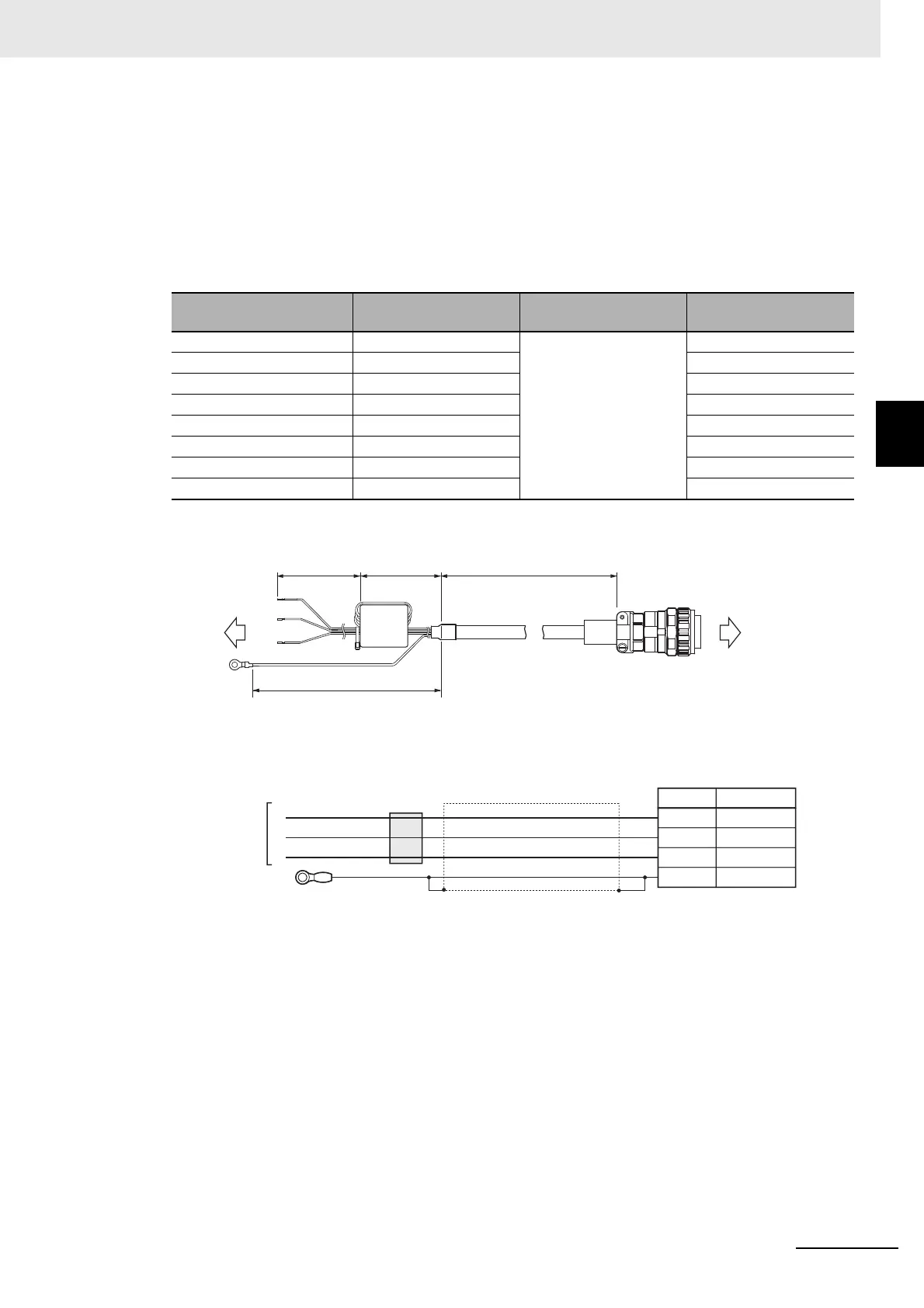

3-4-2 Motor Power Cable Specifications
 R88A-CA1BS
Applicable Servomotors
200 V:
3,000-r/min Servomotors of 1 kW, 2,000-r/min Servomotors of 1 kW, and 1,000-r/min Servomotors
of 900 W
Cable types
Connection configuration and external dimensions [mm]
Wiring
Model Length [L]
Outer diameter of
sheath
Weight
R88A-CA1B003S 3 m 10.8 dia. Approx. 1.0 kg
R88A-CA1B005S 5 m Approx. 1.6 kg
R88A-CA1B010S 10 m Approx. 2.9 kg
R88A-CA1B015S 15 m Approx. 4.3 kg
R88A-CA1B020S 20 m Approx. 5.7 kg
R88A-CA1B030S 30 m Approx. 8.4 kg
R88A-CA1B040S 40 m Approx. 11.1 kg
R88A-CA1B050S 50 m Approx. 13.8 kg
60 (80)
150
E04SR301334 (SEIWA
ELECTRIC MFG CO. Ltd)
Servo Drive side
Servomotor side
R88M-1
Ferrite core
L
Two turns on the ferrite core
R88D-1SN
Symbol
A
B
C
DFG
AWG16 × 4C UL2586
JL10-6A20-4SE-EB
JL04-2022CK(12)-R
Servo Drive side
M4 Crimp terminal
Ring terminal (NICHIFU) R5.5-4
F(Z) (SUMITOMO ELECTRIC
FINE POLYMER, INC.)
+
Ferrite core
E04SR301334 (SEIWA
ELECTRIC MFG CO. Ltd)
Cable
Servomotor side
Name
Phase U
Phase V
Phase W
Servomotor side connector
Connector
Clamp
(Japan Aviation Electronics)
(Japan Aviation Electronics)
Blue
Red
White
Green/Yellow
Semi-strip

Omron R88D-1SN ECT Series Specifications

General

Feedback	Incremental encoder, Absolute encoder
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Communication Interface	EtherCAT
Power Supply Voltage	200 to 240 VAC
Output Power	0.1 to 1.5 kW
Input Voltage Range	170 to 264 VAC
Control Method	Sine-wave PWM control
Main Circuit Power Supply	200-240 VAC
Applicable Motor Capacity	0.1 to 1.5 kW
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder Error
Ambient Operating Temperature	0 to 55°C
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
Shock Resistance	98 m/s2
Weight	Varies by model
