3 Specifications
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
3-4 Cable and Connector Specifications
3
3-4-2 Motor Power Cable Specifications

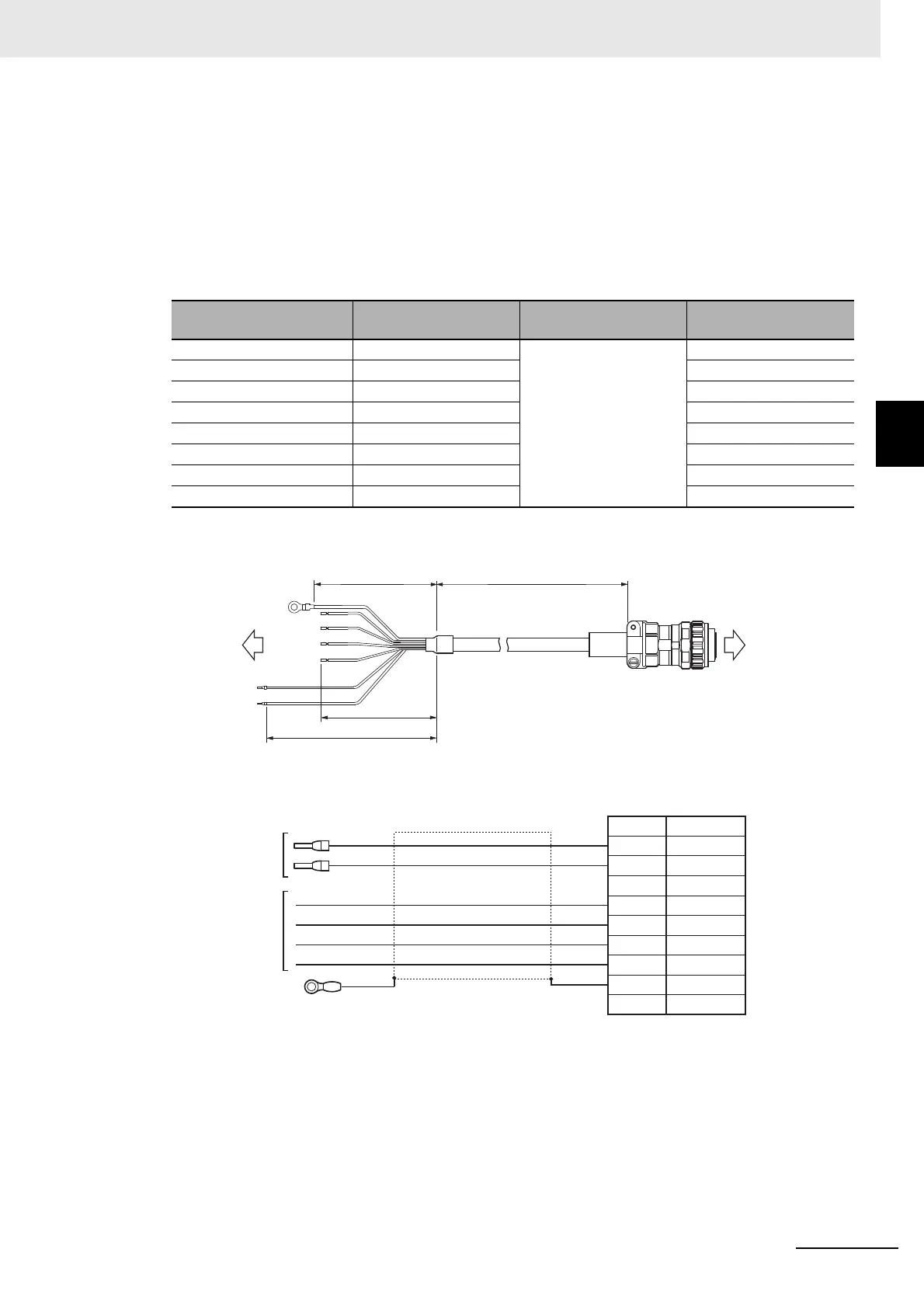

 R88A-CA1CB
Applicable Servomotors
200 V:
3,000-r/min Servomotors of 1.5 kW
2,000-r/min Servomotors of 1.5 kW
Cable types
Connection configuration and external dimensions [mm]
Wiring
Model Length [L]
Outer diameter of
sheath
Weight
R88A-CA1C003B 3 m 12.5 dia. Approx. 1.2 kg
R88A-CA1C005B 5 m Approx. 1.9 kg
R88A-CA1C010B 10 m Approx. 3.5 kg
R88A-CA1C015B 15 m Approx. 5.1 kg
R88A-CA1C020B 20 m Approx. 6.7 kg
R88A-CA1C030B 30 m Approx. 10.0 kg
R88A-CA1C040B 40 m Approx. 13.2 kg
R88A-CA1C050B 50 m Approx. 16.5 kg
Servo Drive side
R88D-1SN
Servomotor side
R88M-1
L175
180
170
Ferrule 216-201
(WAGO)
I
B
E
D
C
FG
FG
NC
Symbol
G
H
A
F
NC
AWG16 × 4C UL2586
AWG20 × 2C UL2586
JL10-6A20-18SE-EB
JL04-2022CK(12)-R
+
Blue
Red
White
Green/Yellow
Green/Yellow
Black
Servo Drive side
F(Z) (SUMITOMO ELECTRIC
FINE POLYMER, INC.)
M4 Crimp terminal
Ring terminal
(NICHIFU) R2-4
Cable
Servomotor side connector
Connector
Clamp
(Japan Aviation Electronics)
(Japan Aviation Electronics)
Servomotor side
Name
Phase U
Phase V
Phase W
Brake
Brake
Black
Semi-strip
Ferrule
216-201
(WAGO)

Omron R88D-1SN ECT Series Specifications

General

Feedback	Incremental encoder, Absolute encoder
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Communication Interface	EtherCAT
Power Supply Voltage	200 to 240 VAC
Output Power	0.1 to 1.5 kW
Input Voltage Range	170 to 264 VAC
Control Method	Sine-wave PWM control
Main Circuit Power Supply	200-240 VAC
Applicable Motor Capacity	0.1 to 1.5 kW
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder Error
Ambient Operating Temperature	0 to 55°C
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
Shock Resistance	98 m/s2
Weight	Varies by model
